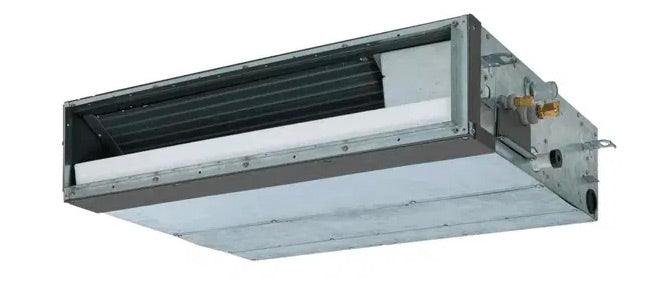

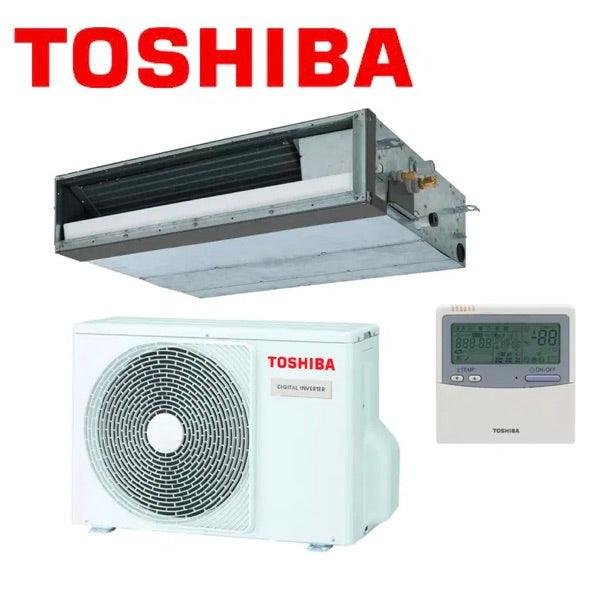

Toshiba Mid Static Digital Inverter Ducted System 12.5kW | RAV-GM1401BTP-A / RAV-GM1401ATP-A

Take control of your indoor climate quietly, effectively and inconspicuously with a Toshiba Inverter Ducted system. Toshiba ducted systems have been designed to be installed into new homes or tailored to an existing home. Through one system, you can keep the temperature of your bedroom cool and inviting; your kids’ room comfortable for their daily activities and much more. Turning your whole house into an integrated cooling and heating machine is the ultimate in weather-defying comfort and with Toshiba’s refinement in product design, it also brings forth several benefits.
Specifications
Indoor Model
RAV-GM1401BTP-A

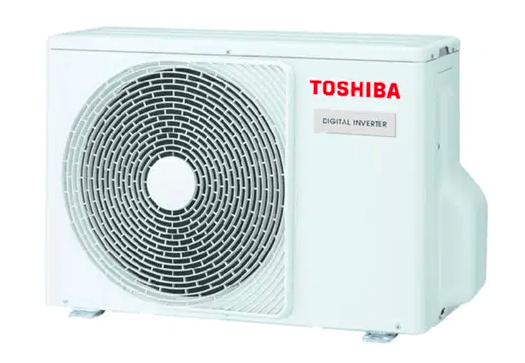

Outdoor Model
RAV-GM1401ATP-A
Cooling Capacity (Range)
kW
12.5 [3.0 – 14.0]
EER
3.10
Heating Capacity (Range)
kW
14.0 [3.0 – 16.0]
COP
3.61
Maximum Operating Current
A
26.00
Air flow (H / M / L)
l/s
611 / 513 / 416
External Static
Pa
50 – 200
Dimensions – Indoor (H x W x D)
mm
275 x 1400 x 750
Dimensions – Outdoor (Hx W x D)
mm
890 x 900 x 320
Weight – Indoor / Outdoor
kg
41 / 68
Sound Pressure Level Indoor / Outdoor
dB(A)
41 / 57
Operating Range Cooling
°C db
-15 to 46
Operating Range Heating
°C db
-15 to 24
Pipe Sizes (Liquid / Gas)
mm
9.52 / 15.88
Maximum Pipe Length / Lift
m
50 / 30
Maximum Pre-charged Length
m
30
Power Supply
1ph/220-240V/50Hz
