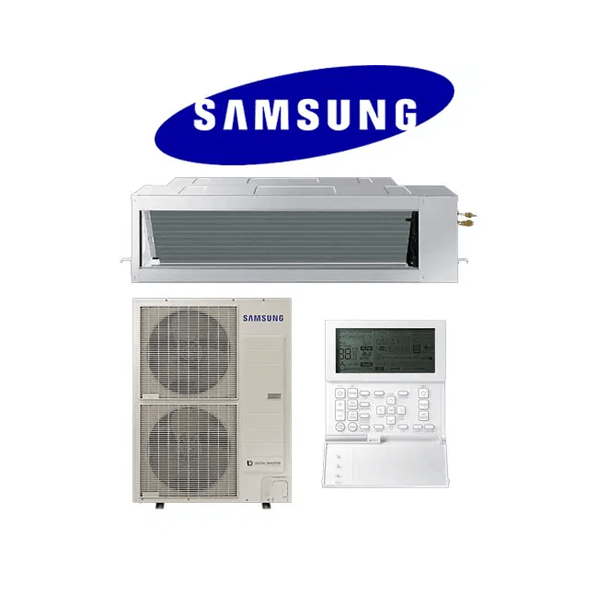

SAMSUNG AC120TNHPKG/SA / AC120TXAPNG/SA 12.5kW Ducted S2+ Inverter Air Conditioner System 3 Phase

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian Stock No Factory Seconds Full Australian Manufacturer’s Warranty Secure Online Payments
Specifications
Ê Model Name System
Indoor unit
AC120TNHPKG/SA
Outdoor unit
AC120TXAPKG/SA
Ê Capacity
Cooling (Min/Std/Max)
kW
5.2 / 12.5 / 16.5
Heating (Min/Std/Max)
kW
3.8 / 15.0 / 19.0
Ê Ê Efficiency
Energy grade (Cooling)
EER
3.60
Energy grade (Heating)
COP
3.90
Energy grade (Cooling)
AEER
3.60
Energy grade (Heating)
ACOP
3.89
Ê Electrical
MCA
A
35.1
MFA
A
40.0
Ê Ê Ê Ê Ê Ê Indoor Unit
Power supply
_, #, V, Hz
1-phase, 220-240V, 50Hz
Airflow rate (H, M, L)
l/s
900 / 750 / 600
ESP (L,M,H)
Pa
0 / 61 / 150
Sound pressure @ 1.5m (H/L)
dB(A)
44 / 39 / 34
Supply air opening (WxH)
mm
1154 x 243
Return air opening (WxH)
mm
2 x spigot, each spigot to suit ø16î (ø400mm) round flexible duct
Net weight
kg
66.5
Unit dimensions (WxHxD)
mm
1350 x 360 x 899
Drain connection size
mm
OD 32 / ID 25
Drain pump (sold separately)
MDP-G075SP (external type), MDP-G075SQ (internal type)
Ê Ê Ê Outdoor Unit
Power supply
_, #, V, Hz
1-phase, 220-240V, 50Hz
Type
Rotary
Sound pressure @ 1m (Cool/Heat)
dB(A)
53 / 55
Sound power (Cooling High)
dB(A)
69
Net weight
kg
100.5
Net dimensions (WxHxD)
mm
940 x 1420 x 330
Ê Ê Ê Installation
Liquid pipe
mm, inch
9.52, 3/8_
Gas pipe
mm, inch
15.8, 5/8_
Max. allowable piping length
m
85
Max. allowable piping height (outdoor above indoor)
m
30
Pre-charged length
m
30
Ê Operating Range
Cooling
C
-15 to 50
Heating
C
-20 to 24
Features
Powerful Airflow with more fans than ever The strong and robust construction of our Duct S2+ Indoor Unit brings a maximum of 25% more air-volume than our standard model* meaning you stay comfortable in all parts of your home. Energy Superstar Low Running Cost The Duct S2+ is a highly energy efficient system. For an equivalent airflow, it uses less energy*. This leads to a low running cost meaning you can use your Ducted system all day long without a hefty bill! Easy to Install Lightweight and Compact Our Duct S2+ Indoor Units are designed to meet the needs of Australian homes. A lightweight and compact design with a quality finish makes the Duct S2+ easy to maneuver into any space. Innovative Design Splittable and Tapered The Duct S2+ splittable type indoor unit can separate the fan and heat exchanger section, making it easier to position into tight roof space perfect for renovations. The Duct S2+ indoor unit has a tapered fan motor section that fits in between roof trusses. Combined with hanging brackets positioned to minimise obstruction, installation has never been this easy. Quiet, High Performance Twin BLDC Compressor and Auto ESP With a rotary compressor and auto ESP the Duct S2+ heats and cools your spaces in a matter of minutes and maintains optimal air-volume automatically. Able to function in areas with outside air temperatures between _15C to 50C for cooling and _20C to 24C for heating, enjoy maximum comfort in any Australian environment. Hello R32 Refrigerant! Low GWP (Global Warming Potential) refrigerant Samsung has added the new eco-friendly R32 refrigerant to its air conditioning range. R32 Refrigerant has a low Global Warming Potential (GWP)* and a zero Ozone Depletion Potential (ODP) effect which helps to protect the ozone layer! Cool your home from anywhere Wi-Fi and the SmartThings app Connect your Samsung Ducted AC to your WiFi network using Wi-Fi kit MIM-H04AN, (sold separately). Control your home air conditioner from anywhere, at any time using the Samsung SmartThings App. You can control and monitor the air conditioner remotely with just a touch. The Wi-Fi kit helps you to centrally control your Samsung TV, appliances and other compatible smart devices. All you need to do is download the Samsung Smart Home App* to easily check the list of connected compatible devices, name and status.
Description
12.5 kW Cooling 15.0 kW Heating R32 | Splittable Indoor
