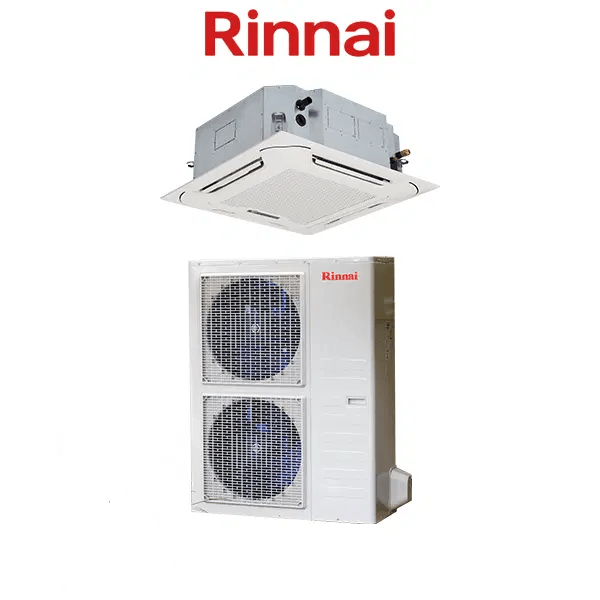

Rinnai CSN100R 10.0kW Inverter Cassette System

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!Shop with Confidence Brand new Australian Stock No Factory Seconds Full Australian Manufacturer’s Warranty Secure Online Payments Specifications Technical Specifications SYSTEM 100 Nominal Capacity kW 10 Power Supply (To Outdoor Unit) V- Ph-Hz 220~240 1 50 Maximum Input Power W 3900 Maximum Input Current A 21.0 Recommended Circuit Breaker Size 25 Cooling Rated Capacity kW 10.3 Capacity Range 4.0 ~ 12.6 Rated Input Power W 3110 Stand By Power 10 Rated Input Current A 13.7 AEER W/W 3.26 Star Rating _ 2.0 Heating Rated Capacity kW 10.4 Capacity Range 4.2 ~ 12.9 Rated Input Power W 2980 Stand By Power 10 Rated Input Current A 13.1 ACOP W/W 3.46 Star Rating _ 2.0 Indoor Unit CIN100R Fascia Panel Model No. CINFAS Rated Input W 250 Air Flow (Hi / Med / Lo) L/s 639 / 556 / 500 Sound Pressure Level @ 1.4m (Hi / Med / Lo) dB(A) 54 / 51 / 48 Dimensions Net Body (W x D x H) mm 840 x 840 x 287 Packing Body (W x D x H) 900 x 900 x 300 Net Fascia (W x D x H) 950 x 950 x 55 Packing Fascia (W x D x H) 1035 x 1035 x 90 Net / Gross Weight Body kg 28.7 / 32.8 Net / Gross Weight Fascia 5 / 8 Condensate Drain Pipe Diameter mm OD_32 Refrigerant Piping Liquid / Gas Connections _9.52/_15.9 Standard Controller Type Wireless Remote Operating Range oC Cooling: 17 ~ 32. Heating: 0 ~ 30 Outdoor Unit DONSR10Z72 Power Supply V- Ph-Hz 220~240 1 50 Maximum Input Power W 3900 Maximum Input Current A 21.0 Starting Current 3.0 Compressor Type Twin Rotary Air Flow L/s 1528 Sound Pressure Level @ 1m dB(A) 61 Sound Power Level 70 Dimensions Net (W _ D _ H) mm 946 x 410 x 810 Packing (W x D x H) 1090 x 500 x 865 Net / Gross Weight kg 68.5 / 74 Refrigerant Piping Type R410A Charged Volume kg 3.80 Design Pressure MPa 4.2 / 1.5 Pre-Charged Length m 15 Charge Adjustment (Add or Remove) g/m 30 Refrigerant Piping Liquid / Gas Connections mm _9.52 / _15.9 Maximum Pipe Length m 65 Maximum Vertical Separation 30 Features360 Air Flow The 360 Airflow Fascia ensures optimal air distribution and total comfort in every corner of the room. Auto Restart Function In the event of the power failure, the system will stop immediately. When the power returns, restart the systems and the unit will restart at the same settings. Heating and Cooling All year-round comfort, with full temperature control suited to your needs Infrared Remote Control Operation is via an attractive, ergonomically designed infrared remote control which incorporates a high visibility LCD display. An optional upgrade to the Rinnai wired programmable thermostat and Wi-Fi is also available. Wi-Fi Control* Set your favourite temperature from anywhere, with our intuitive Android or Apple App. Come home to ultimate comfort. *Wi-Fi optional High Efficiency DC Inverter More efficient that conventional electric heating, the DC inverter technology ensures a fast and controlled warm up and cool down while delivering effective energy savings. Built-In Drain Pump Cleverly engineered Built-in drain pump ensures condensed water is drained out reliably Easy Service Access The condensate drain pump is conveniently located in a separate compartment of the indoor unit providing maximum service access.Description10.3 kW Cooling 10.4 kW Heating 360 Air Flow | High Efficiency
