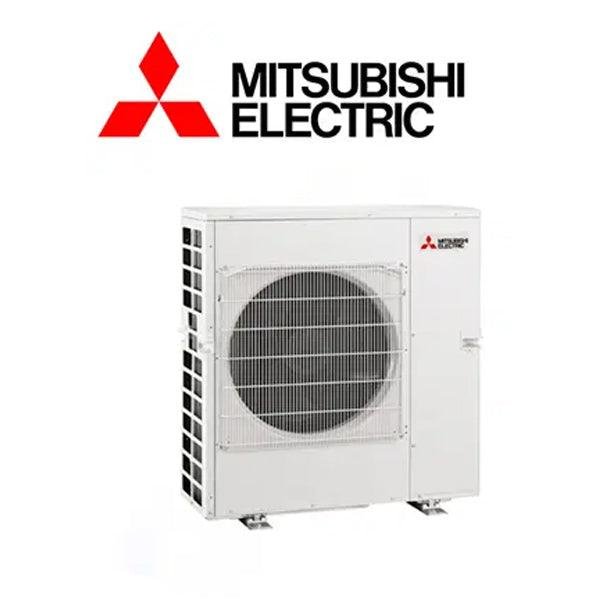

Mitsubishi Electric PUMY-SP125YKMD-AR1 14.0 kW Outdoor Unit Only

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!Shop with Confidence Brand new Australian Stock No Factory Seconds Full Australian Manufacturer’s Warranty Secure Online PaymentsDescription14.0 kW Cooling 16.0 kW Heating Single Fan Heat Pump VRF O/USpecifications MODEL PUMY-SP125YKMD Power Source 3-phase 380-400-415 V, 50Hz; 3-phase 380 V, 60 Hz Cooling Capacity (Nominal) *1 kW 14.0 *1 BTU/h 47,768 Power Input kW 3.84 Current Input A 6.14-5.83-5.62, 6.14 AEER/EER kW/kW 3.29*3 / 3.65 Temp Range cooling Indoor Temp. WB 15 to 24C Outdoor Temp. D.W -5 to 52C *4,*5 Heating Capacity (Nominal) *2 kW 16.0 *2 BTU/h 54,592 Power Input kW 3.90 Current Input A 6.24-5.93-5.71 , 6.24 ACOP/COP kW/kW 3.56 / 4.10 Temp Range of Heating Indoor Temp W.B 15 to 27C Outdoor Temp W.B -20 to 15C Indoor Unit Connectable Total capacity 50 to 130% of outdoor unit capacity Model/ Quantity City Multi P15-P140/10 Branch Box P15-P100/8 Mixed System Branch Box 1 unit City Multi P15-P140/5 Branch Box P15-P100/5 Branch Box 2 Unit City Multi P15-P140/3 Branch Box P15-P100/8 Sound Pressure Level (Cooling/Heating) db 53/56 Sound Power Level (Cooling) db 73 Refrigerant Piping Diameter Liquid Piping Mm 9.52 Flare Gas piping Mm 15.88 Flare FAN Type x quantity Propeller Fan _ 1 Air flow rate m_/min 83 L/s 1383 Cfm 2931 External Static Pres 0Pa , 30Pa *9 Compressor Type x Quantity Twin rotary hermetic compressor _ 1 Starting method Inverter Motor Output kW 3.5 External Finish Galvanized Steel Sheet Munsell No. 3Y 7.8/1.1 External Dimensions H x W x D Mm 981 _ 1,050 _ 330 (+25) Protection Devices High Pressure Protection High pressure Switch Inverter circuit (COP/FAN) Overcurrent detection, Overheat detection (Heat sink thermistor) Compressor Compressor thermistor, Over current detection Fan motor Overheating. Voltage protection Refrigerant Type R410A Pre-Charged Quantity (kg) 3.5 kg Net weight(kg) 94 *7 Heat Exchanger Cross Fin and Copper tube Defrosting Method Reversed refrigerant circuit Optional Parts Joint: CMY-Y62-G-E Header: CMY-Y64/68-G-E Package DescriptionMini VRF Single Fan PUMY-SP The PUMY-SP series allows up to 10 indoor units to be connected to a single outdoor unit, using the standard City Multi branch pipework system or via branch boxes to connect M Series and Mr Slim indoor units. This makes it an economic and efficient answer for multi-room applications, whilst also offering space saving benefits. Each size is available in both single and three phase options. Compact and out of sight The Mini VRF Single Fan PUMY-SP compact design has a reduced footprint with a 27% reduction in height and 25% reduction in weight, allowing it to be installed in more confined spaces compared to the dual fan model. The reduced height (less than one metre) makes this unit suitable for installation on balconies. The weight reduction makes the unit easier facilitates easier installation and transportation. Flexible connection The outdoor unit allows piping from any four directions; front, back, bottom, or right. This enables easier horizontal connection for collective layout. The outdoor unit with an expanded piping layout improves piping workability. Super quiet mode* Noise level can be reduced up to 10dB(A). This allows you to operate the unit even in the night in a residential zone. * Capacity reduction differs by mode setting. PAC-SC36NA-E is required to activate Super Quiet mode by external input. External static pressure of 30Pa The installation location is flexible, thanks to the 30Pa static pressure. An external static pressure of 30Pa allows outdoor unit to be installed on balconies in high-rise building or spaces near louvers. Energy efficiency Despite its compact size and low weight, the new Mini VRF Single Fan PUMY-SP features high efficiency. Connectivity Mini VRF Single Fan PUMY-SP single-fan units can be connected to the indoor units of Residential M Series and Commercial Mr Slim and CITY MULTI series using PAC-MK-BC branch boxes. It’s possible to mix and match Residential and Commercial indoor units, providing great flexibility for solving system design challenges.
