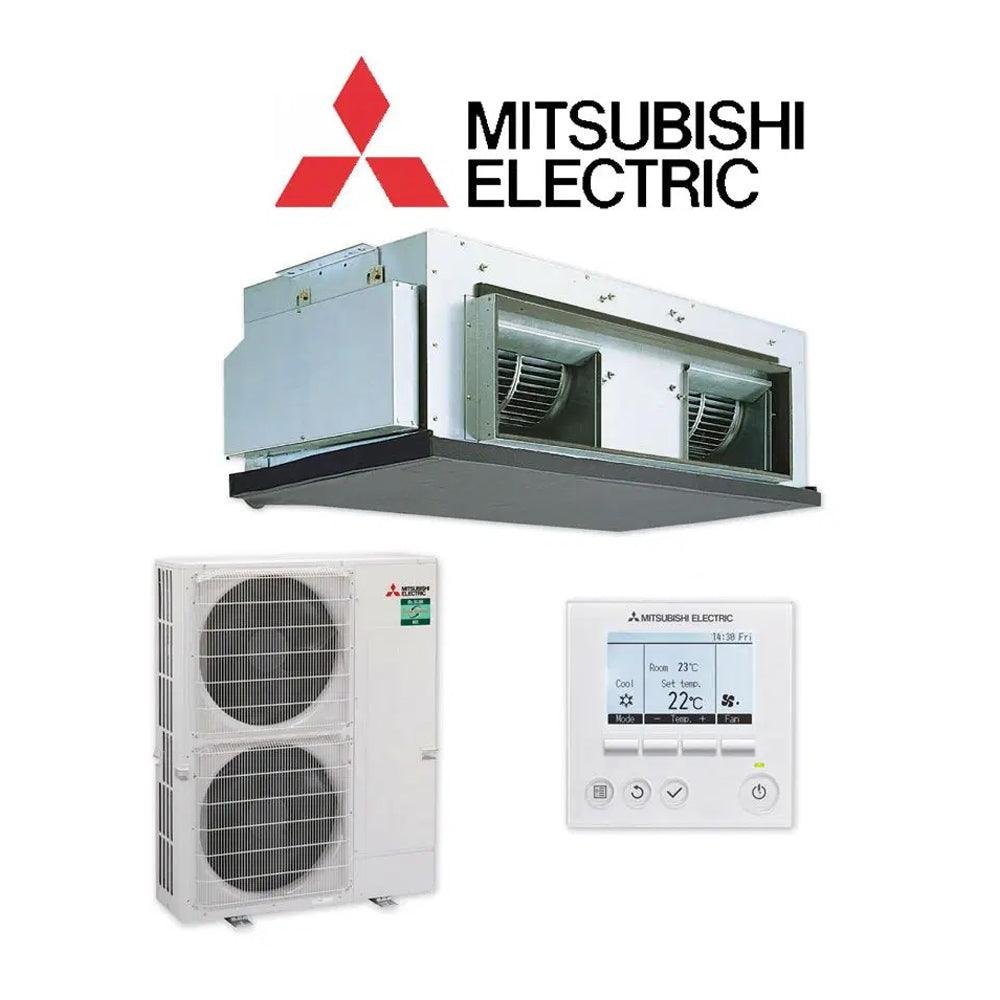

MITSUBISHI ELECTRIC PEAMS140GAAVKIT 14.0kW Ducted Air Conditioner System 1 Phase

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Specifications
Ceiling-Concealed (PEA-M/ZM Series)
Indoor Unit
PEA-M140GAA
Outdoor Unit Ê Refrigerant
PUZ-M 140VKA
R32
Ê Ê Power Supply
Source
Outdoor power supply
Ê Outdoor
V: 230V, Single-phase, 50Hz
Indoor
_
Ê Ê Ê Ê Ê Ê Cooling Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Heating
Capacity [Min-Rated-Max]
(kW)
6.2-14.0-15.3
Total Input [Rated]
(kW)
4.22
AEER/EER
3.31 / 3.22
AEER [Part-load %] *1
_
Ê Running Current [Rated]
Ê A
Ê 20.4
Sound
In (Lo-Mid-Hi)
Ê dB(A)
42 45
Pressure Level
Out (PWL)
53 (71)
Air Volume (In) Lo-Mid-Hi L/S
800 1000
Capacity [Min-Rated-Max]
(kW)
5.7-16.0-18.0
Total Input [Rated]
(kW)
4.20
ACOP/COP *3
3.80 / 3.69
Running Current [Rated]
(mm)
20.3
Sound Pressure
In (Lo-Mid-Hi)
dB(A)
42 45
Level
Out (PWL)
dB(A)
54 (72)
Air Volume (In) Lo-Mid-Hi
800 1000
Max. Running Current
A
30.86
Input [Rated]
kW
0.49 / 0.49
Indoor Unit
Dimensions [HxWxD]
mm
400 _ 1400 _ 634
Weight
kg
63
Static Pressure
Pa
50 / 100 / 150
Ê Outdoor Unit
Dimensions [HxWxD]
mm
1338 _ 1050 _ 330 (+40)
Weight
kg
99
Breaker Size
A
40
Ext. Piping
Diameter [Gas/Liquid]
mm
15.88 / 9.52
Max. Length/Height
m
55 / 30
Guaranteed Operating Range [Outdoor]
Cooling *2
C
-5 (-15) ~ 46
Heating
C
-15 ~ 21
Supply Air Duct
mm
921 x 250
Return Air Duct
mm
1102 x 330
Precharge Refrigerant
kg
4 (55m)
Additional Refrigerant
Per M (g)
_
Shop with Confidence
Brand new Australian Stock
No Factory Seconds
Full Australian Manufacturer’s Warranty
Secure Online Payments
Description
14.0 kW Cooling 16.0 kW Heating PAR-40MAA Backlit Controller | New Model
14kW ducted air conditioner price
14kW ducted air conditioners can cost anywhere from $4,000 to $15,000.
