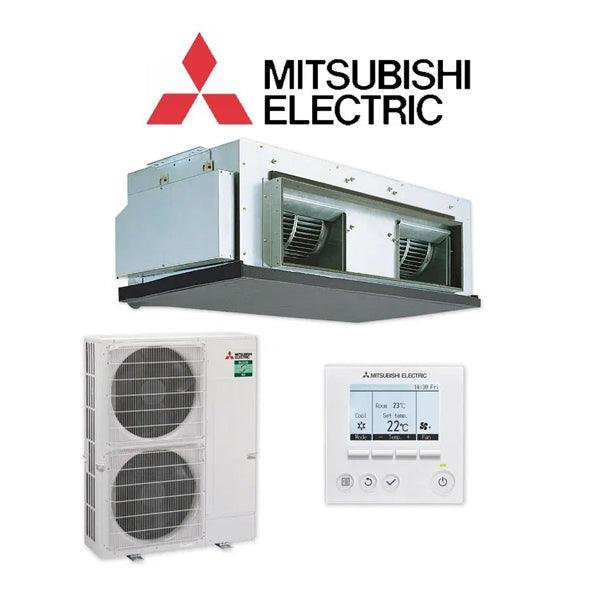

MITSUBISHI ELECTRIC PEAM125GAAVKIT 12.5kW Ducted Air Conditioner System 1 Phase

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!Specifications Kit PEAM125GAAVKIT Indoor Unit PEA-M125GAA Outdoor Unit PUZ-ZM125VKA-A Power Supply V / À / Hz 230 / 1 / 50 Cooling Capacity min nominal max kW 5.5 12.5 14.0 Total input kW 3.52 AEER/EER 3.45 / 3.55 Running current (Rated) A 16.0 Sound Pressure Level In (Lo Mid Hi) dB(A) 42 45 Out dB(A) 50 Air Volume (In) Lo Mid Hi L/s 800 1000 Heating Capacity min nominal max kW 5.0 14.0 16.0 Input kW 3.27 ACOP/COP 4.15 / 4.28 Running current (Rated) 15.4 Sound Pressure Level In (Lo Mid Hi) 42 45 Out 52 Air Volume (In) Lo Mid Hi 800 1000 Max. Running Current A 31.86 Indoor Unit Dimensions H x W x D mm 400 x 1400 x 634 Weight kg 63 Outdoor Unit Dimensions H x W x D mm 1338 x 1050 x 330 Weight kg 113 Refrigerant Pipe size Liquid mm À9.52 Gas mm À15.88 Max. Piping Height m 30 Max. Piping Length m 75 Operating Range Cooling C -5(-15) 52 Heating C -20 21 Description12.5 kW Cooling 14.0 kW Heating PAR-40MAA Backlit Controller
