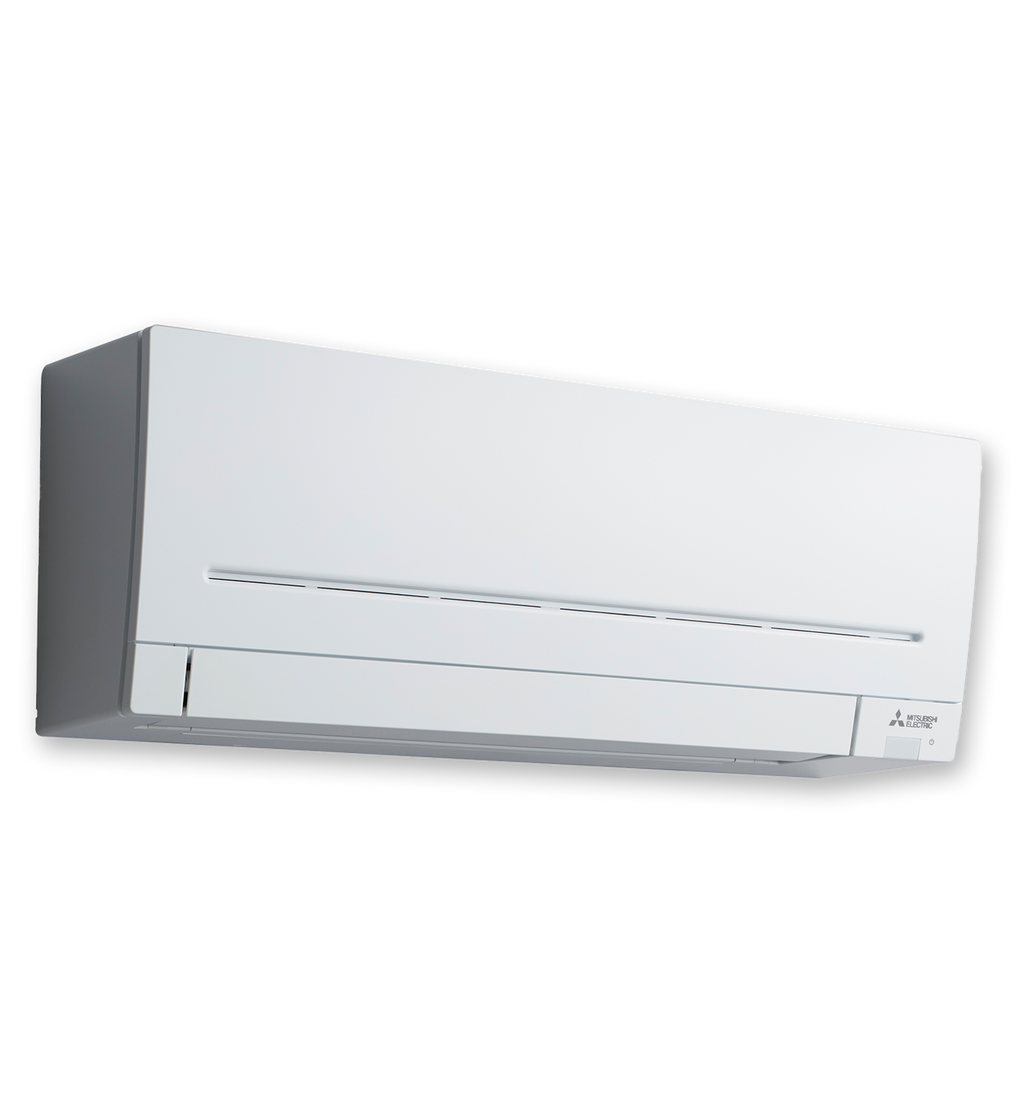

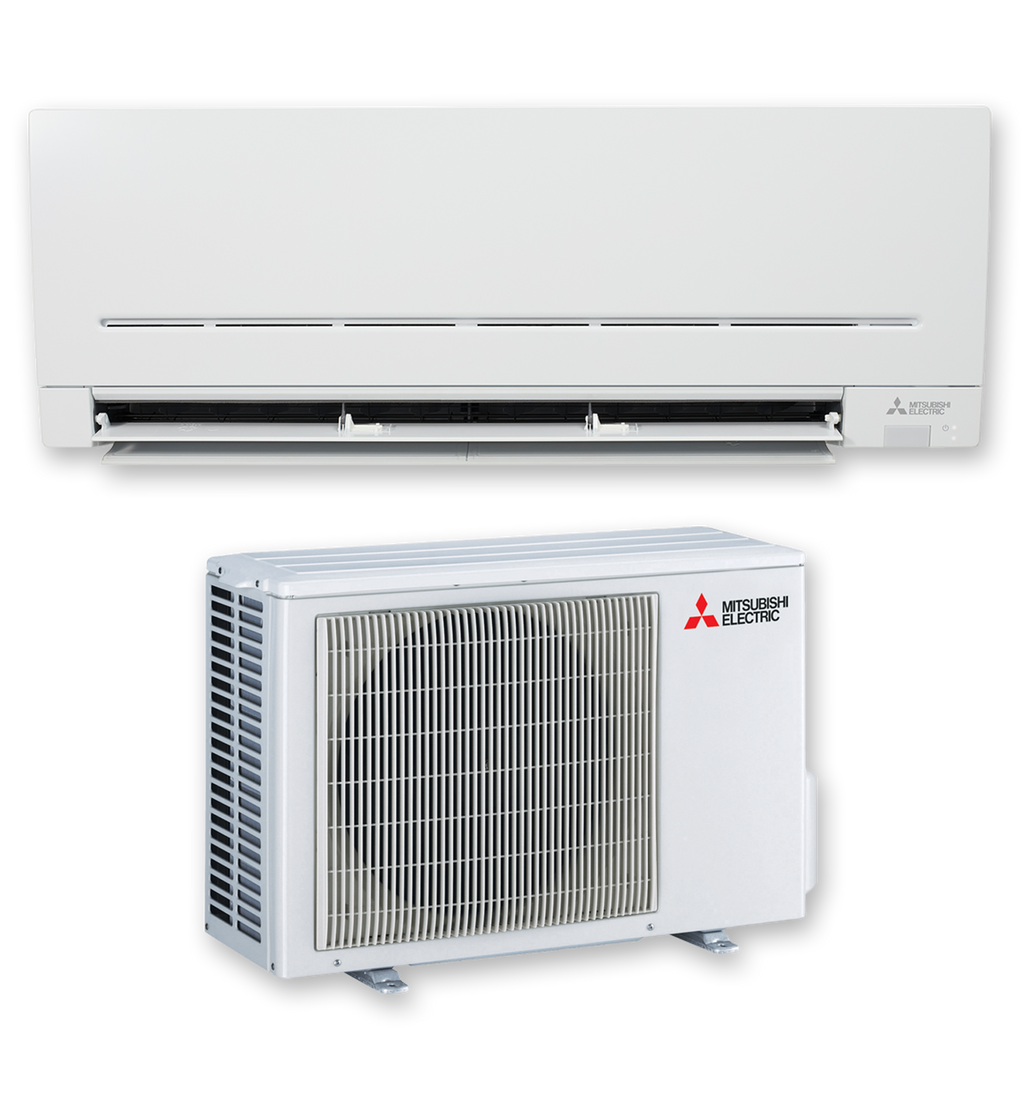

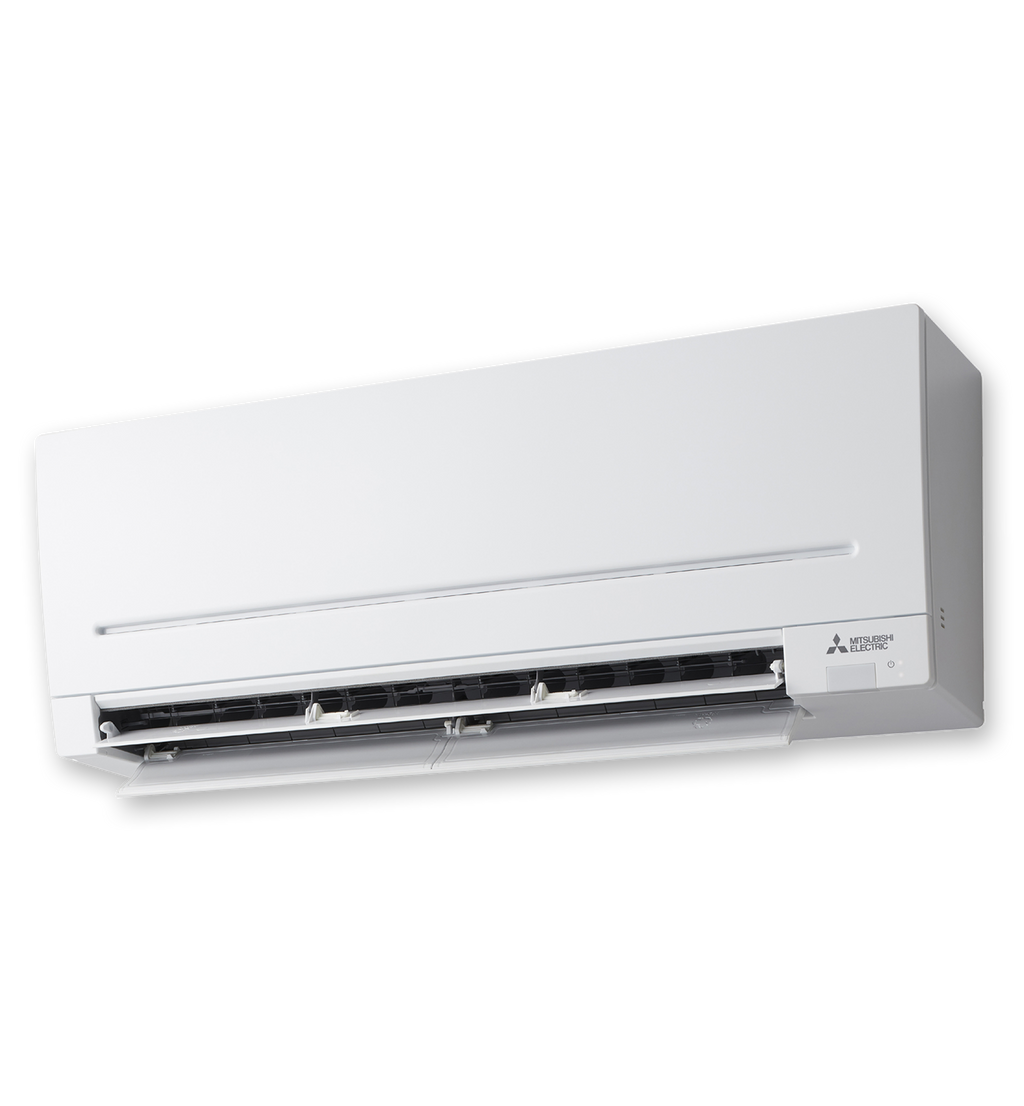

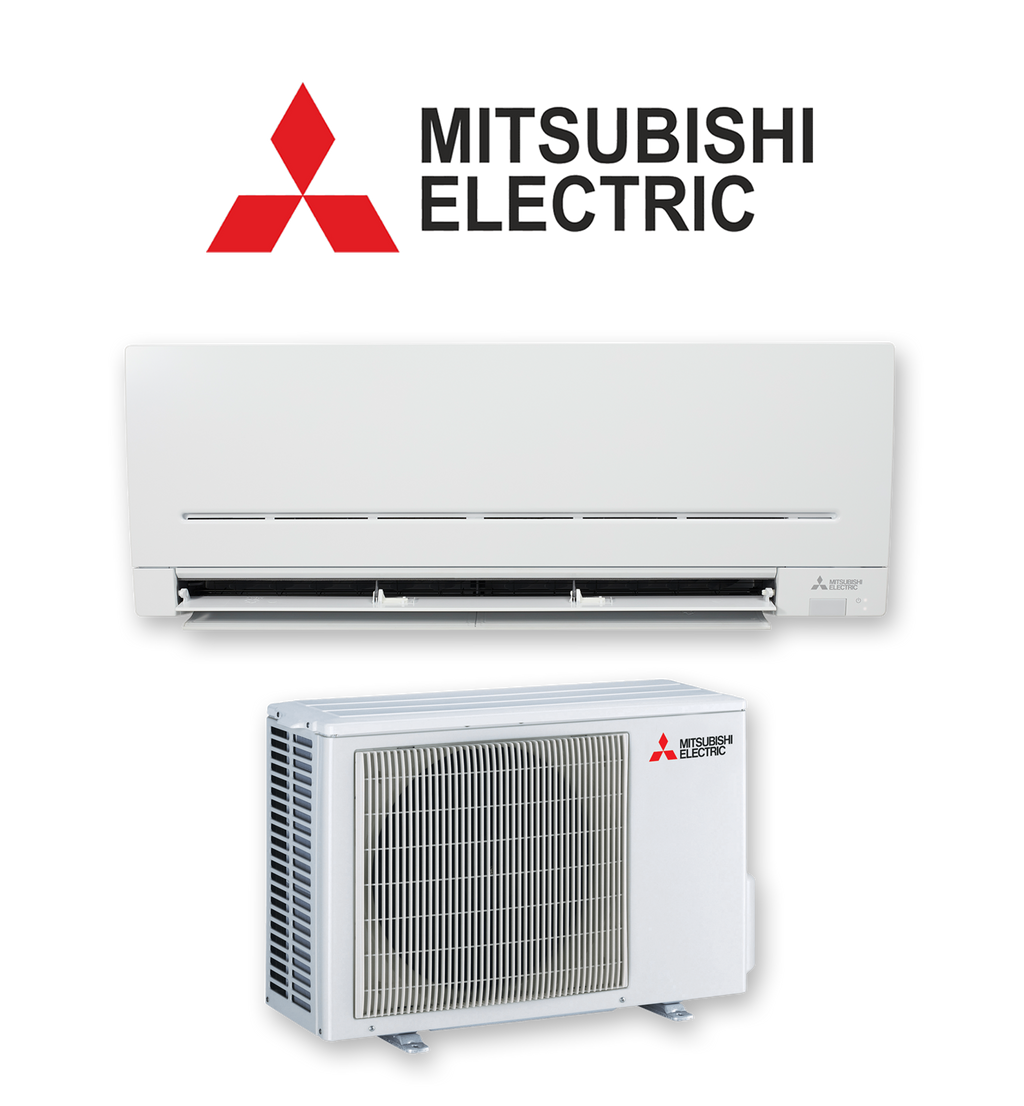

Mitsubishi Electric MSZ-AP Series 2.0 kW Split System Air Conditioner MSZAP20VGD
Description
Description
Bring a luxurious air to your interior with the Mitsubishi Electric MSZ-AP Series 2.0 kW Split System Air Conditioner MSZAP20VGD. With advanced technology and a sleek and sophisticated design, it provides unparalleled comfort and control. Its whisper-quiet operation ensures a peaceful atmosphere, while its intelligent energy-saving feature keeps energy and costs under control. Enjoy a cool and refined environment with this superior air conditioner.
Shop with Confidence
Brand new Australian Stock
No Factory Seconds
Full Australian Manufacturer’s Warranty
Authorised Genuine Dealer
Secure Online Payments
Features
Energy Efficient Air Conditioner
Mitsubishi Electric Advanced Inverter Technology provides high-speed cooling and heating with extra energy savings compared to non-inverter models.
Quiet operation
A “Quiet Mode” setting has been added to the fan speed settings, ensuring super quiet operation as low as 18dB*. Perfect for the bedroom; it’s so quiet you’ll check to see if it’s on.
*Model 25 in heating mode only.
Night Mode
Night Mode reduces the brightness of the operation indicator light, disables beep noises, and limits the noise level of the outdoor unit.
Dual barrier coating
Developed by Mitsubishi Electric, Dual Barrier Coating designed to reduce dust and greasy dirt from collecting in the unit, providing long-lasting protection to the heat exchanger, fan and air ducts. Another feature invented by Mitsubishi Electric.
R32 refrigerant
R32 is a refrigerant with just one-third the global warming potential of R410A, meaning reduced risk of harm to the environment.
Wi-Fi Control
This innovative technology connects your domestic Mitsubishi Electric air conditioners to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an Internet connection. Optional additional adapter MAC-568IF-E required per unit.
Award winning design
The MSZ-AP Series has a uniform, streamlined design regardless of the size and model of the unit. The simple yet high-quality appearance is designed to blend in with any interior. When mounted, the units appear smaller due to the tapered bottom end. The design was recognised with a Red Dot product design award.
New vertical and horizontal vane design
New vertical and horizontal vanes are double the size of the previous model, allowing the airflow direction to be adjusted and improving airflow control effectively. These functions can be activated at the touch of a button on your remote controller.
i-save Mode
the “i-save” Mode is a simplified setting function that recalls the preferred (preset) temperature at the press of a button on the remote controller. The function ensures the most suitable air conditioning settings are used contribute to reduced power consumption.
Long airflow
The high-power motor combines with the “Long” mode to push air out further, helping to provide a more even air conditioned experience in the room. (models 60/71/80)
Blue fin condenser
Anti-corrosion treatment has been applied to the heat exchanger of the outdoor unit. This coating slows the corrosion process of the aluminium fins; this is caused by salt in the air especially in coastal areas. (Corrosion of the heat exchanger will affect efficiency and performance.)
Demand response capable*
Based on connection of a demand response enabling device (DRED), AP series unit can directly receive signals to the on board terminal block to activate Demand Response Mode. Demand Response Mode is activated in response to signals sent from the electric power company at times when it is necessary to reduce peak demand. (2.5 kW – 7.8 kW).
*Available in some models only
Specifications
MODEL NAME
MSZ-AP20VG(D*)
Indoor Unit
MSZ-AP20VG(D*)-A

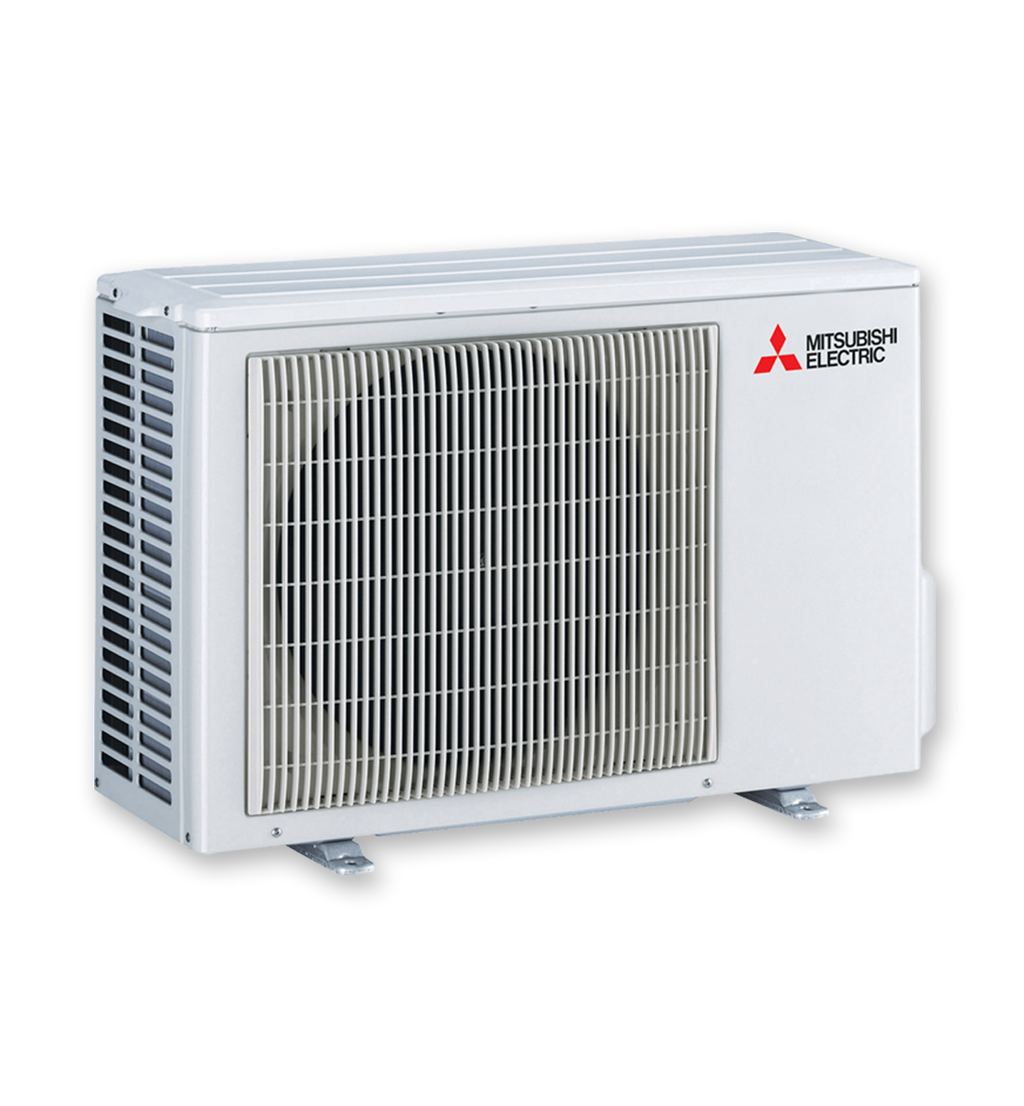

Outdoor Unit
MUZ-AP20VG(D*)-A
Cooling
Capacity (Rated Conditions)
kW
2.0
Capacity (Min – Max)
kW
0.6 – 2.7
Air Flow (Quiet/SHi)
l/s
58-115
AEER/EER (Rated Conditions)
kW
4.31/4.35
Star Rating
3.5
Running Current (Rated)
A
2.6
Sound Pressure Levels
Indoor at 1.5m
dB(A)
21-26-30-35-42
Outdoor at 1m
dB(A)
47
Sound Power Level – Outdoor
dB(A)
59
Heating
Capacity (Rated Conditions)
kW
2.5
Capacity (Min – Max)
kW
0.5 – 3.5
Air Flow (Quiet/SHi)
l/s
62-122
ACOP/COP (Rated Conditions)
kW
4.14/4.17
Star Rating
3.0
Running Current (Rated)
3.2
Sound Pressure Levels
Indoor at 1.5m
dB(A)
21-26-30-35-42
Outdoor at 1m
dB(A)
48
Sound Power Level – Outdoor
dB(A)
61
Indoor – Dimensions (HxWxD)
mm
250 x 760 x 178
Weight – Indoor
kg
8.2
Outdoor – Dimensions (HxWxD)
mm
550 x 800 x 285
Weight – Outdoor
kg
31
Electrical Supply
230 volt/Single Phase / 50 Hertz – Outdoor Power Supply
Breaker Size
A
10
Piping – max length
m
20
max height
m
12
Guaranteed Operating Range
ºC
-10 ~ 46
-15~ 24
Accessories
Remote Control
SG19C (Part No. E22 95M 426)
