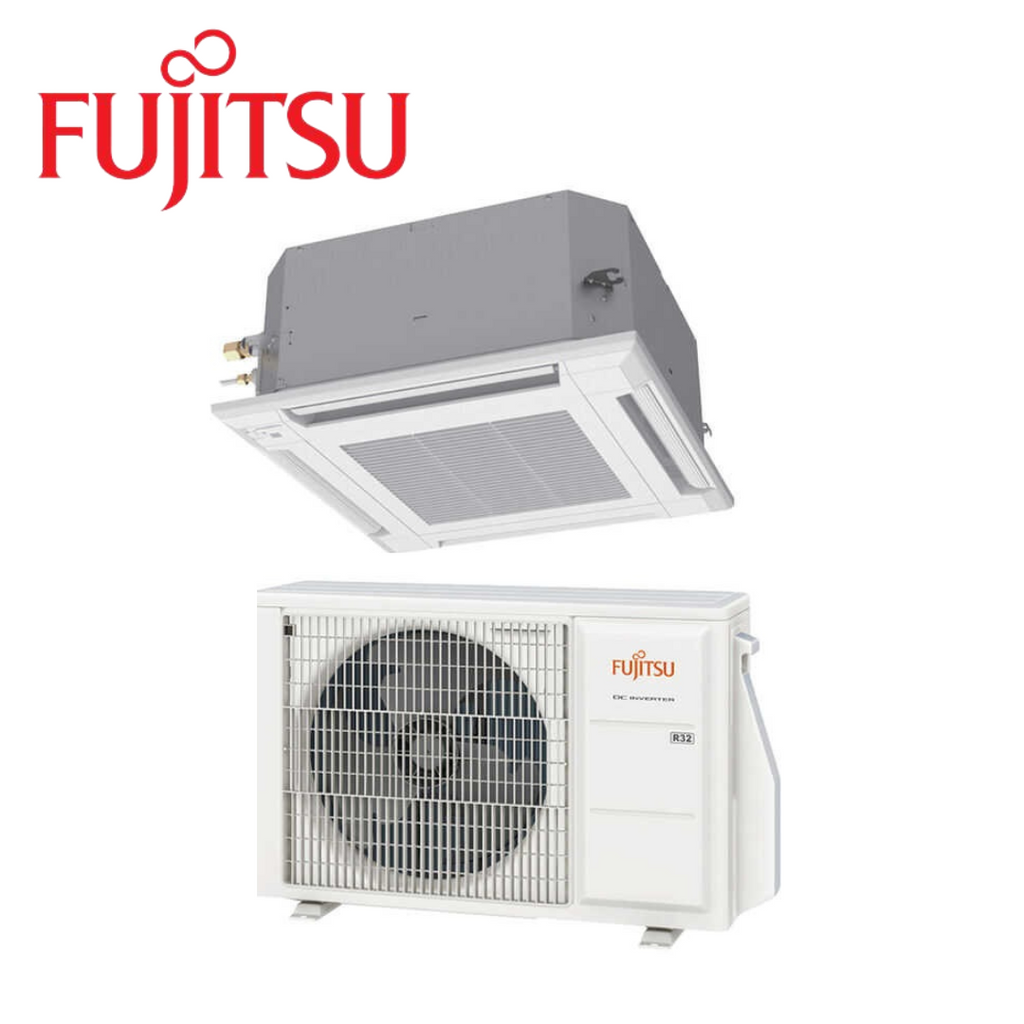

Fujitsu SET-AUTH12KVLA 3.5kW Compact Cassette Air Conditioner System | R32
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian StockNo Factory SecondsFull Australian Manufacturer’s WarrantySecure Online Payments
Description
3.5kW Cooling | 4.0kW HeatingFujitsu SET-AUTH12KVLA 3.5kW Compact Cassette Air conditioner System | R32Includes Indoor AUTH12KVLA | Outdoor AOTH12KBTAGrille UTG-UFYF-W Controller: AR-REJ1E
Specifications
Indoor unit
AUTH12KVLA
Outdoor unit
AOTH12KBTA
Operation Type
Reverse Cycle
Power Source V/Ph/Hz
240 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))
3.50 (0.9 – 4.1)
Heating Capacity kW (Rated (Min – Max))
4.00 (0.9 – 5.1)
Input Power Cooling kW (Rated (Max))
0.9 (1.33)
Input Power Heating kW (Rated (Max))
1.04 (1.88)
EER Cooling kW/kW
3.89
COP Heating kW/kW
3.85
Star Rating Cooling (0-10) (Hot / Average / Cold)
3.5 / 3 / 3
Star Rating Heating (0-10) (Hot / Average / Cold)
3 / 2.5 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)
5.206 / 4.74 / 4.862
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)
4.822 / 4.268 / 3.714
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
5.599 / 5.651 / 6.011
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
4.83 / 4.495 / 4.017
Running Current amps (Cooling / Heating)
4.2 / 5
Moisture Removal l/hr
1.2
Indoor Sound Pressure Cooling dBA (High / Quiet)
37 / 28
Indoor Sound Pressure Heating dBA (High / Quiet)
37 / 28
Outdoor Sound Pressure dBA (Cooling / Heating)
47 / 48
Outdoor Sound Power dBA
61
Air Circulation (Indoor – High Fan) Cooling l/sec
169
Air Circulation (Indoor – High Fan) Heating l/sec
169
Indoor Unit Dimensions mm (Height x Width x Depth)
245 x 570 x 570
Indoor Unit Weight kg
15.00
Outdoor Unit Dimensions mm (Height x Width x Depth)
542 x 799 x 290
Outdoor Unit Weight kg
32.00
Grill Dimensions mm (Height x Width x Depth)
49 x 620 x 620
Grill Weight kg
2.30
Piping Connects mm Ø (Liquid / Gas)
6.35 / 9.52
Pipe Length m (Max (Precharged))
20 (15)
Max Height Difference m
15
Operation Range Cooling °CDB (Min to Max)
-10 to 46
Operation Range Heating °CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
Refrigerant Amount g
850
