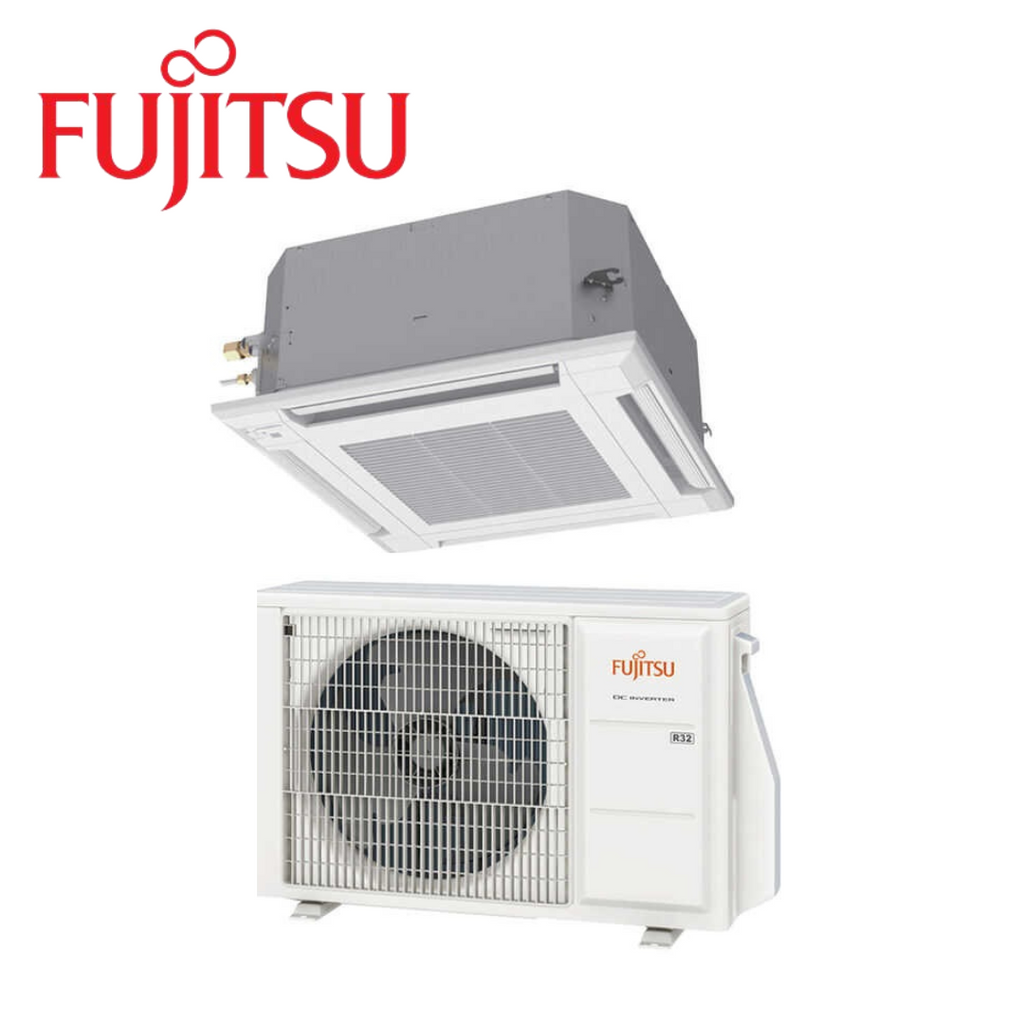

Fujitsu SET-AUTH09KVLA 2.5kW Compact Cassette Air Conditioner System | R32
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian StockNo Factory SecondsFull Australian Manufacturer’s WarrantySecure Online Payments
Description
Fujitsu SET-AUTH09KVLA 2.5kW Compact Cassette Air Conditioner System | R32Includes Indoor AUTH09KVLA | Outdoor AOTH09KBTAGrille UTG-UFYF-W Controller AR-REJ1E
Specifications
Indoor unit
AUTH09KVLA
Outdoor unit
AOTH09KBTA
Operation Type
Reverse Cycle
Power Source V/Ph/Hz
240 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))
2.50 (0.9 – 3.6)
Heating Capacity kW (Rated (Min – Max))
3.20 (0.9 – 4.5)
Input Power Cooling kW (Rated (Max))
0.56 (1.13)
Input Power Heating kW (Rated (Max))
0.76 (1.68)
EER Cooling kW/kW
4.46
COP Heating kW/kW
4.21
Star Rating Cooling (0-10) (Hot / Average / Cold)
4 / 3.5 / 3.5
Star Rating Heating (0-10) (Hot / Average / Cold)
3.5 / 3 / 2.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)
5.804 / 5.126 / 5.179
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)
5.064 / 4.575 / 4.108
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
6.273 / 6.243 / 6.595
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
5.067 / 4.771 / 4.364
Running Current amps (Cooling / Heating)
3 / 4
Moisture Removal l/hr
0.7
Indoor Sound Pressure Cooling dBA (High / Quiet)
33 / 28
Indoor Sound Pressure Heating dBA (High / Quiet)
34 / 27
Outdoor Sound Pressure dBA (Cooling / Heating)
41 / 46
Outdoor Sound Power dBA
59
Air Circulation (Indoor – High Fan) Cooling l/sec
150
Air Circulation (Indoor – High Fan) Heating l/sec
150
Indoor Unit Dimensions mm (Height x Width x Depth)
245 x 570 x 570
Indoor Unit Weight kg
15.00
Outdoor Unit Dimensions mm (Height x Width x Depth)
542 x 799 x 290
Outdoor Unit Weight kg
32.00
Grill Dimensions mm (Height x Width x Depth)
49 x 620 x 620
Grill Weight kg
2.30
Piping Connects mm Ø (Liquid / Gas)
6.35 / 9.52
Pipe Length m (Max (Precharged))
20 (15)
Max Height Difference m
15
Operation Range Cooling °CDB (Min to Max)
-10 to 46
Operation Range Heating °CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
Refrigerant Amount g
850
