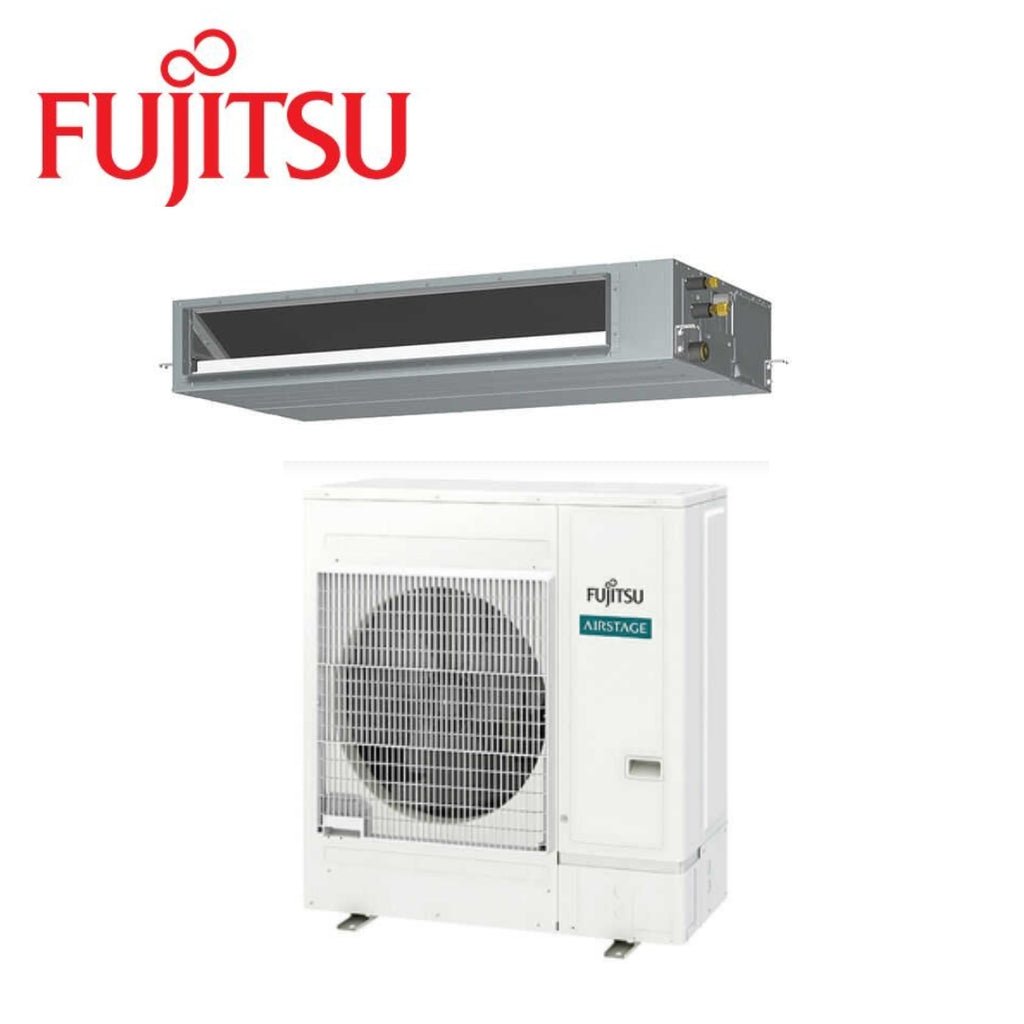

FUJITSU SET-ARTH54KMTAP 13kW Inverter Ducted System Mid Static Slimline 1 Phase | R32
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian StockNo Factory SecondsFull Australian Manufacturer’s WarrantySecure Online Payments
Description
13.0kW Cooling | 15.0kW Heating
Blue Fin Heat Exchanger | R32
Specification
Indoor unit
ARTH54KMTAP
Outdoor unit
AOTH54KBTA
Operation Type
Reverse Cycle
Power Source V/Ph/Hz
240 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))
13.00 (4.5 – 15)
Heating Capacity kW (Rated (Min – Max))
15.00 (4.7 – 18)
Input Power Cooling kW (Rated (Max))
4.31 (5.19)
Input Power Heating kW (Rated (Max))
4.45 (5.23)
EER Cooling kW/kW
3.02
COP Heating kW/kW
3.37
Star Rating Cooling (0-10) (Hot / Average / Cold)
2.5 / 2 / 1.5
Star Rating Heating (0-10) (Hot / Average / Cold)
2.5 / 2.5 / 2.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)
4.354 / 4.163 / 4.412
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)
4.371 / 3.688 / 3.113
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
4.664 / 4.837 / 5.221
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
4.382 / 3.98 / 3.356
Running Current amps (Cooling / Heating)
18.1 / 18.7
Moisture Removal l/hr
5
Indoor Sound Pressure Cooling dBA (High / Quiet)
40 / 29
Indoor Sound Pressure Heating dBA (High / Quiet)
40 / 29
Outdoor Sound Pressure dBA (Cooling / Heating)
55 / 57
Outdoor Sound Power dBA
72
Static Pressure Range PA (Min to Max)
50 to 150
Air Circulation (Indoor – High Fan) Cooling l/sec
600
Air Circulation (Indoor – High Fan) Heating l/sec
600
Indoor Unit Dimensions mm (Height x Width x Depth)
240 x 1400 x 700
Indoor Unit Weight kg
42.00
Outdoor Unit Dimensions mm (Height x Width x Depth)
988 x 940 x 320
Outdoor Unit Weight kg
67.00
Piping Connects mm Ø (Liquid / Gas)
9.52 / 15.88
Pipe Length m (Max (Precharged))
50 (30)
Max Height Difference m
30
Operation Range Cooling °CDB (Min to Max)
-10 to 50
Operation Range Heating °CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
Refrigerant Amount g
2,700
