Fujitsu SET-ARTH54KHTA 14.0kW High Static Ducted System 1 Phase | Includes UTY-RNRT Controller
Description
14.0 kW Cooling15.5 kW Heating

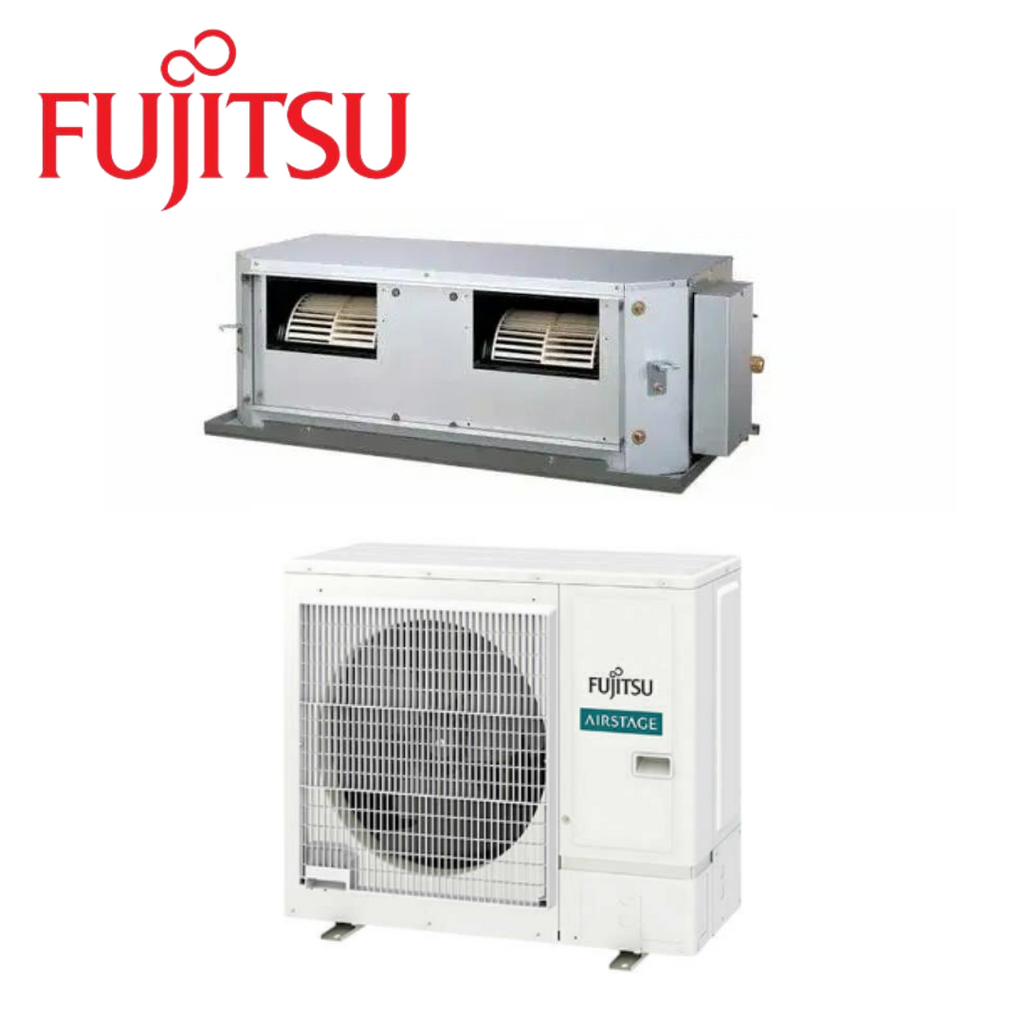

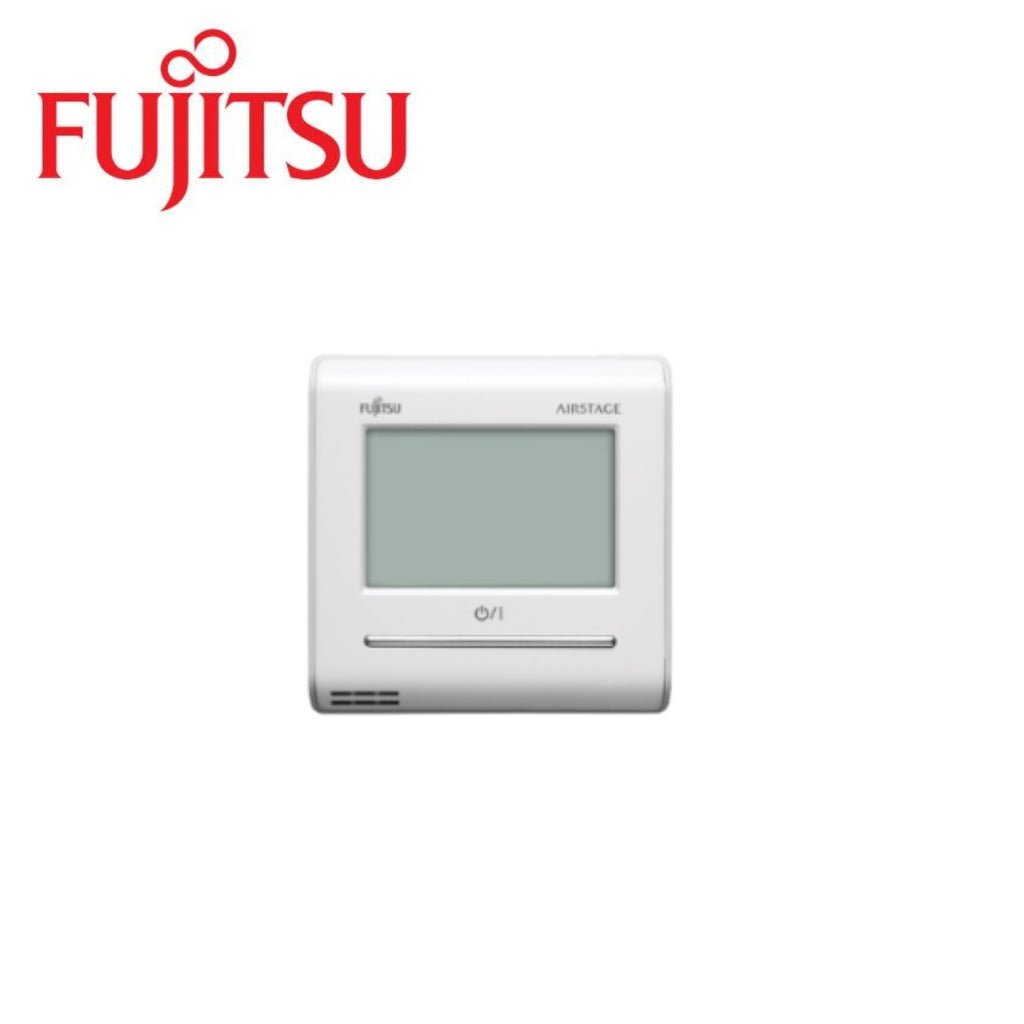

Fujitsu SET-ARTH54KHTA 14.0kW High Static R32 Ducted AC System 1 PhaseIncludesIndoor Unit ARTH54KHTA | Outdoor Unit : AOTH54KBTAWired Remote Controller : UTY-RNRT – Backlit Touch Panel Wall Controller
Specification
Indoor unit
ARTH54KHTA
Outdoor unit
AOTH54KBTA
Operation Type
Reverse Cycle
Power SourceV/Ph/Hz
230 / 1 / 50
Cooling CapacitykW (Rated (Min – Max))
14.00 (4.5 – 15)
Heating CapacitykW (Rated (Min – Max))
15.50 (4.7 – 18)
Input Power CoolingkW (Rated (Max))
4.64 (5.17)
Input Power HeatingkW (Rated (Max))
4.4 (5.23)
EER CoolingkW/kW
3.02
COP HeatingkW/kW
3.02
Star Rating Cooling(0-10) (Hot / Average / Cold)
2.5 / 2.5 / 2.5
Star Rating Heating(0-10) (Hot / Average / Cold)
3 / 2 / 1.5
Total Cooling Seasonal Performance Factor ResidentialkW (Hot / Average / Cold)
4.339 / 4.147 / 4.39
Heating Seasonal Performance Factor ResidentialkW (Hot / Average / Cold)
4.691 / 3.937 / 3.306
Total Cooling Seasonal Performance Factor CommercialkW (Hot / Average / Cold)
4.647 / 4.816 / 5.195
Heating Seasonal Performance Factor CommercialkW (Hot / Average / Cold)
4.706 / 4.101 / 3.573
Running Currentamps (Cooling / Heating)
20.4 / 19.3
Moisture Removall/hr
1.6
Indoor Sound Pressure CoolingdBA (High / Quiet)
45 / 36
Indoor Sound Pressure HeatingdBA (High / Quiet)
45 / 36
Outdoor Sound PressuredBA (Cooling / Heating)
55 / 57
Outdoor Sound PowerdBA
72
Static Pressure RangePA (Min to Max)
60 to 260
Air Circulation (Indoor – High Fan) Coolingl/sec
986
Air Circulation (Indoor – High Fan) Heatingl/sec
986
Indoor Unit Dimensionsmm (Height x Width x Depth)
425 x 1250 x 490
Indoor Unit Weightkg
53.00
Outdoor Unit Dimensionsmm (Height x Width x Depth)
998 x 940 x 320
Outdoor Unit Weightkg
67.00
Piping Connectsmm Ø (Liquid / Gas)
9.52 / 15.88
Pipe Lengthm (Max (Precharged))
50 (30)
Max Height Differencem
30
Operation Range Cooling°CDB (Min to Max)
-10 to 50
Operation Range Heating°CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
Refrigerant Amountg
2,700
