Fujitsu SET-ARTH45KHTA 12.5kW High Static Ducted System 1 Phase | Includes UTY-RNRT Controller
Description

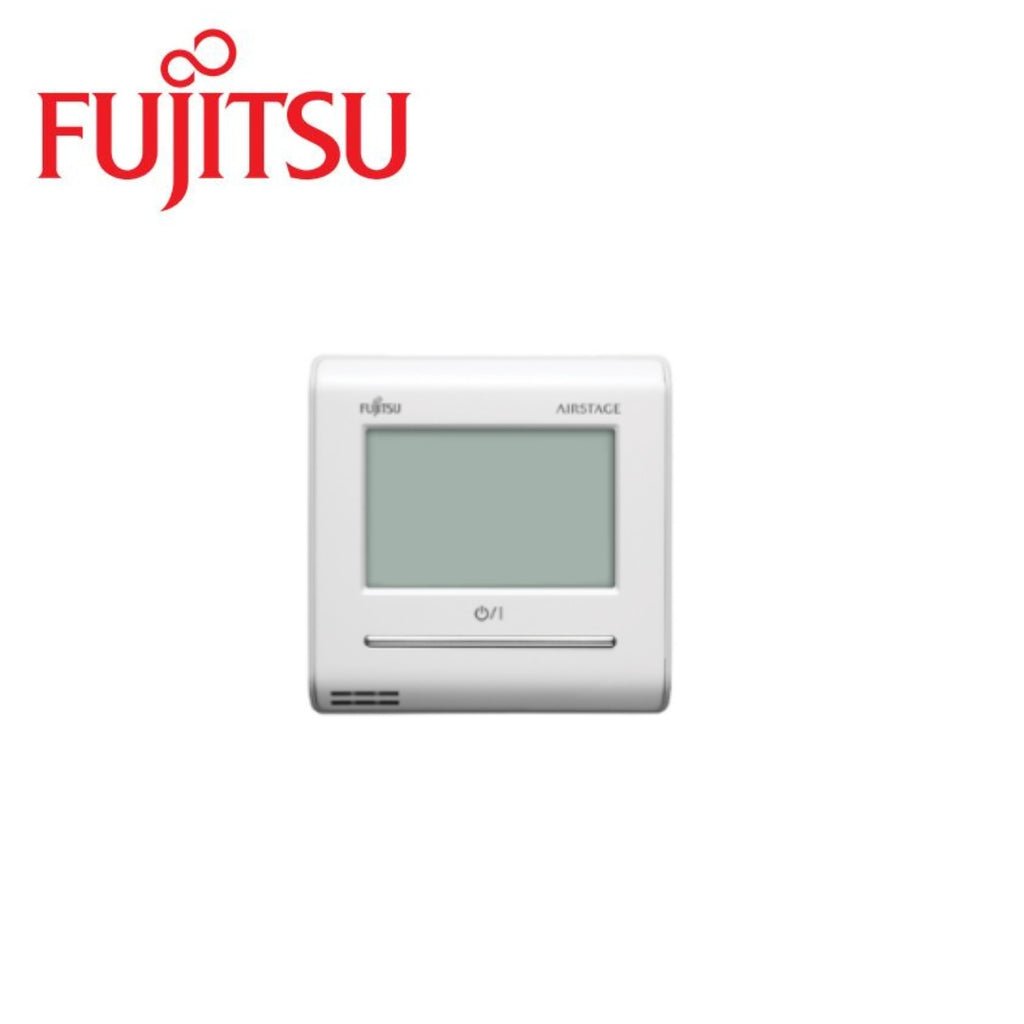

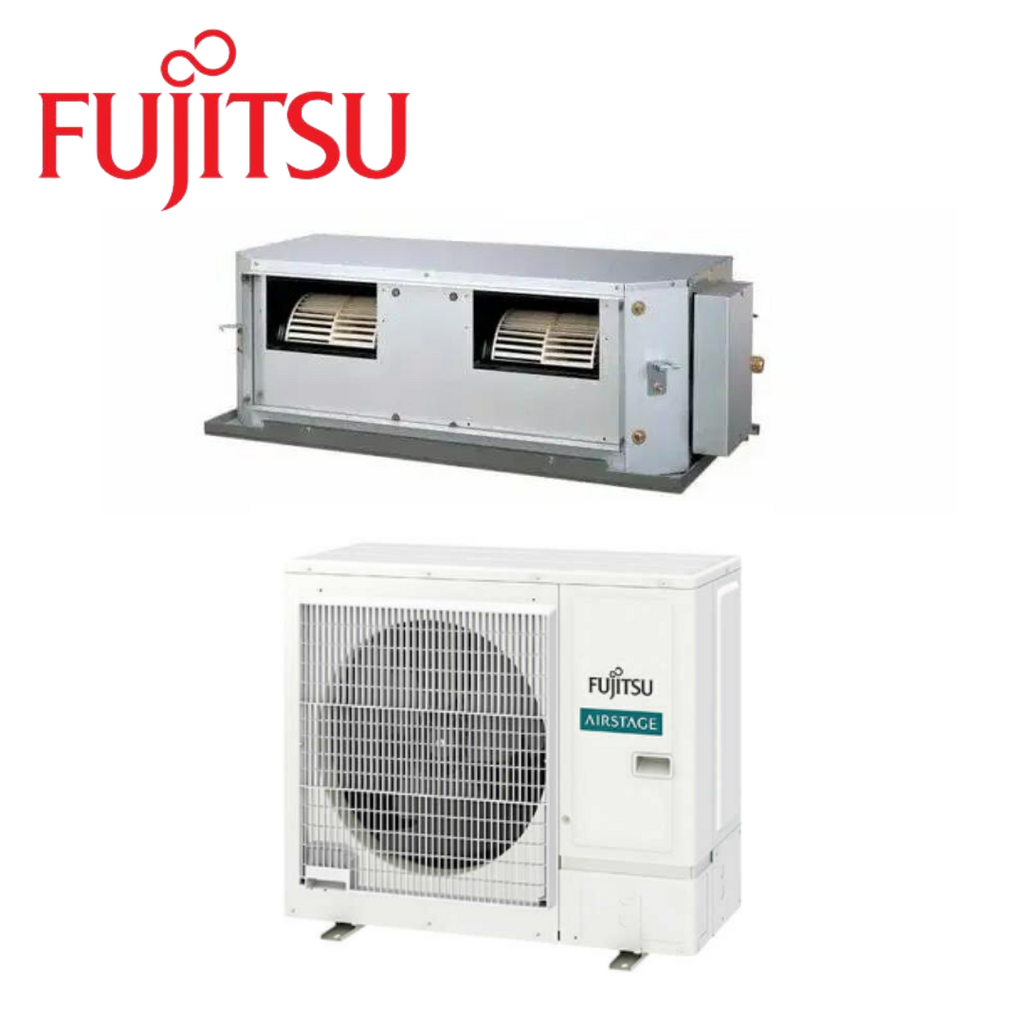

12.5 kW Cooling14.0 kW HeatingSET-ARTH45KHTA 12.5kW High Static Ducted Air Conditioning System | 1 PhaseIncludes Indoor Unit ARTH45KHTA Outdoor Unit : AOTH45KBTA R32Wired Remote Controller : UTY-RNRT – Backlit Touch Panel Wall Controller
Specification
Indoor unit
ARTH45KHTA
Outdoor unit
AOTH45KBTA
Operation Type
Reverse Cycle
Power SourceV/Ph/Hz
230 / 1 / 50
Cooling CapacitykW (Rated (Min – Max))
12.50 (4 – 14)
Heating CapacitykW (Rated (Min – Max))
14.00 (4.2 – 16.5)
Input Power CoolingkW (Rated (Max))
3.8 (5.16)
Input Power HeatingkW (Rated (Max))
3.42 (5.22)
EER CoolingkW/kW
3.29
COP HeatingkW/kW
3.29
Star Rating Cooling(0-10) (Hot / Average / Cold)
3 / 2.5 / 3
Star Rating Heating(0-10) (Hot / Average / Cold)
3 / 2.5 / 2
Total Cooling Seasonal Performance Factor ResidentialkW (Hot / Average / Cold)
4.612 / 4.403 / 4.635
Heating Seasonal Performance Factor ResidentialkW (Hot / Average / Cold)
4.766 / 4.208 / 3.574
Total Cooling Seasonal Performance Factor CommercialkW (Hot / Average / Cold)
4.928 / 5.083 / 5.465
Heating Seasonal Performance Factor CommercialkW (Hot / Average / Cold)
4.764 / 4.41 / 3.901
Running Currentamps (Cooling / Heating)
16.7 / 15
Moisture Removall/hr
0.9
Indoor Sound Pressure CoolingdBA (High / Quiet)
43 / 35
Indoor Sound Pressure HeatingdBA (High / Quiet)
43 / 35
Outdoor Sound PressuredBA (Cooling / Heating)
55 / 57
Outdoor Sound PowerdBA
71
Static Pressure RangePA (Min to Max)
60 to 260
Air Circulation (Indoor – High Fan) Coolingl/sec
903
Air Circulation (Indoor – High Fan) Heatingl/sec
903
Indoor Unit Dimensionsmm (Height x Width x Depth)
425 x 1250 x 490
Indoor Unit Weightkg
53.00
Outdoor Unit Dimensionsmm (Height x Width x Depth)
998 x 940 x 320
Outdoor Unit Weightkg
67.00
Piping Connectsmm Ø (Liquid / Gas)
9.52 / 15.88
Pipe Lengthm (Max (Precharged))
50 (30)
Max Height Differencem
30
Operation Range Cooling°CDB (Min to Max)
-10 to 50
Operation Range Heating°CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
Refrigerant Amountg
2,700
