FUJITSU SET-ARTH30KMTAP 8.5kW Inverter Ducted System Mid Static Slimline 1 Phase | R32
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian StockNo Factory SecondsFull Australian Manufacturer’s WarrantySecure Online Payments
Description
8.5 kW Cooling10.0 kW HeatingBlue Fin Heat Exchanger | R32

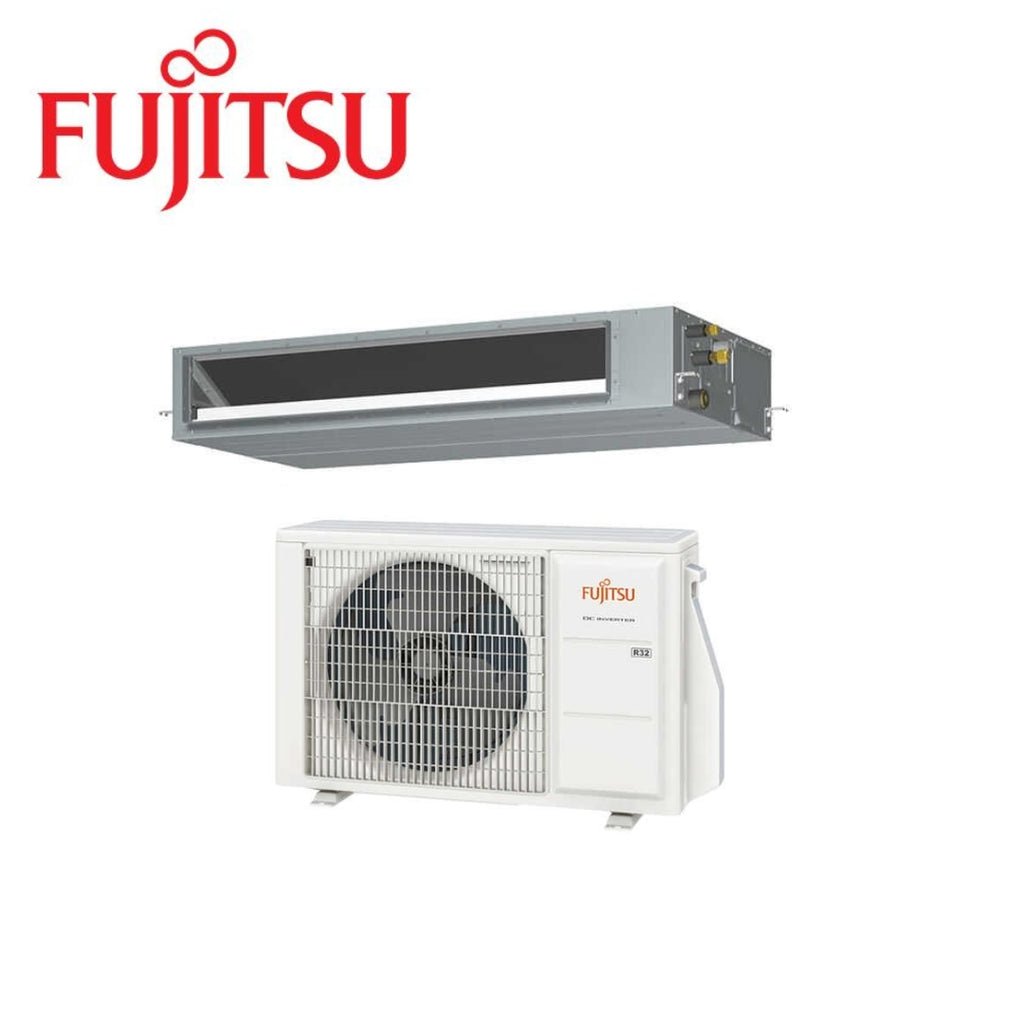

FUJITSU SET-ARTH30KMTAP 8.5kW Inverter Ducted Air Conditioner System Mid Static Slimline 1 Phase | R32Includes Indoor – ARTH30KMTAP | Outdoor – AOTH30KBTA
Specification
Indoor unit
ARTH30KMTAP
Outdoor unit

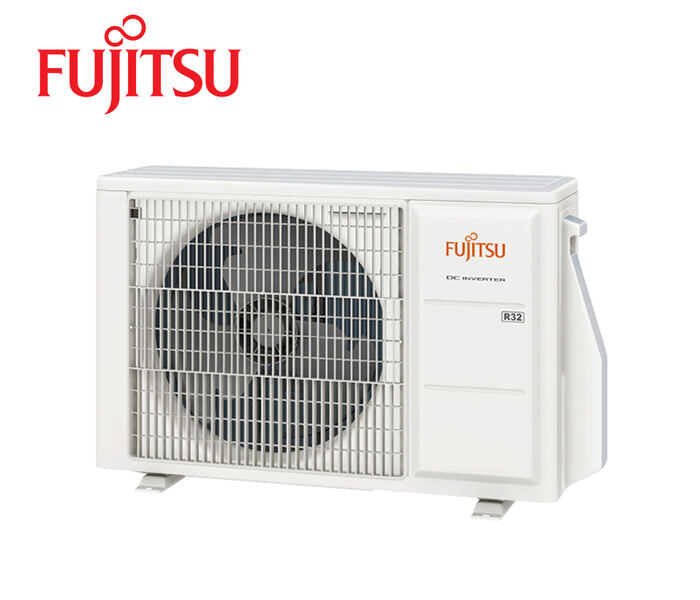

AOTH30KBTA
Operation Type
Reverse Cycle
Power Source V/Ph/Hz
240 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))
8.50 (2.8 – 10.3)
Heating Capacity kW (Rated (Min – Max))
10.00 (2.7 – 11.3)
Input Power Cooling kW (Rated (Max))
2.6 (4.28)
Input Power Heating kW (Rated (Max))
2.62 (4.44)
EER Cooling kW/kW
3.5461
COP Heating kW/kW
4.1151
Star Rating Cooling (0-10) (Hot / Average / Cold)
2.5 / 2.5 / 2.5
Star Rating Heating (0-10) (Hot / Average / Cold)
3 / 2.5 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)
4.781 / 4.91 / 5.264
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)
5.036 / 4.472 / 3.899
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
4.781 / 4.91 / 5.264
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
4.731 / 4.361 / 3.834
Running Current amps (Cooling / Heating)
11 / 11.2
Moisture Removal l/hr
1.6
Indoor Sound Pressure Cooling dBA (High / Quiet)
38 / 28
Indoor Sound Pressure Heating dBA (High / Quiet)
38 / 28
Outdoor Sound Pressure dBA (Cooling / Heating)
51 / 53
Outdoor Sound Power dBA
69
Static Pressure Range PA (Min to Max)
50 to 150
Air Circulation (Indoor – High Fan) Cooling l/sec
541.67
Air Circulation (Indoor – High Fan) Heating l/sec
541.67
Indoor Unit Dimensions mm (Height x Width x Depth)
240 x 1400 x 700
Indoor Unit Weight kg
42.00
Outdoor Unit Dimensions mm (Height x Width x Depth)
788 x 940 x 320
Outdoor Unit Weight kg
52.00
Piping Connects mm Ø (Liquid / Gas)
9.52 / 15.88
Pipe Length m (Max (Precharged))
50 (30)
Max Height Difference m
30
Operation Range Cooling °CDB (Min to Max)
-10 to 50
Operation Range Heating °CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
Refrigerant Amount g
1,900
