Fujitsu SET-ARTH24KHTA 7.1kW High Static Ducted System 1 Phase | Includes UTY-RNRT Controller
Description
7.1 kW Cooling8.0 kW Heating

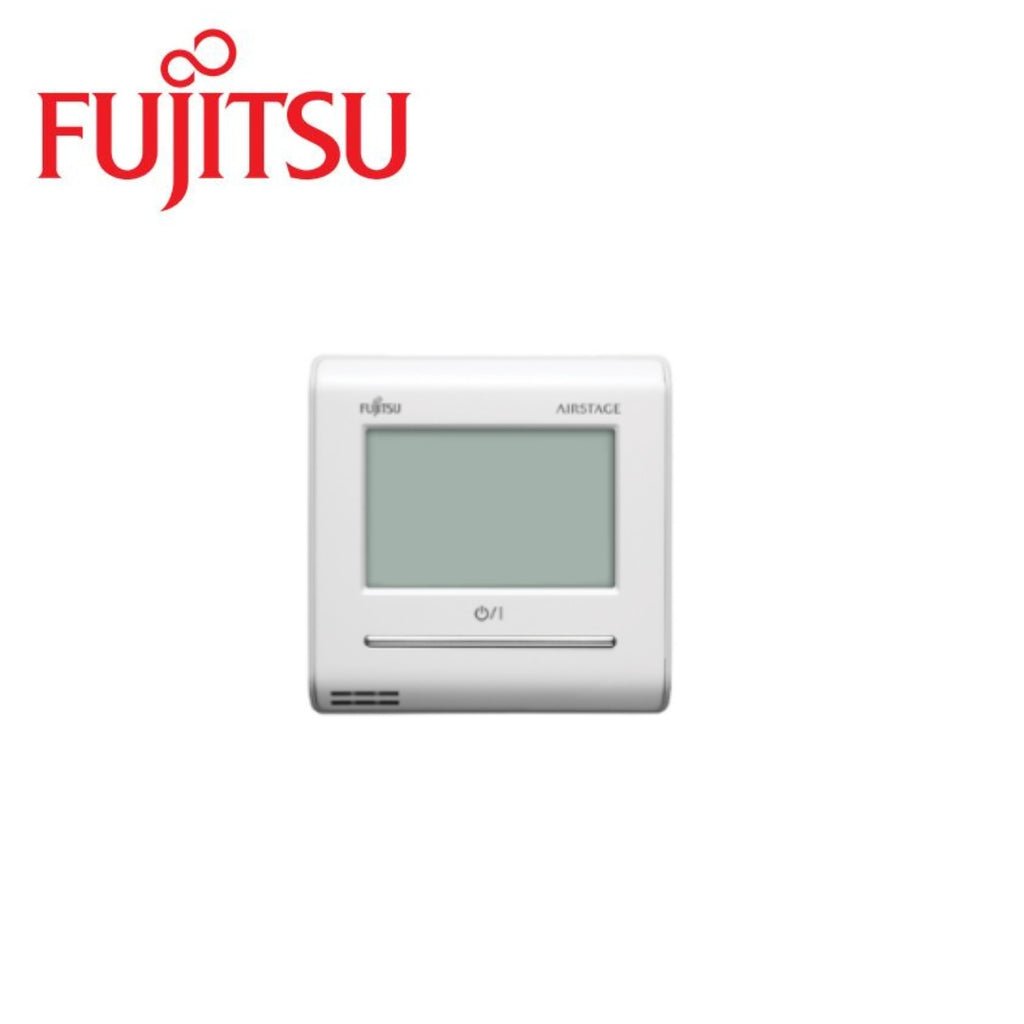

Fujitsu SET-ARTH24KHTA 7.1kW High Static Ducted Air Conditioning System – 1 PhaseIncludes Indoor Unit ARTH24KHTA | Outdoor Unit AOTH24KBTA| Includes UTY-RNRT Controller
Specification
Indoor unit
ARTH24KHTA
Outdoor unit
AOTH24KBTA
Operation Type
Reverse Cycle
Power SourceV/Ph/Hz
230 / 1 / 50
Cooling CapacitykW (Rated (Min – Max))
7.10 (1.8 – 8.1)
Heating CapacitykW (Rated (Min – Max))
8.00 (2 – 9.1)
Input Power CoolingkW (Rated (Max))
2.14 (2.53)
Input Power HeatingkW (Rated (Max))
2.05 (2.45)
EER CoolingkW/kW
3.32
COP HeatingkW/kW
3.9
Star Rating Cooling(0-10) (Hot / Average / Cold)
3 / 3 / 3
Star Rating Heating(0-10) (Hot / Average / Cold)
3 / 2.5 / 1.5
Total Cooling Seasonal Performance Factor ResidentialkW (Hot / Average / Cold)
4.912 / 4.611 / 4.875
Heating Seasonal Performance Factor ResidentialkW (Hot / Average / Cold)
4.825 / 4.11 / 3.444
Total Cooling Seasonal Performance Factor CommercialkW (Hot / Average / Cold)
5.299 / 5.489 / 5.931
Heating Seasonal Performance Factor CommercialkW (Hot / Average / Cold)
4.831 / 4.41 / 3.707
Running Currentamps (Cooling / Heating)
9.4 / 9
Moisture Removall/hr
0.5
Indoor Sound Pressure CoolingdBA (High / Quiet)
34 / 27
Indoor Sound Pressure HeatingdBA (High / Quiet)
34 / 27
Outdoor Sound PressuredBA (Cooling / Heating)
48 / 50
Outdoor Sound PowerdBA
68
Static Pressure RangePA (Min to Max)
60 to 210
Air Circulation (Indoor – High Fan) Coolingl/sec
500
Air Circulation (Indoor – High Fan) Heatingl/sec
500
Indoor Unit Dimensionsmm (Height x Width x Depth)
400 x 1050 x 500
Indoor Unit Weightkg
38.00
Outdoor Unit Dimensionsmm (Height x Width x Depth)
716 x 820 x 315
Outdoor Unit Weightkg
42.00
Piping Connectsmm Ø (Liquid / Gas)
6.35 / 12.7
Pipe Lengthm (Max (Precharged))
30 (20)
Max Height Differencem
25
Operation Range Cooling°CDB (Min to Max)
-10 to 50
Operation Range Heating°CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
Refrigerant Amountg
1,250
