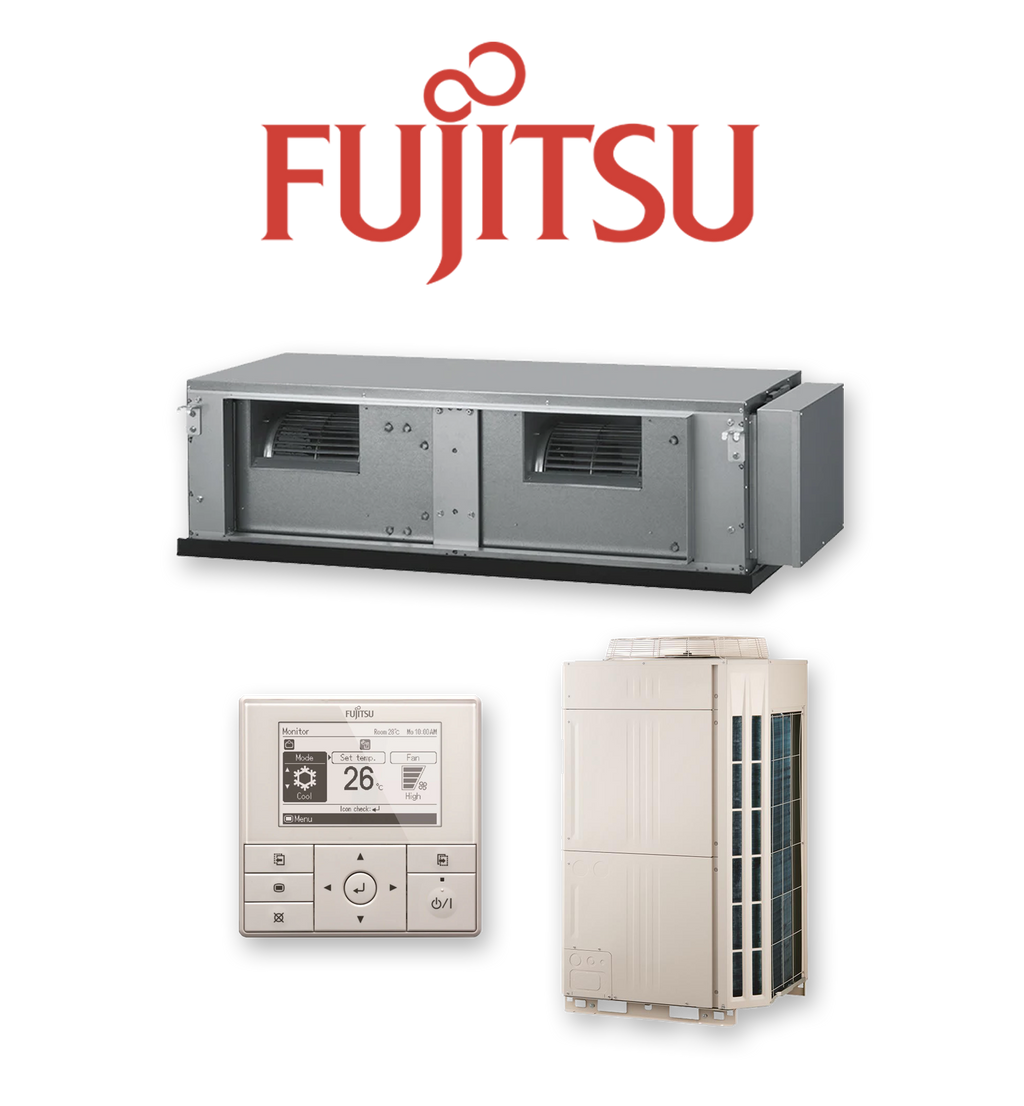

FUJITSU SET-ARTC90LATU 25.0kW Inverter Ducted System R410A 3 Phase | Includes UTY-RVNYN Controller
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian StockNo Factory SecondsFull Australian Manufacturer’s WarrantySecure Online Payments
Specification
Model No. Indoor
ARTC90LATU
Model No. Outdoor
AOTA90LALT
Reverse Cycle System
Yes
Capacity Class
Cooling Capacity (Watts)
25,000
Cooling Capacity (BTU/h)
85,300
Range (Watts)
11,200 28,000
Range (BTU/h)
38,200 95,500
Heating Capacity (Watts)
28,000
Heating Capacity (BTU/h)
95,500
Range (Watts)
12,500 31,500
Range (BTU/h)
42,600 107,500
Power Supply (Volts)
415
Phase-Frequency (Ph Hz)
3-50
Power Supply Attachment
Outdoor
Plug Size (If Applicable)
Running Current, Cooling (Amps)
11.5
Running Current, Range (Amps)
Max 25.8
Input, Cooling (Watts)
7,820
Input, Range (Watts)
12,500
Running Current, Heating (Amps)
12.1
Running Current, Range (Amps)
Max 25.8
Input, Heating (Watts)
8,240
Input, Range (Watts)
12,500
Input (Watts)
Moisture Removal (l/hr)
6
E.E.R. Cooling
3.2
C.O.P. Heating
3.4
Star Rating Cooling
Star Rating Heating
Fan Speed
3
Air Circulation, High (l/s)
1347
Compressor Type
Twin Rotary
Dimensions Inside Unit (HxWxD mm)
550 x 1,587 x 700
Weight Inside Unit (kg)
110
Dimensions Outside Unit (HxWxD mm)
1,690 x 930 x 765
Weight Outside Unit (kg)
215
I.U. Sound Pressure Level (dBA@1mtr)
49
O.U. Sound Pressure Level (dBA@1mtr)
59
O.U. Sound Power Level (dBA)
78
Refrigerant Type
R410A
Connection Pipe Sizes, Gas (mm)
25.4
Connection Pipe Sizes, Liquid (mm)
12.7
Pre Charged Length (Metre)
20
Minimum Pipe Length (Metre)
5
Maximum Pipe Length (Metre)
75
Maximum Pipe Height (Metre)
30
Pipe Connection Methods
Brazing
Outdoor operating Temp, Cooling _
-5 to 46
Outdoor operating Temp, Heating_
-15 to 24
Description
25.0kW Cooling Capacity28.0kW Heating CapacitySuper Deal
