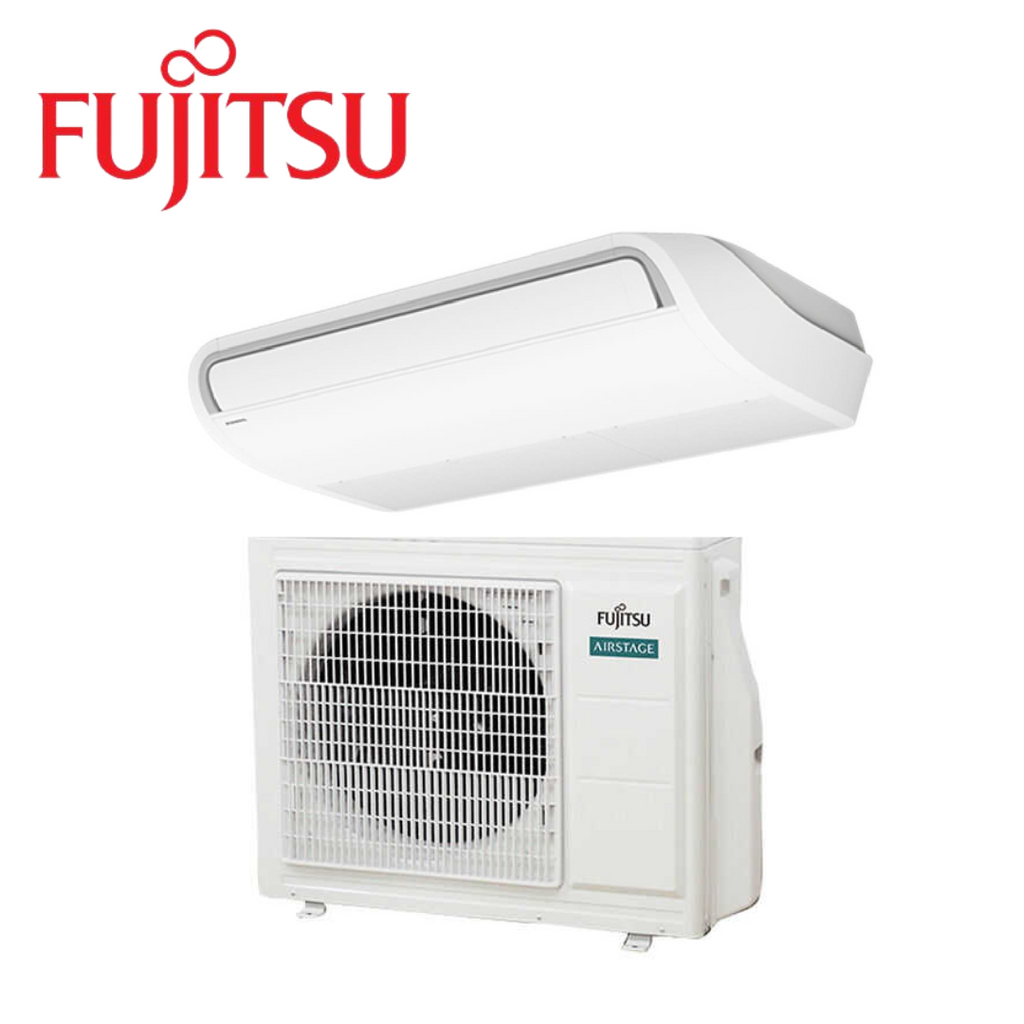

FUJITSU SET-ABTH24KRTA-YH 7.1KW Inverter Floor Console System 1 Phase | R32
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian StockNo Factory SecondsFull Australian Manufacturer’s WarrantySecure Online Payments
Specifications
Indoor unit
ABTH24KRTA
Outdoor unit
AOTH24KBTA
Operation Type
Reverse Cycle
Power Source V/Ph/Hz
230 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))
7.10 (1.8 – 8.1)
Heating Capacity kW (Rated (Min – Max))
8.00 (2 – 9.1)
Input Power Cooling kW (Rated (Max))
2.27 (3.15)
Input Power Heating kW (Rated (Max))
2.1 (2.59)
EER Cooling kW/kW
3.13
COP Heating kW/kW
3.81
Star Rating Cooling (0-10) (Hot / Average / Cold)
3 / 3 / 3
Star Rating Heating (0-10) (Hot / Average / Cold)
3.5 / 2.5 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)
4.802 / 4.518 / 4.818
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)
5.217 / 4.422 / 3.712
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
5.197 / 5.419 / 5.888
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
5.237 / 4.747 / 4.131
Running Current amps (Cooling / Heating)
10 / 9.2
Moisture Removal l/hr
3.1
Indoor Sound Pressure Cooling dBA (High / Quiet)
41 / 29
Indoor Sound Pressure Heating dBA (High / Quiet)
41 / 29
Outdoor Sound Pressure dBA (Cooling / Heating)
48 / 50
Outdoor Sound Power dBA
68
Air Circulation (Indoor – High Fan) Cooling l/sec
342
Air Circulation (Indoor – High Fan) Heating l/sec
342
Indoor Unit Dimensions mm (Height x Width x Depth)
235 x 1390 x 705
Indoor Unit Weight kg
31.00
Outdoor Unit Dimensions mm (Height x Width x Depth)
716 x 820 x 315
Outdoor Unit Weight kg
42.00
Piping Connects mm Ø (Liquid / Gas)
6.35 / 12.7
Pipe Length m (Max (Precharged))
30 (20)
Max Height Difference m
25
Operation Range Cooling °CDB (Min to Max)
-10 to 50
Operation Range Heating °CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
Refrigerant Amount g
1,250
Description
7.10 kW Cooling8.00 kW HeatingWireless controller UTY-LBTYH
