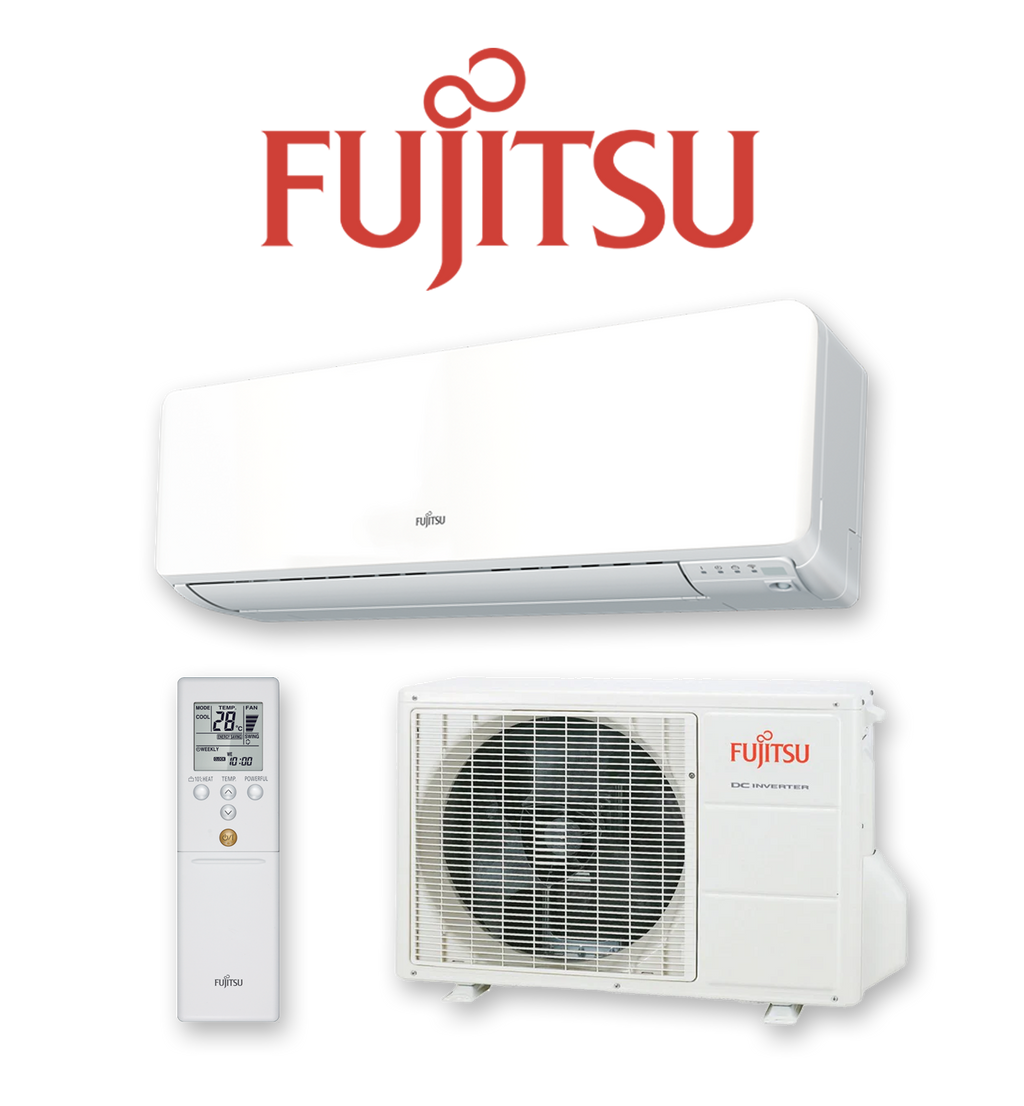

FUJITSU Lifestyle ASTH34KMTD 9.4kW Inverter Wall Split System Air Conditioner

9.4kW Cooling | 10.3kW Heating
Fujitsu Lifestyle Range ASTH34KMTD Reverse Cycle Inverter Split System Air Conditioner

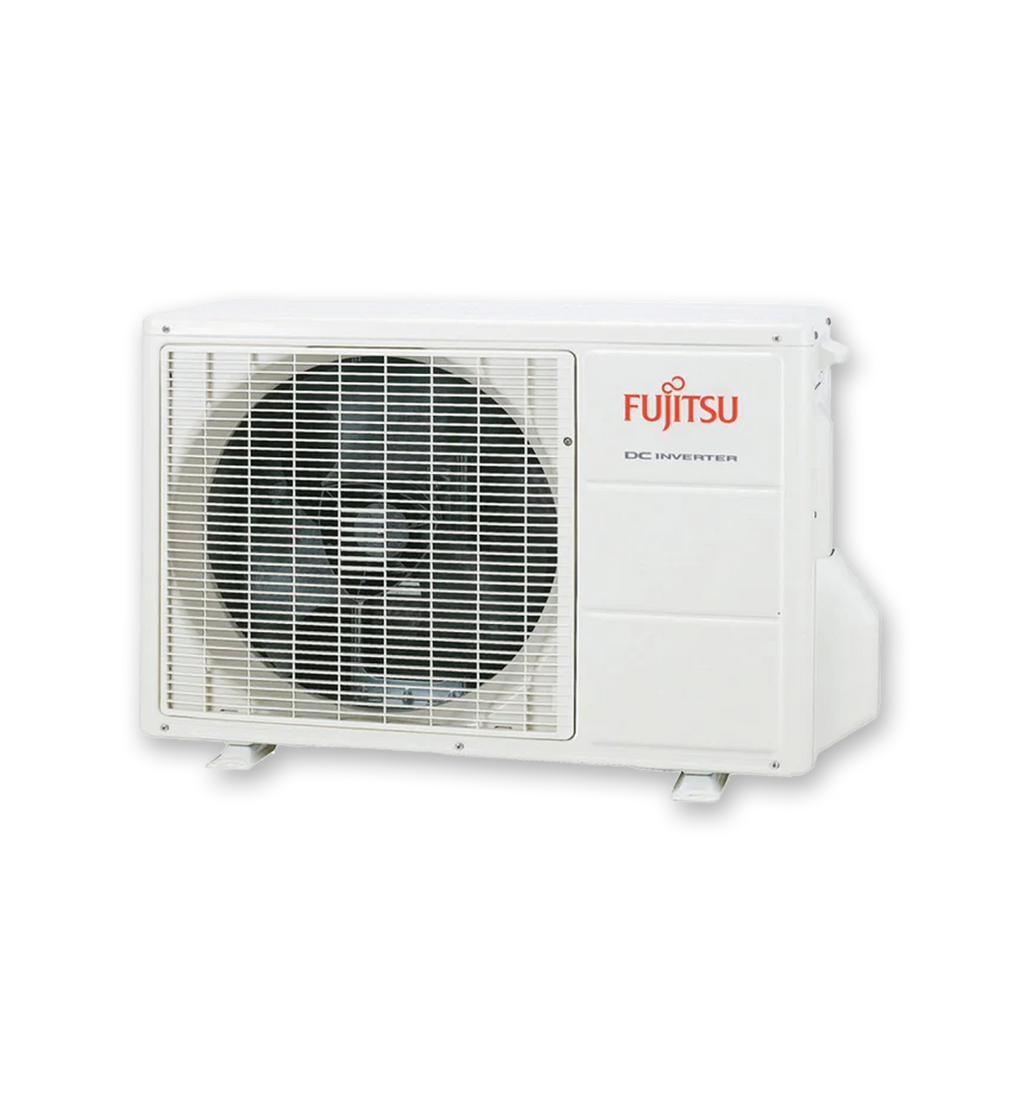

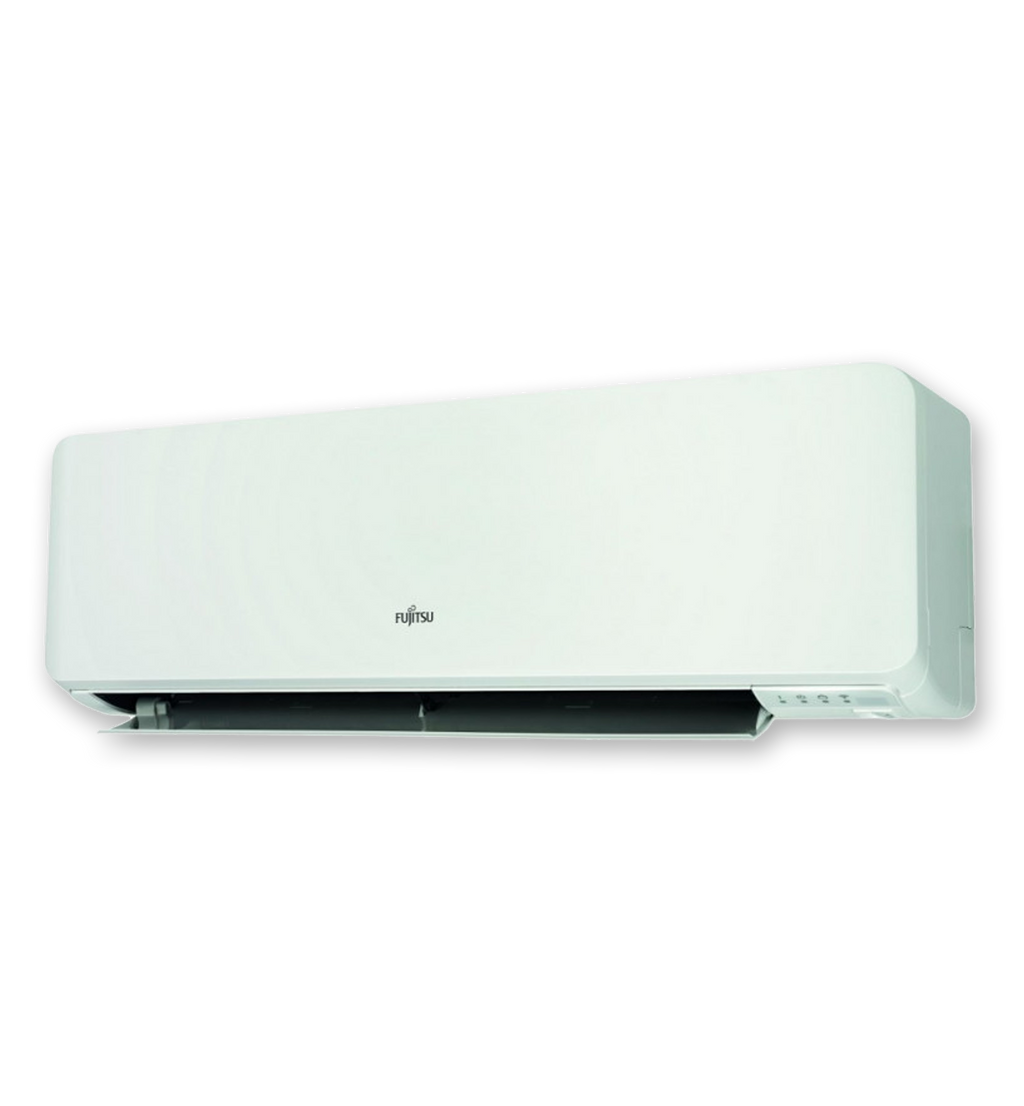

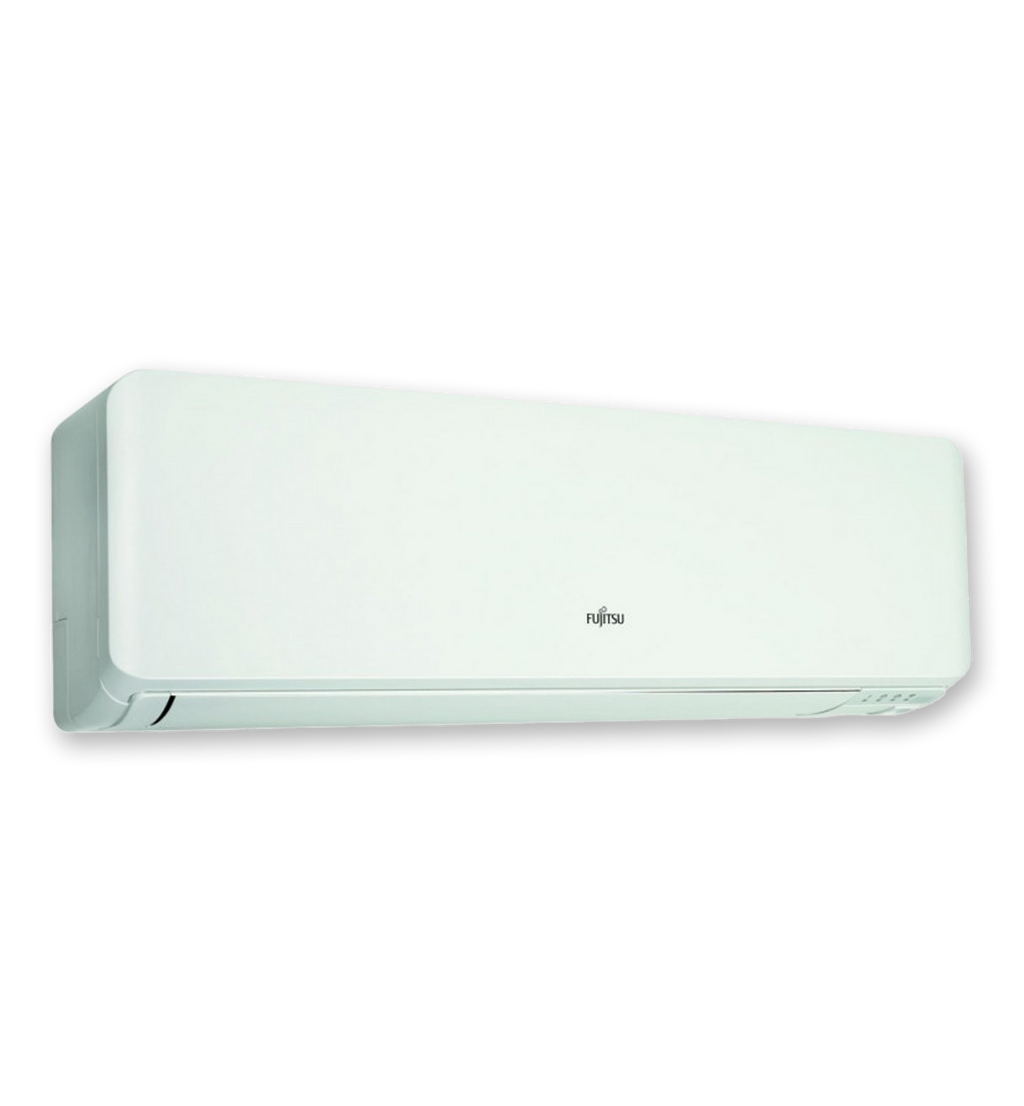

Indoor model ASTH34KMTD | Outdoor model AOTH34KMTD
Wireless Remote
Specifications:
Indoor unit
ASTH34KMTD
Outdoor unit
AOTH34KMTD
Operation Type
Reverse Cycle
Power Source V/Ph/Hz
230 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))
9.50 (2.9 – 11.2)
Heating Capacity kW (Rated (Min – Max))
10.30 (2.9 – 11.7)
Input Power Cooling kW (Rated (Min – Max))
2.72 (0.66 – 4.2)
Input Power Heating kW (Rated (Min – Max))
3.04 (0.68 – 3.8)
EER Cooling kW/kW
3.49
COP Heating kW/kW
3.39
Star Rating Cooling (0-10) (Hot / Average / Cold)
4 / 3.5 / 4
Star Rating Heating (0-10) (Hot / Average / Cold)
3.5 / 2.5 / 1.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)
5.501 / 5.242 / 5.633
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)
5.079 / 4.1 / 3.474
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
6.118 / 6.566 / 7.494
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
5.161 / 4.58 / 3.964
Running Current amps (Cooling / Heating)
12 / 13.4
Moisture Removal l/hr
4.9
Indoor Sound Pressure Cooling dBA (High / Quiet)
51 / 34
Indoor Sound Pressure Heating dBA (High / Quiet)
51 / 33
Outdoor Sound Pressure dBA (Cooling / Heating)
58 / 59
Outdoor Sound Power dBA
70
Air Circulation (Indoor – High Fan) Cooling l/sec
381
Air Circulation (Indoor – High Fan) Heating l/sec
372
Indoor Unit Dimensions mm (Height x Width x Depth)
340 x 1150 x 280
Indoor Unit Weight kg
16.50
Outdoor Unit Dimensions mm (Height x Width x Depth)
998 x 940 x 320
Outdoor Unit Weight kg
62.00
Piping Connects mm Ø (Liquid / Gas)
9.52 / 15.88
Pipe Length m (Max (Precharged))
50 (25)
Max Height Difference m
30
Operation Range Cooling °CDB (Min to Max)
-10 to 50
Operation Range Heating °CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
