FUJITSU Lifestyle ASTH30KMTD 8.5kW Inverter Wall Split System Air Conditioner

7.1kW Cooling | 8.5kW Heating

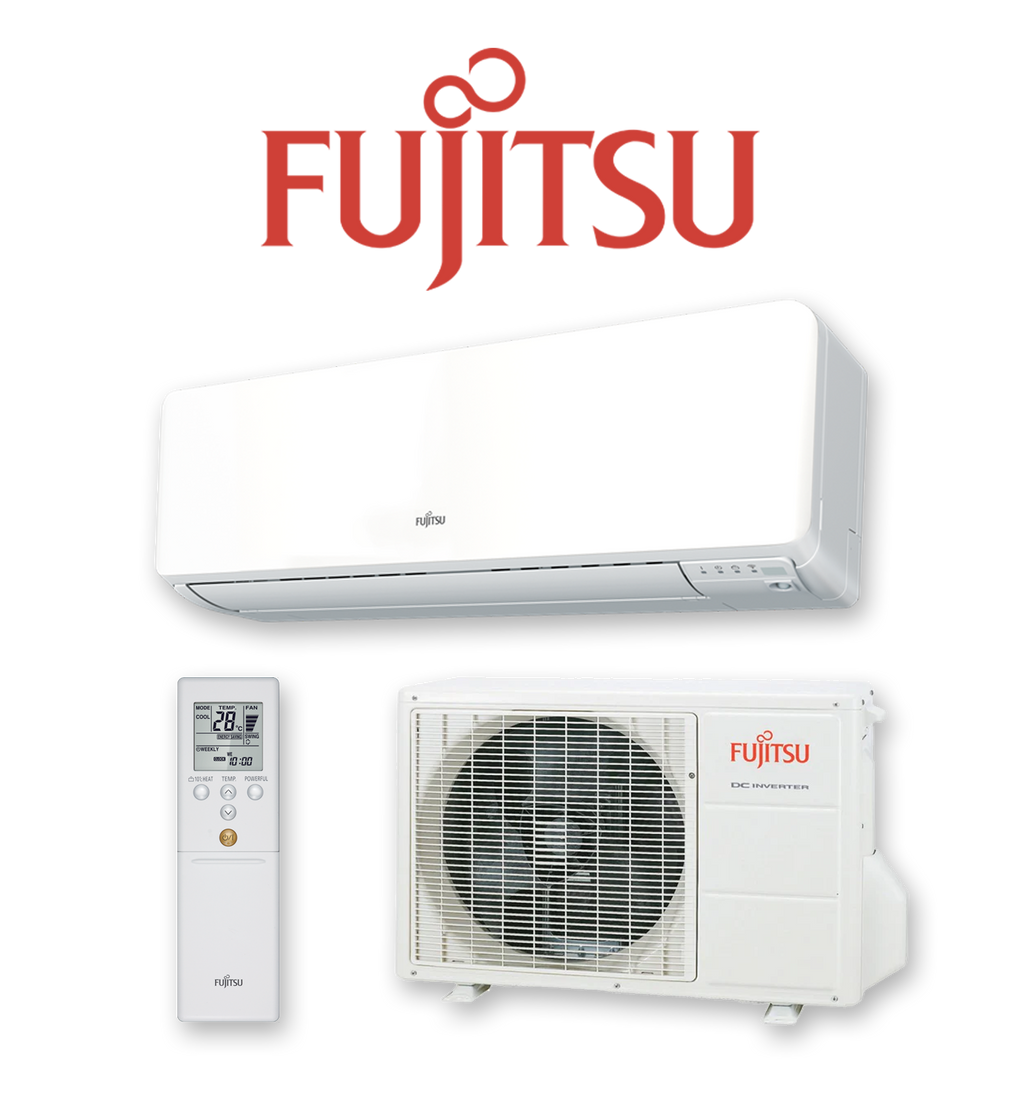

Fujitsu Lifestyle Range SET-ASTH30KMTD Reverse Cycle Inverter Split System Air Conditioner
Includes Indoor ASTH30KMTD | Outdoor AOTH30KMTD

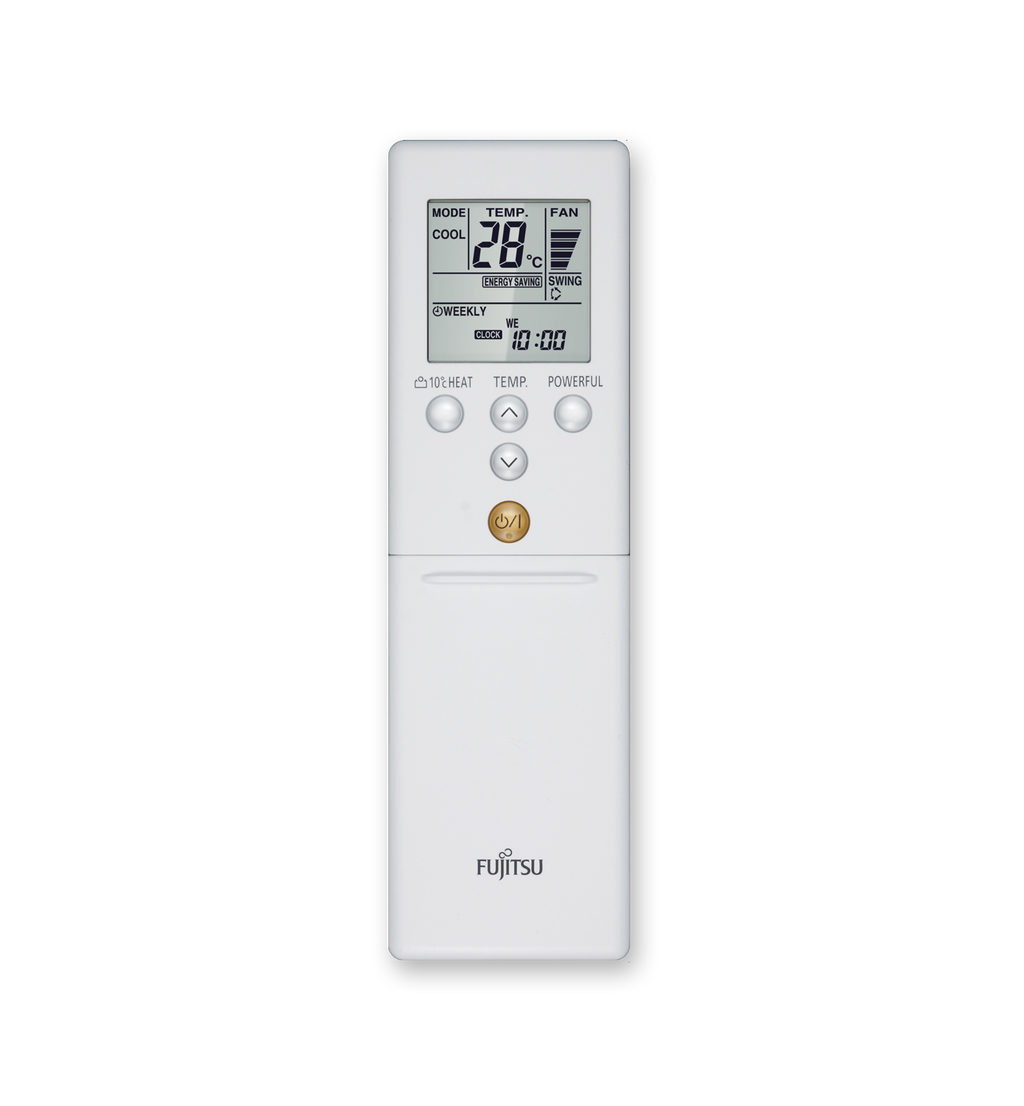

Wireless Remote
Specifications:

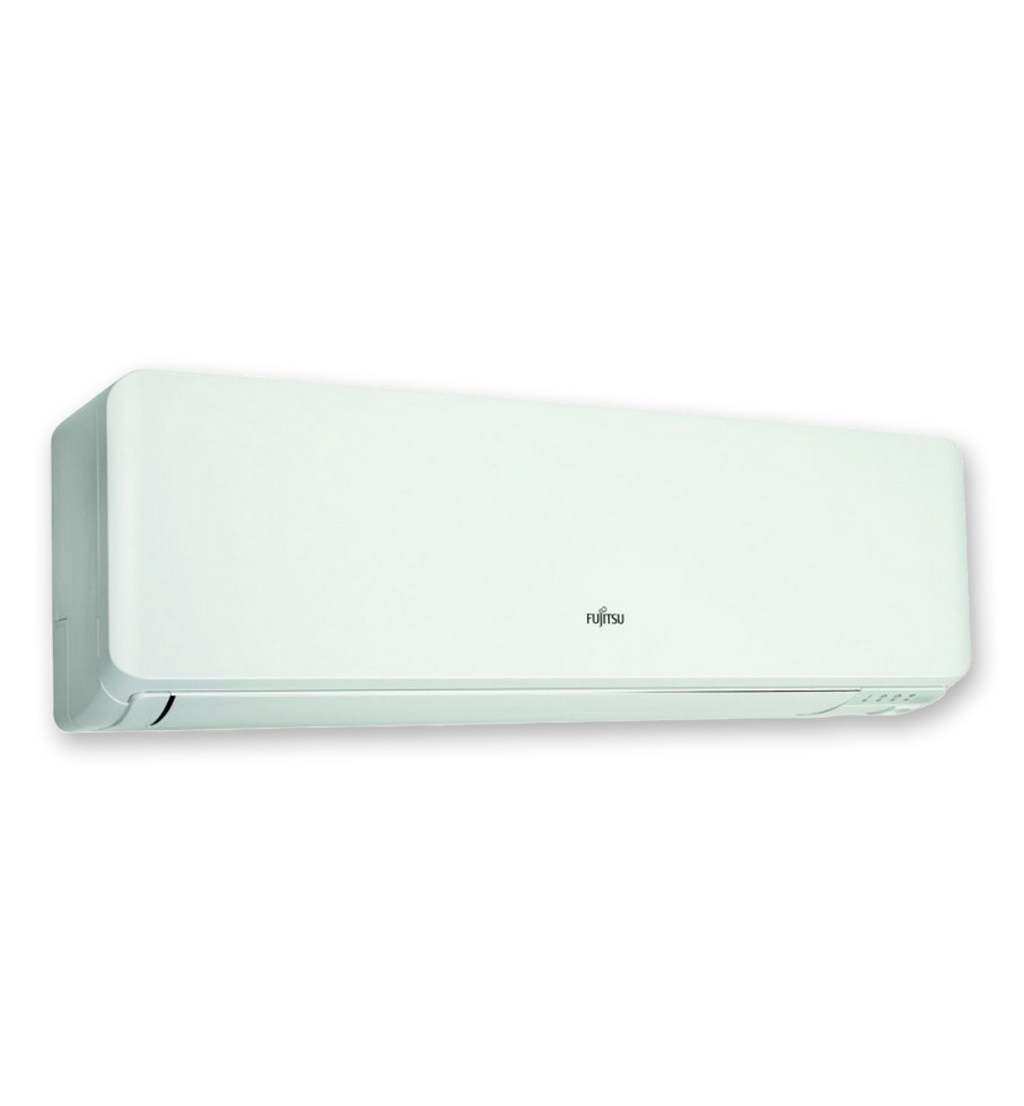

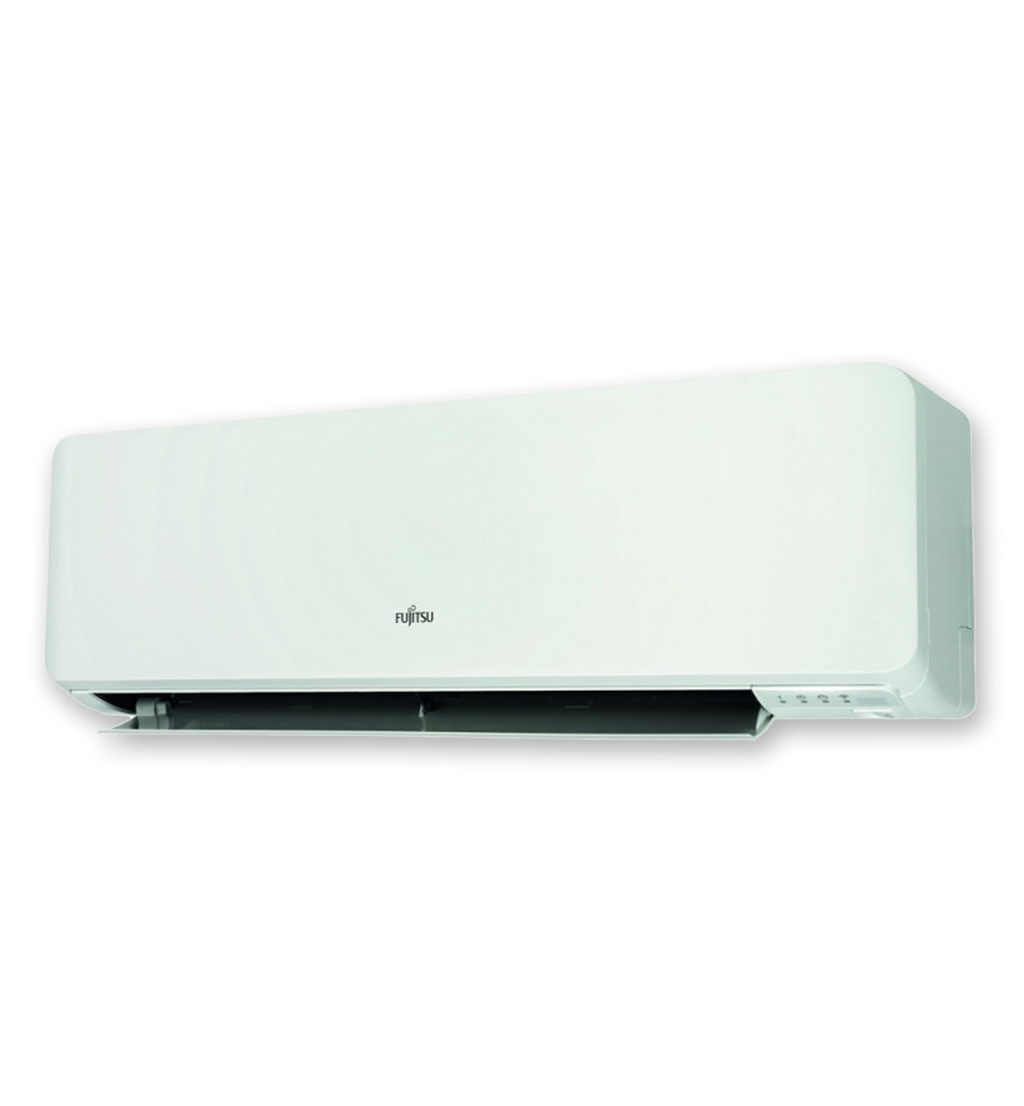

Indoor Unit

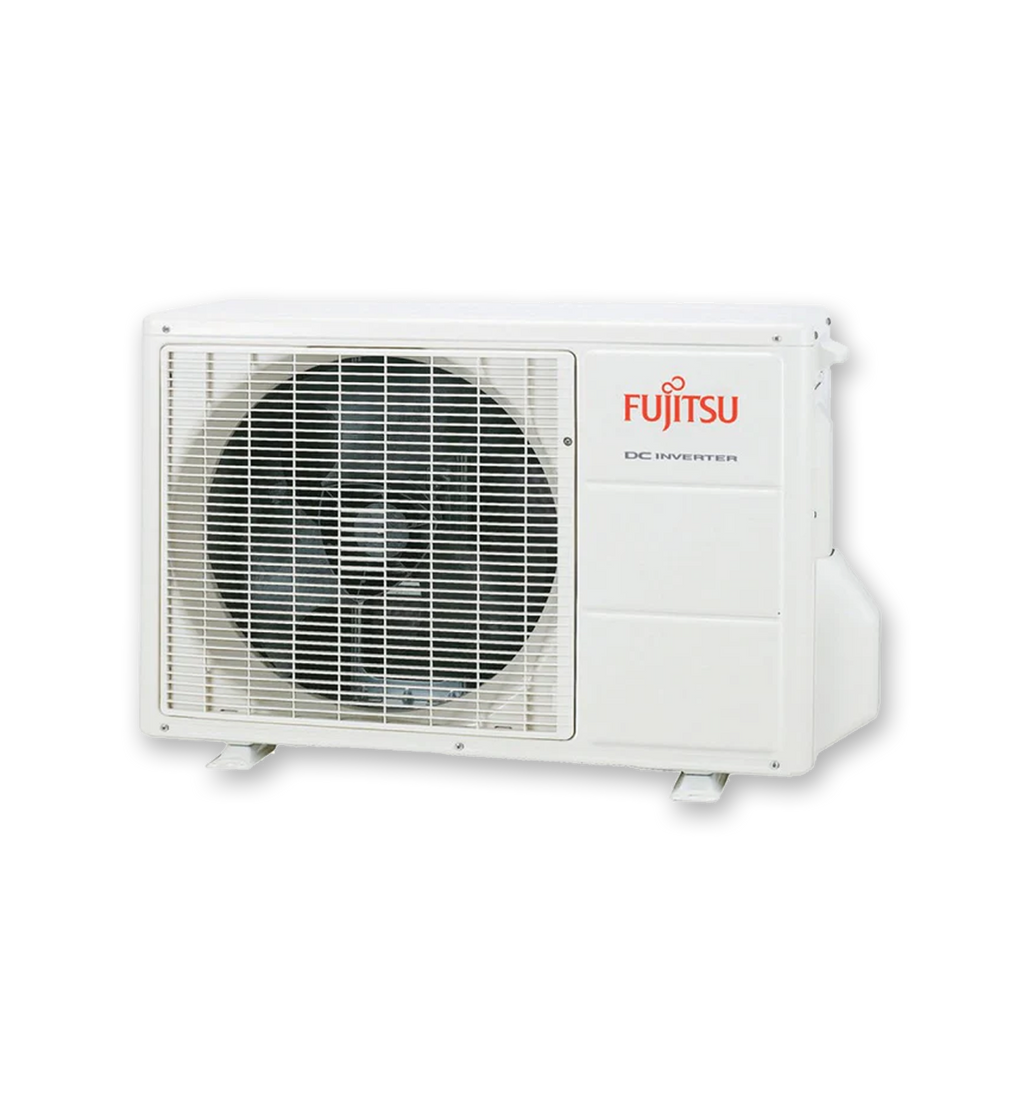

Outdoor Unit

Operation Type
ASTH30KMTD

AOTH03KMTD
Reverse Cycle
Power Source V/Ph/Hz
230 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))
8.50 (2.9 – 10.5)
Heating Capacity kW (Rated (Min – Max))
9.00 (2.7 – 11.2)
Input Power Cooling kW (Rated (Min – Max))
2.49 (0.6 – 4)
Input Power Heating kW (Rated (Min – Max))
2.39 (0.48 – 3.6)
EER Cooling kW/kW
3.41
COP Heating kW/kW
3.77
Star Rating Cooling (0-10) (Hot / Average / Cold)
4 / 3.5 / 4
Star Rating Heating (0-10) (Hot / Average / Cold)
4 / 3 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)
5.56 / 5.284 / 5.716
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)
5.55 / 4.534 / 3.841
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
6.233 / 6.729 / 7.766
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
5.611 / 5.02 / 4.353
Running Current amps (Cooling / Heating)
11 / 10.6
Moisture Removal l/hr
4.4
Indoor Sound Pressure Cooling dBA (High / Quiet)
51 / 32
Indoor Sound Pressure Heating dBA (High / Quiet)
48 / 32
Outdoor Sound Pressure dBA (Cooling / Heating)
53 / 55
Outdoor Sound Power dBA
65
Air Circulation (Indoor – High Fan) Cooling l/sec
381
Air Circulation (Indoor – High Fan) Heating l/sec
350
Indoor Unit Dimensions mm (Height x Width x Depth)
340 x 1150 x 280
Indoor Unit Weight kg
16.50
Outdoor Unit Dimensions mm (Height x Width x Depth)
788 x 940 x 320
Outdoor Unit Weight kg
53.00
Piping Connects mm Ø (Liquid / Gas)
9.52 / 15.88
Pipe Length m (Max (Precharged))
50 (20)
Max Height Difference m
30
Operation Range Cooling °CDB (Min to Max)
-10 to 50
Operation Range Heating °CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
