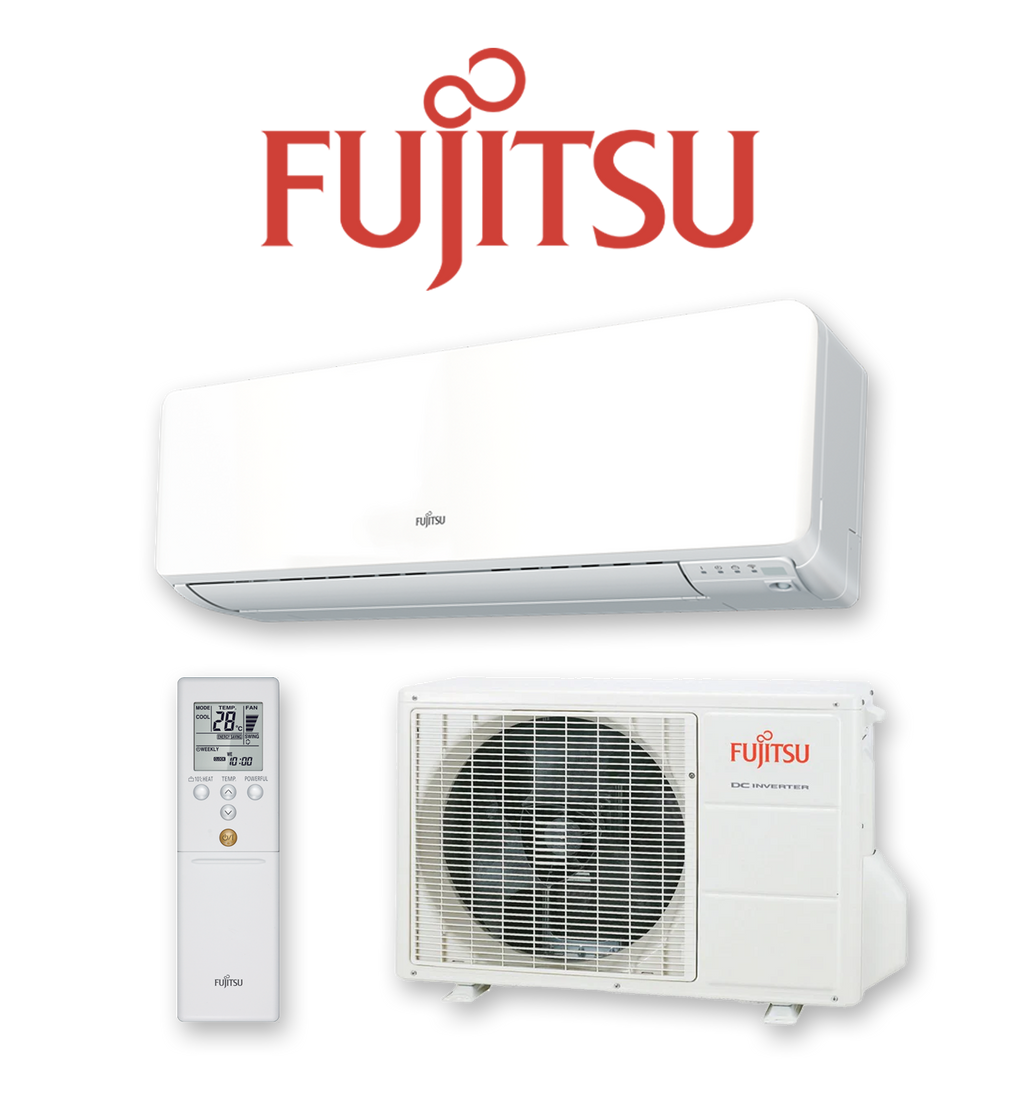

FUJITSU Lifestyle ASTH22KMTD 6.0kW Inverter Wall Split System Air Conditioner

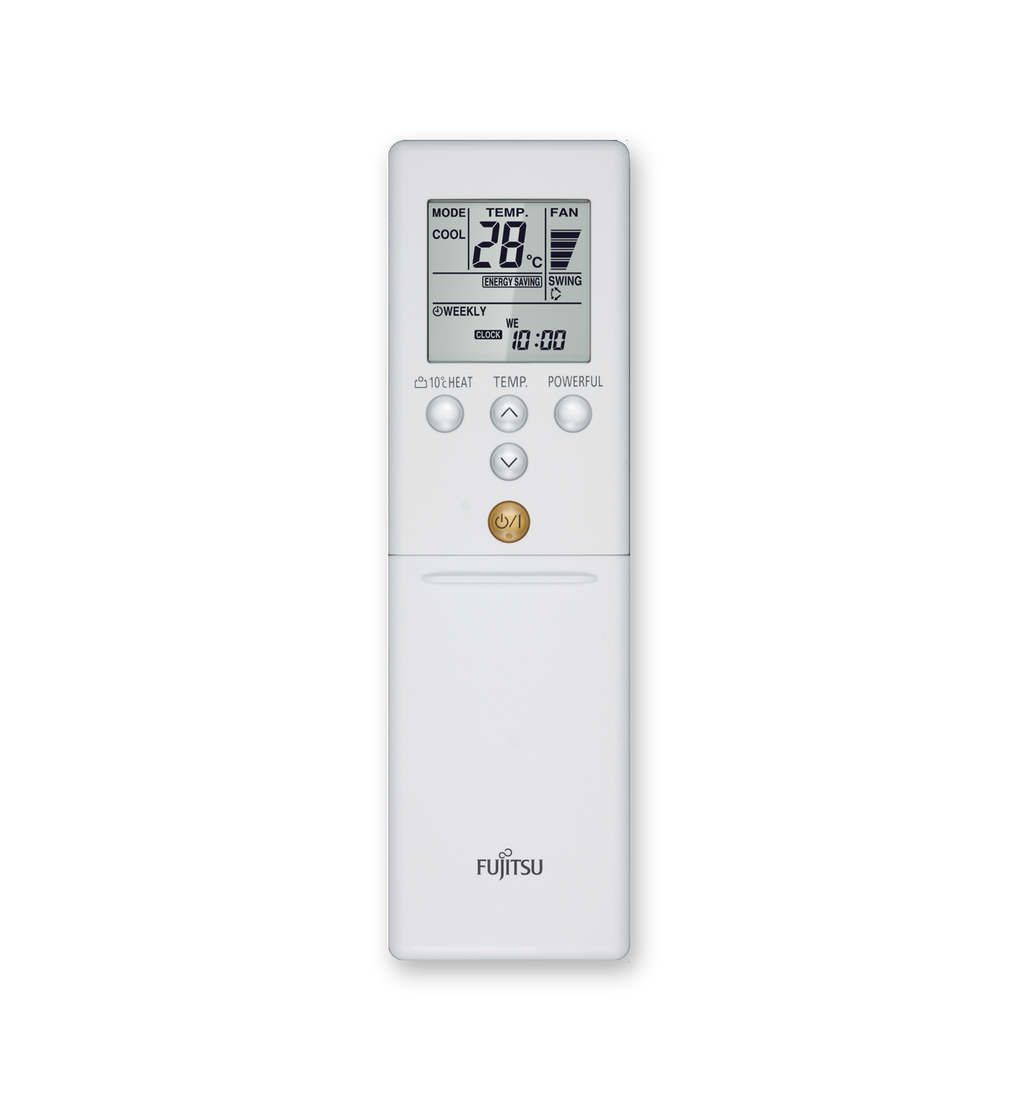

6.0kW Cooling | 7.2kW HeatingFujitsu Lifestyle Range SET-ASTH22KMTD Reverse Cycle Inverter Split System Air ConditionerIncludes Indoor ASTH22KMTD | Outdoor AOTH22KMTDWireless Remote
Specifications:
Indoor unit

Outdoor unit
ASTH22KMTD

AOTH22KMTD
Operation Type
Reverse Cycle
Power Source V/Ph/Hz
230 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))
6.00 (1.1 – 7.5)
Heating Capacity kW (Rated (Min – Max))
7.20 (1.1 – 9.4)
Input Power Cooling kW (Rated (Min – Max))
1.58 (0.24 – 2.72)
Input Power Heating kW (Rated (Min – Max))
1.7 (0.14 – 2.75)
EER Cooling kW/kW
3.8
COP Heating kW/kW
4.24
Star Rating Cooling (0-10) (Hot / Average / Cold)
4.5 / 4 / 4.5
Star Rating Heating (0-10) (Hot / Average / Cold)
3 / 2.5 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)
6.009 / 5.714 / 6.146
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)
4.64 / 4.258 / 3.722
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
6.672 / 7.138 / 8.111
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
4.631 / 4.393 / 3.951
Running Current amps (Cooling / Heating)
7.1 / 7.7
Moisture Removal l/hr
2.3
Indoor Sound Pressure Cooling dBA (High / Quiet)
48 / 29
Indoor Sound Pressure Heating dBA (High / Quiet)
48 / 29
Outdoor Sound Pressure dBA (Cooling / Heating)
49 / 52
Outdoor Sound Power dBA
61
Air Circulation (Indoor – High Fan) Cooling l/sec
294
Air Circulation (Indoor – High Fan) Heating l/sec
300
Indoor Unit Dimensions mm (Height x Width x Depth)
280 x 980 x 240
Indoor Unit Weight kg
12.50
Outdoor Unit Dimensions mm (Height x Width x Depth)
716 x 820 x 315
Outdoor Unit Weight kg
42.00
Piping Connects mm Ø (Liquid / Gas)
6.35 / 12.7
Pipe Length m (Max (Precharged))
30 (15)
Max Height Difference m
25
Operation Range Cooling °CDB (Min to Max)
-10 to 50
Operation Range Heating °CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
