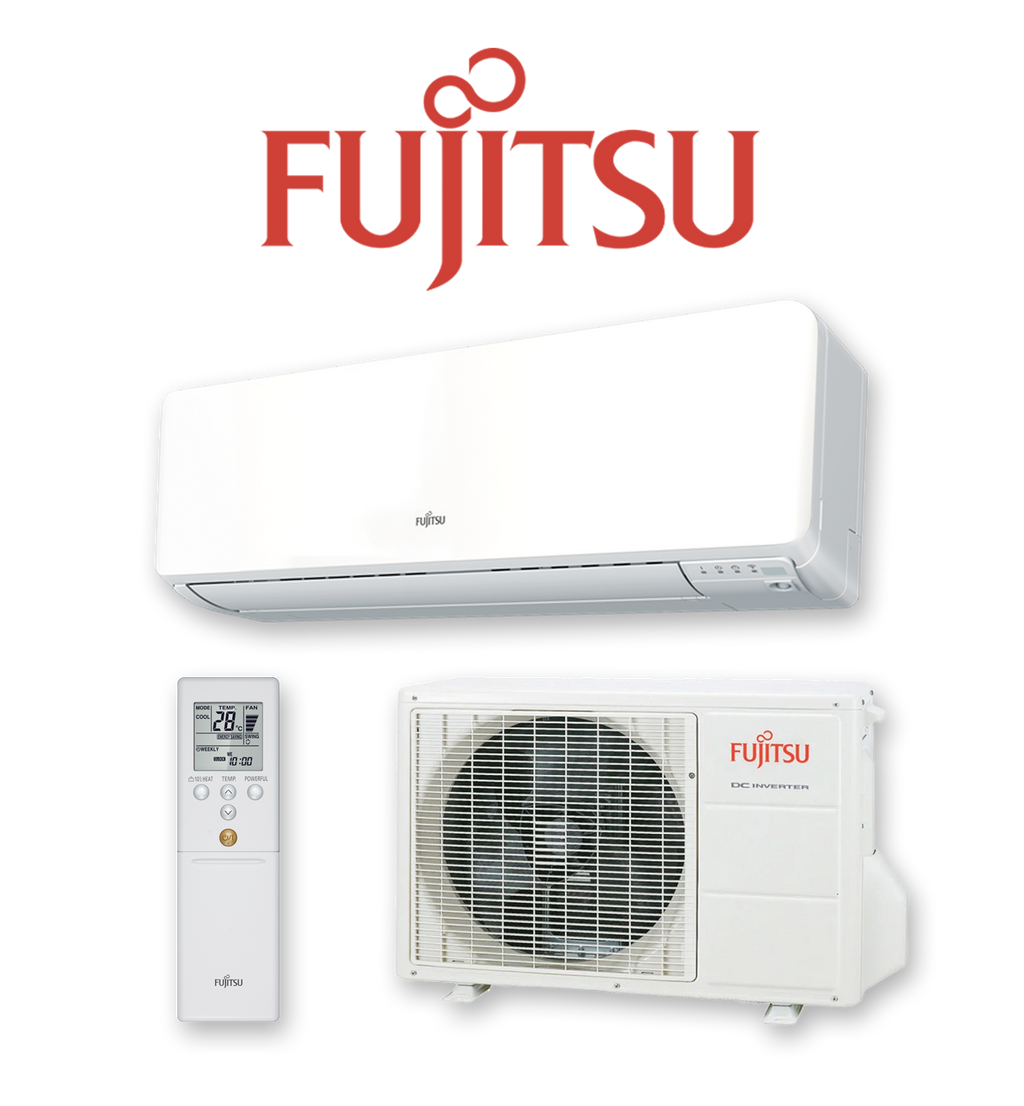

FUJITSU Lifestyle ASTH18KMTD 5.0kW Inverter Wall Split System Air Conditioner

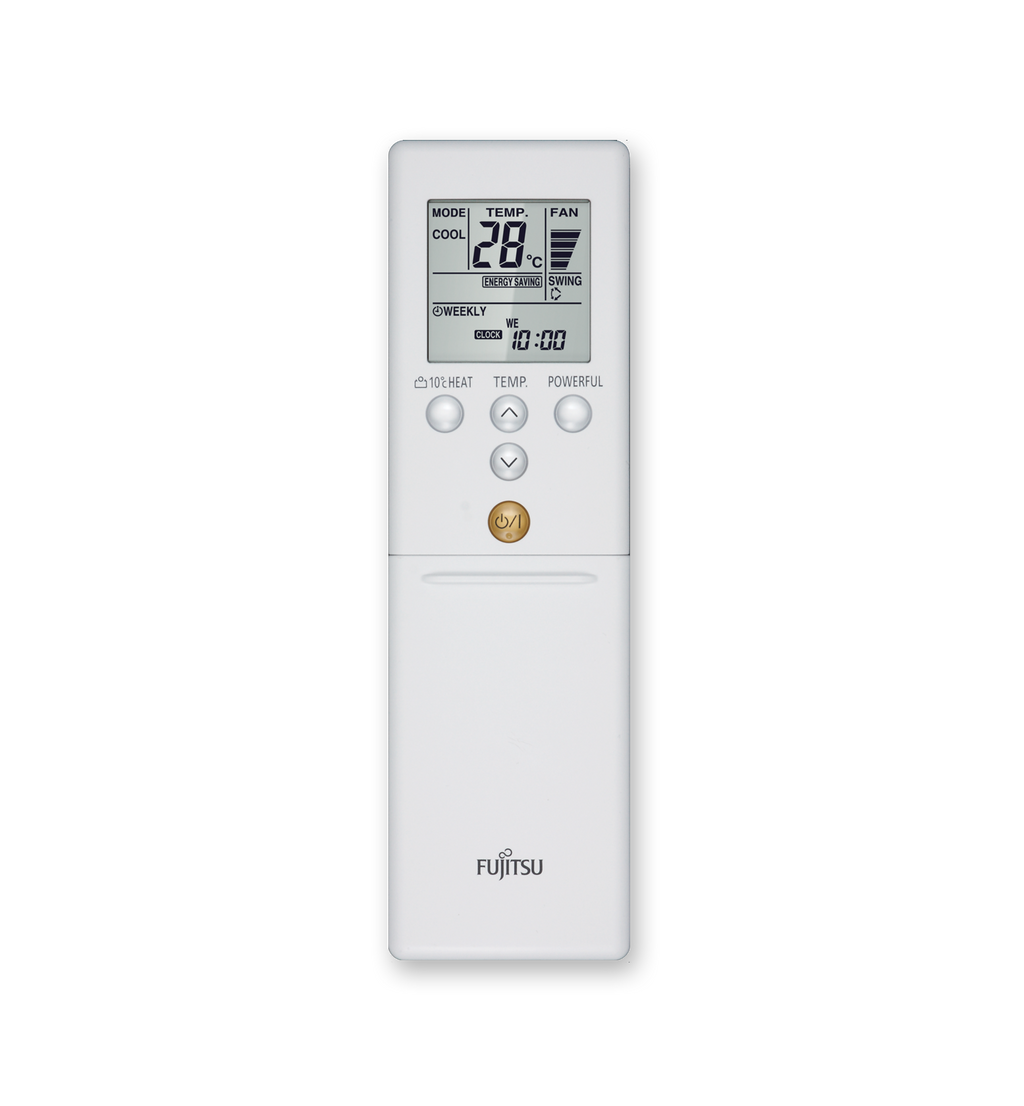

– 5.0kW Cooling | 6.0kW Heating- Fujitsu Lifestyle Range SET-ASTH18KMTD Reverse Cycle Inverter Split System Air Conditioner- Includes Indoor ASTH18KMTD | Outdoor AOTH18KMTD- Wireless Remote
Specifications:
Indoor unit

Outdoor unit

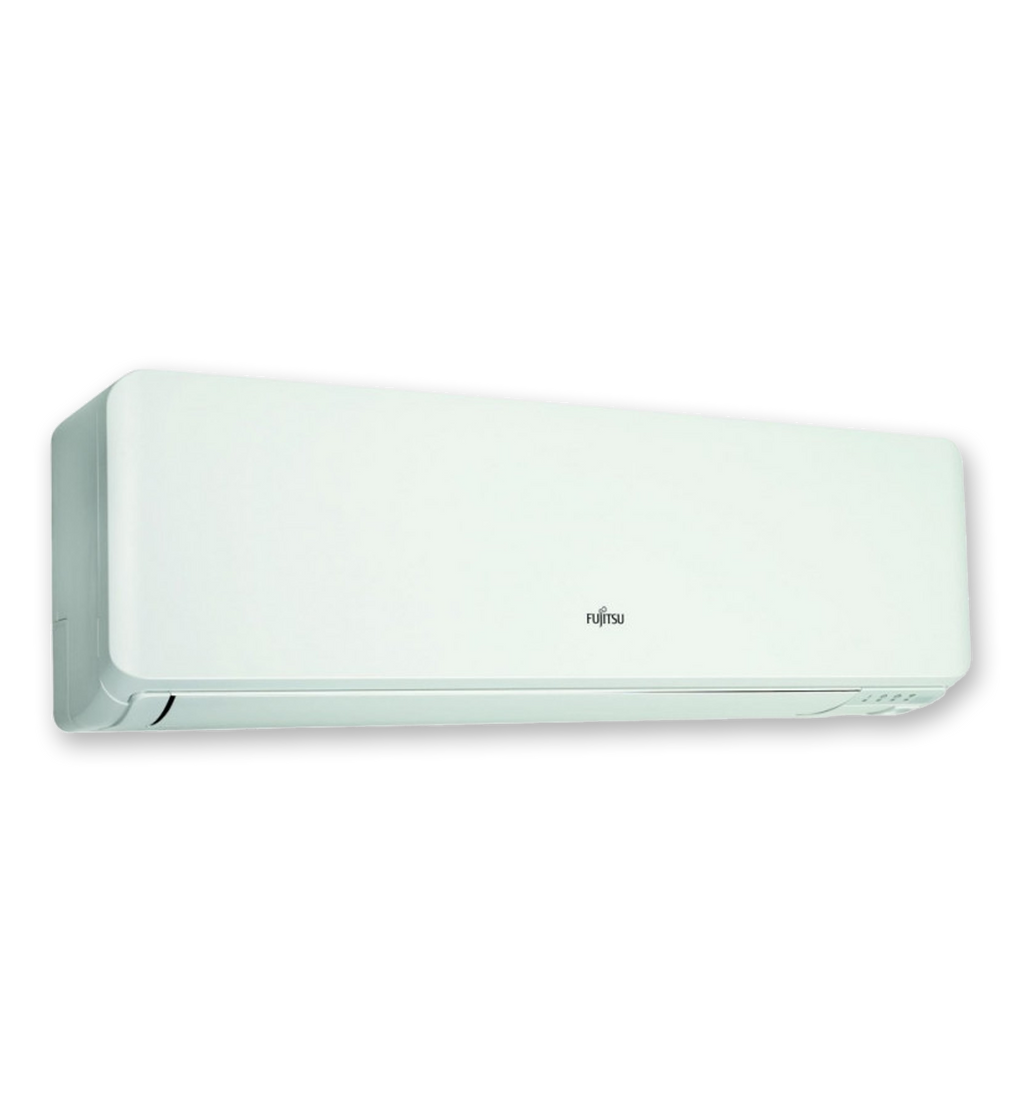

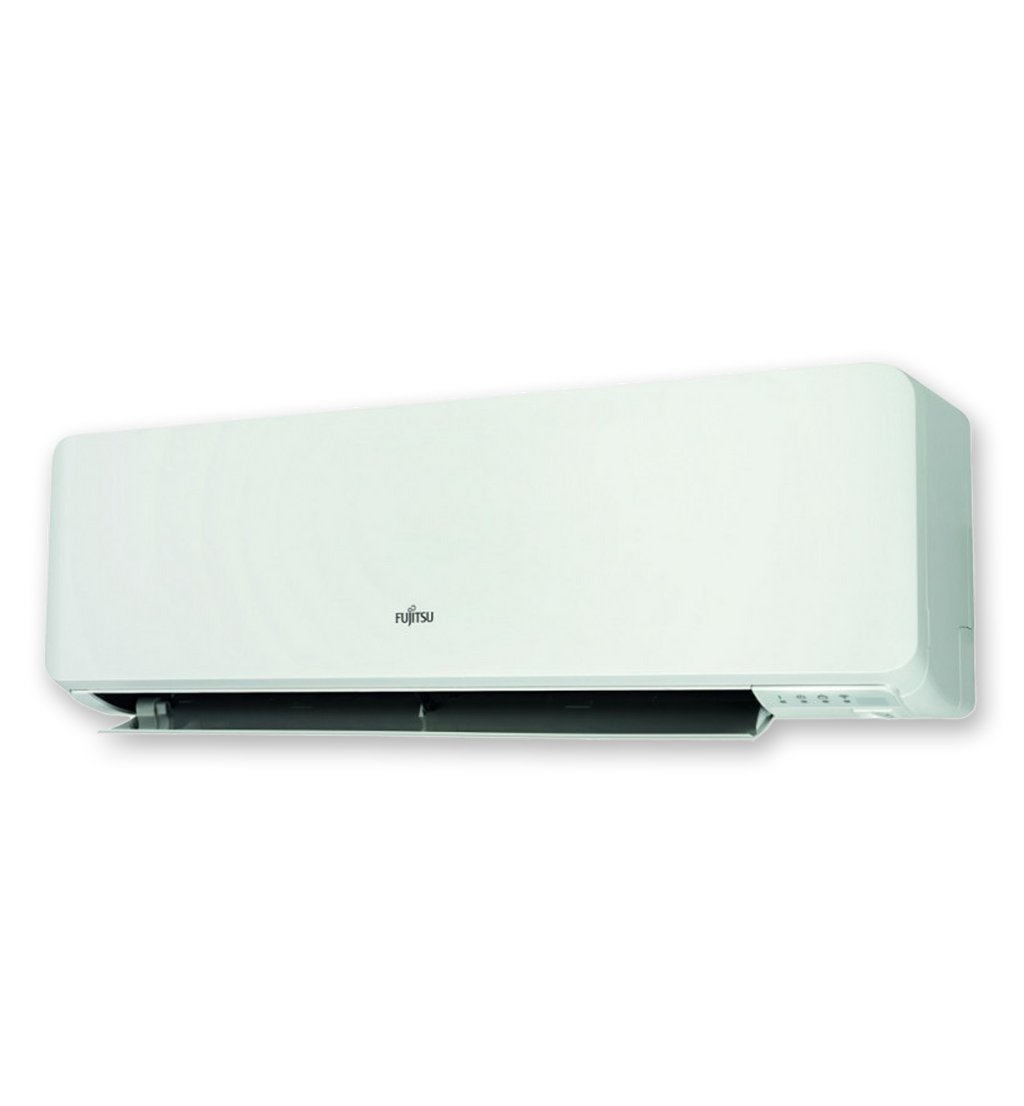

ASTH18KMTD

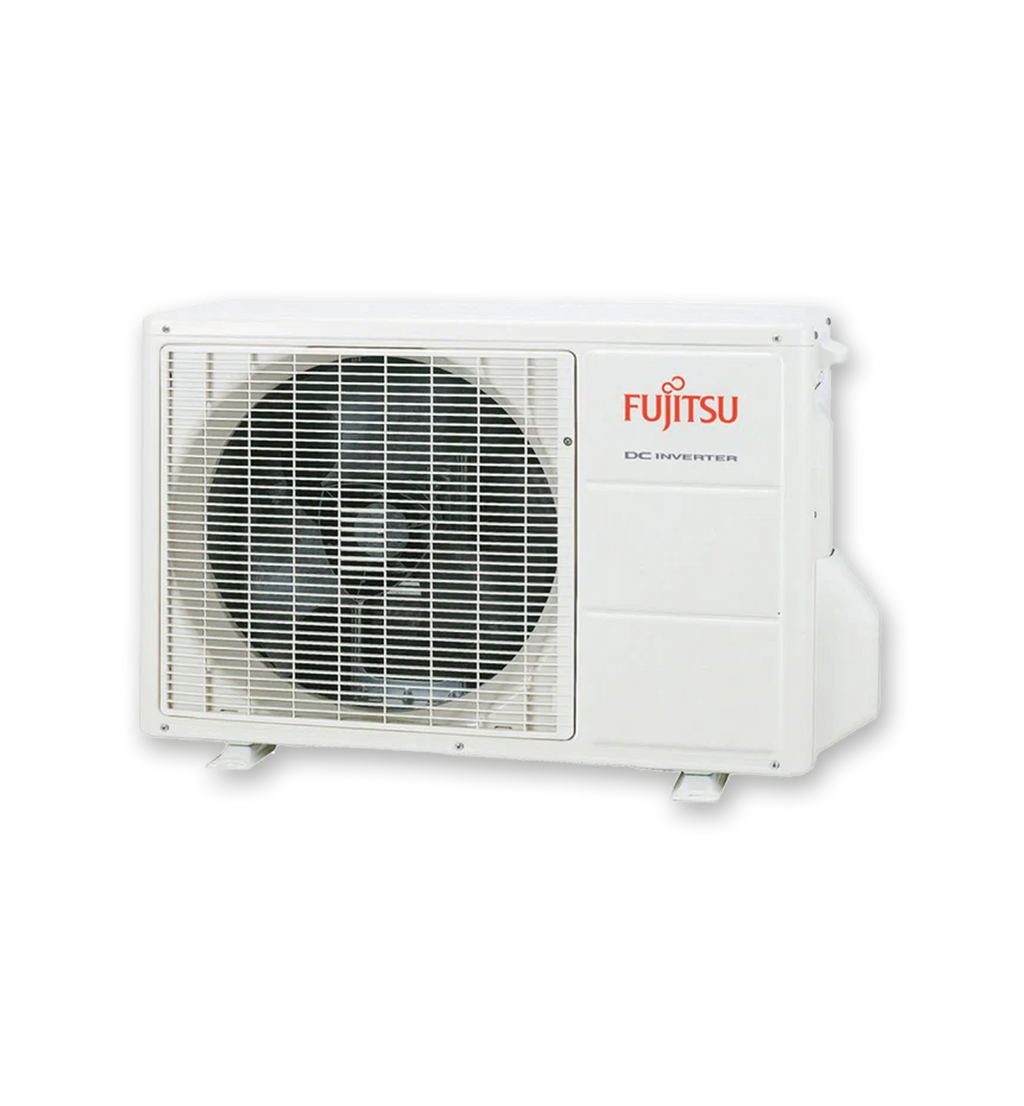

AOTH18KMTD
Operation Type
Reverse Cycle
Power Source V/Ph/Hz
230 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))
5.00 (1 – 6.5)
Heating Capacity kW (Rated (Min – Max))
6.00 (1.05 – 8.7)
Input Power Cooling kW (Rated (Min – Max))
1.16 (0.24 – 1.93)
Input Power Heating kW (Rated (Min – Max))
1.28 (0.14 – 2.75)
EER Cooling kW/kW
4.31
COP Heating kW/kW
4.69
Star Rating Cooling (0-10) (Hot / Average / Cold)
5 / 4.5 / 5
Star Rating Heating (0-10) (Hot / Average / Cold)
3.5 / 3 / 2.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)
6.652 / 6.3 / 6.726
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)
5.004 / 4.676 / 4.181
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
7.428 / 7.934 / 9.086
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)
4.631 / 4.393 / 4.376
Running Current amps (Cooling / Heating)
5.3 / 5.8
Moisture Removal l/hr
1.3
Indoor Sound Pressure Cooling dBA (High / Quiet)
46 / 29
Indoor Sound Pressure Heating dBA (High / Quiet)
46 / 29
Outdoor Sound Pressure dBA (Cooling / Heating)
47 / 49
Outdoor Sound Power dBA
59
Air Circulation (Indoor – High Fan) Cooling l/sec
283
Air Circulation (Indoor – High Fan) Heating l/sec
286
Indoor Unit Dimensions mm (Height x Width x Depth)
280 x 980 x 240
Indoor Unit Weight kg
12.50
Outdoor Unit Dimensions mm (Height x Width x Depth)
716 x 820 x 315
Outdoor Unit Weight kg
42.00
Piping Connects mm Ø (Liquid / Gas)
6.35 / 12.7
Pipe Length m (Max (Precharged))
30 (15)
Max Height Difference m
25
Operation Range Cooling °CDB (Min to Max)
-10 to 50
Operation Range Heating °CDB (Min to Max)
-15 to 24
Refrigerant Type
R32
