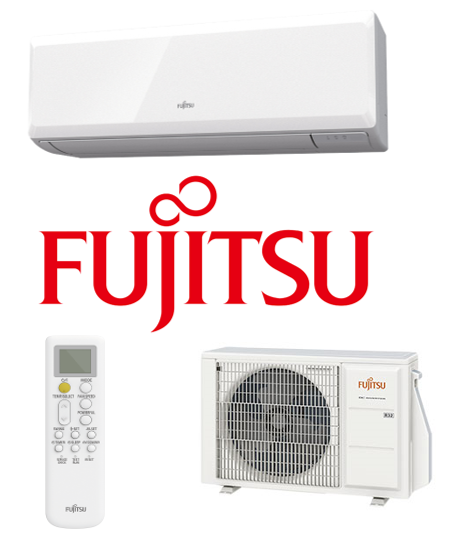

FUJITSU ASTH24KNTA 7.1kW Comfort Reverse Cycle Inverter Split System

Indoor Unit: ASTH24KNTA

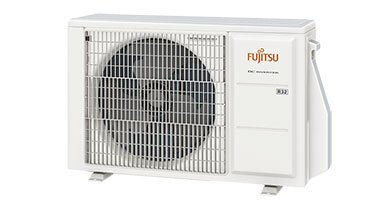

Outdoor Unit: AOTH24KNTA
Fujitsu 7.1kW Cooling | 8.0kW Heating
Reverse Cycle Inverter Split System
High Energy efficiency on Cooling and Heating.
Specifications:
Model No.
Indoor Unit
ASTH24KNTA
Outdoor Unit
AOTH24KNTA
Power Source
V/ Ph / Hz
220-240 1 1 / 50
Capacity
Cooling
kW
7.1
Heating
kW
8
Input Power
Cooling/Heating
kW
2.2
EER
Cooling
kW/kW
3.23
COP
Heating
3.85
Star Rating
Cooling: Hot/Average/Cold
3.5/3/3.5
Heating: Hot/Average/Cold
3.5 / 2.5 / 2
Max. Operating Current
A
17
Recommended Breaker Size
A
20
Sound Pressure Level
Indoor (Cooling)
Quiet/High
dBA
31 1 50
Indoor (Heating)
Quiet/High
31 / 48
Outdoor (Cooling / Heating)
High
55 / 56
Sound Power Level
Outdoor
High
67
Airflow Rate
Indoor (Cooling)
Quiet/High
m3/h
530 / 1210
Indoor (Heating)
Quiet/High
530/ 1 120
Dimensions (H x W x D)
Indoor
mm
280 x 980 x 240
Outdoor
632 x 799 x 290
Net Weight
Indoor
kg
12.5
Outdoor
39
Connection Pipe Diameter (Liquid / Gas)
mm
6.35 / 12.70
Drain Hose Diameter (I.D./O.D.)
13.0 / 15.8 to 16.7
Max Pipe Length (Pre-Charge)
m
30 (1 5)
Max Height Difference
25
Operation Range
Outdoor
Cooling
OCDB
-10 to 50
Heating
-15 to 24
Refrigerant
Type (Global Warming Potential)
R32
Charge
kg
1200
