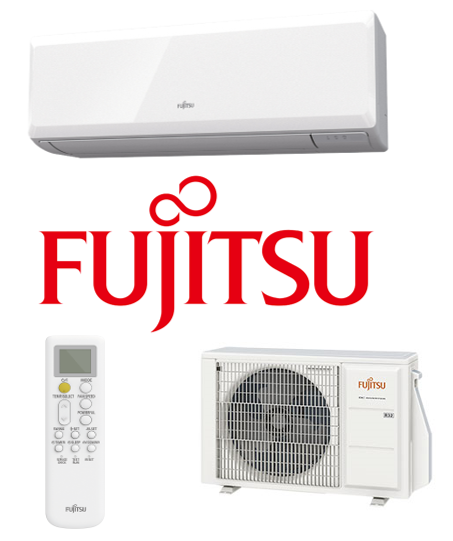

FUJITSU ASTH22KNTA 6.0kW Comfort Reverse Cycle Inverter Split System

Indoor Unit: ASTH22KNTA

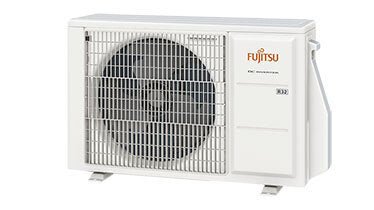

Outdoor Unit: AOTH22KNTA
Fujitsu 6.0kW Cooling | 6.5kW Heating
Reverse Cycle Inverter Split System AC
High Energy efficiency on Cooling and Heating.
Specifications
Model No.
Indoor Unit
ASTH22KNTA
Outdoor Unit
AOTH22KNTA
Power Source
V/ Ph / Hz
220-240 1 1 / 50
Capacity
Cooling
kW
6
Heating
kW
6.5
Input Power
Cooling/Heating
kW
1.78
EER
Cooling
kW/kW
3.37
COP
Heating
3.51
Star Rating
Cooling: Hot/Average/Cold
3.5 / 3.5 / 3.5
Heating: Hot/Average/Cold
3/2/ 1.5
Max. Operating Current
A
1 3.5
Recommended Breaker Size
A
16
Sound Pressure Level
Indoor (Cooling)
Quiet/High
dBA
31 148
Indoor (Heating)
Quiet/High
31 148
Outdoor (Cooling / Heating)
High
54/ 53
Sound Power Level
Outdoor
High
68
Airflow Rate
Indoor (Cooling)
Quiet/High
m3/h
420 / 880
Indoor (Heating)
Quiet/High
420 / 880
Dimensions (H x W x D)
Indoor
mm
270 x 834 x 232
Outdoor
632 x 799 x 290
Net Weight
Indoor
kg
1 1
Outdoor
36
Connection Pipe Diameter (Liquid / Gas)
mm
6.35 / 12.70
Drain Hose Diameter (I.D./O.D.)
13.0 / 15.8 to 16.7
Max Pipe Length (Pre-Charge)
m
25 (1 5)
Max Height Difference
20
Operation Range
Outdoor
Cooling
OCDB
-10 to 50
Heating
-15 to 24
Refrigerant
Type (Global Warming Potential)
R32
Charge
kg
960
