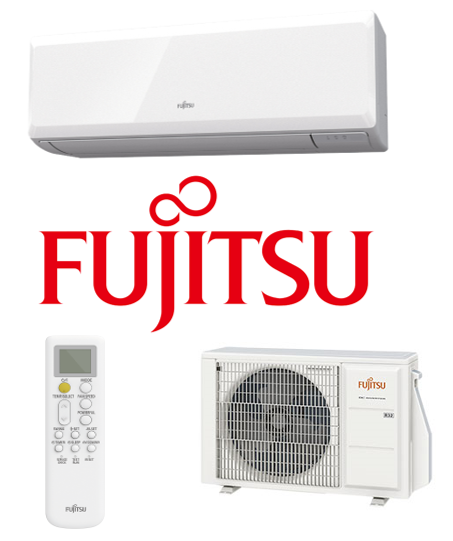

FUJITSU ASTH14KNCA 4.2kW Comfort Reverse Cycle Inverter Split System

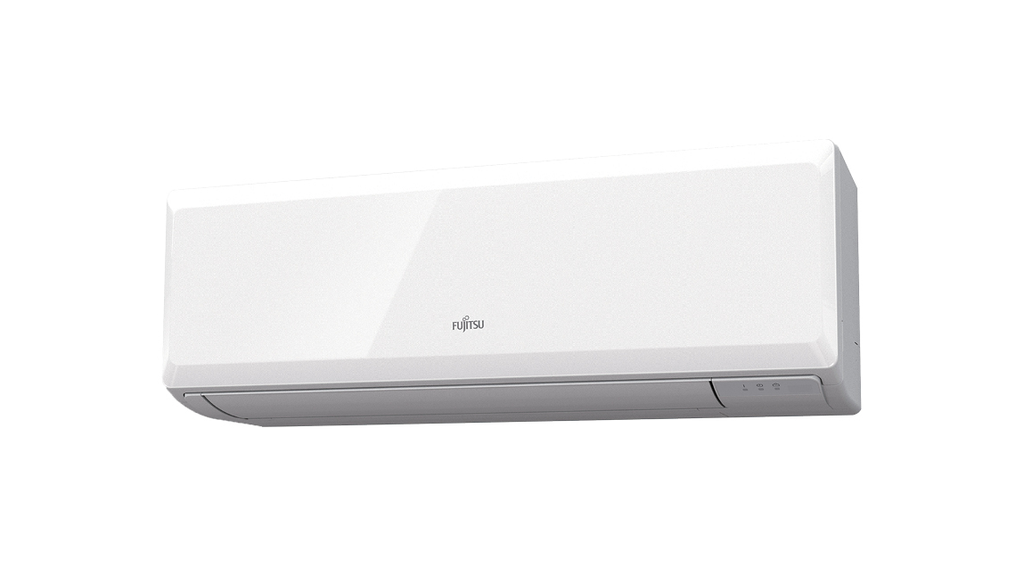

Indoor Unit: ASTH14KMTC

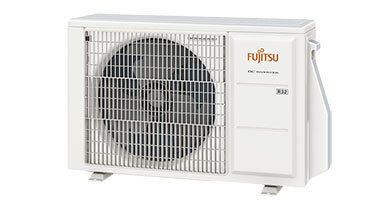

Outdoor Unit: AOTH14KMTC
Fujitsu 4.2kW Cooling | 4.7kW Heating
Reverse Cycle Inverter Split System AC
High Energy efficiency Cooling and Heating.
Specifications
Model No.
Indoor Unit
ASTH14KNCA
Outdoor Unit
AOTH14KNCA
Power Source
V/ Ph / Hz
220-240 / 1 / 50
Capacity
Cooling
kW
4.2
Heating
kW
4.7
Input Power
Cooling/Heating
kW
1 .23
EER
Cooling
kW/kW
3.41
COP
Heating
4.16
Star Rating
Cooling: Hot/Average/Cold
4 / 3.5 / 4
Heating: Hot/Average/Cold
3.5 / 3 /2
Max. Operating Current
A
9
Recommended Breaker Size
A
1 5
Sound Pressure Level
Indoor (Cooling)
Quiet/High
dBA
20 / 43
Indoor (Heating)
Quiet/High
24 / 44
Outdoor (Cooling / Heating)
High
50 1 50
Sound Power Level
Outdoor
High
65
Airflow Rate
Indoor (Cooling)
Quiet/High
m3/h
280 / 770
Indoor (Heating)
Quiet/High
340 / 820
Dimensions (H x W x D)
Indoor
mm
270 × 834 × 215
Outdoor
542 x 799 x 290
Net Weight
Indoor
kg
1 0
Outdoor
31
Connection Pipe Diameter (Liquid / Gas)
mm
6.35 / 9.52
Drain Hose Diameter (I.D./O.D.)
13.0 / 15.0 to 16.8
Max Pipe Length (Pre-Charge)
m
20 (15)
Max Height Difference
1 5
Operation Range
Outdoor
Cooling
OCDB
-10 0 50
Heating
-1 5 to 24
Refrigerant
Type (Global Warming Potential)
R322
Charge
kg
850
