FUJITSU ASTH09KNCA 2.5kW Comfort Reverse Cycle Inverter Split System

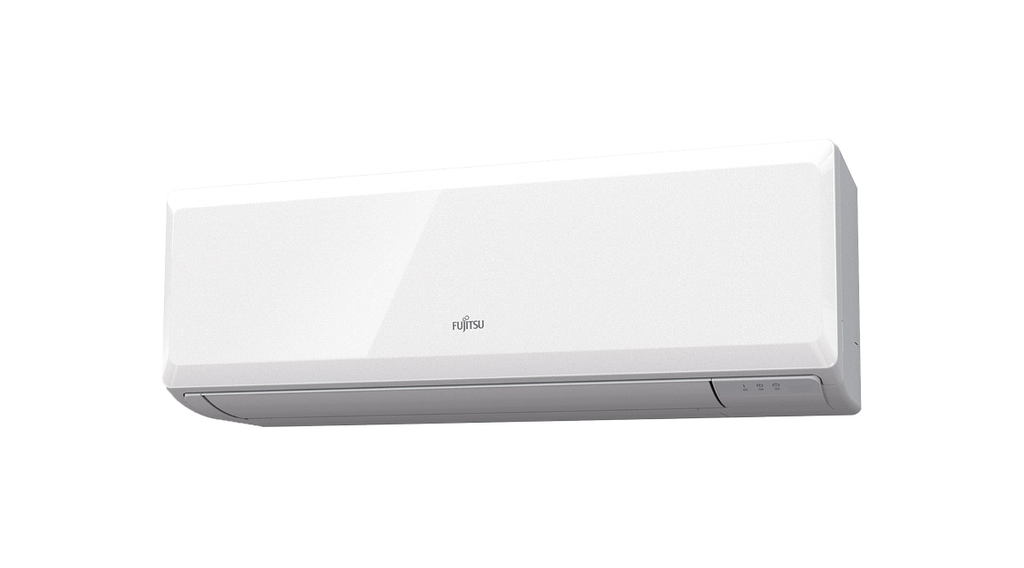

Indoor Unit: ASTH09KNCA

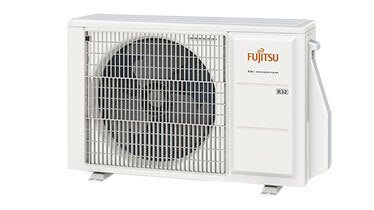

Outdoor Unit: AOTH09KNCA
Fujitsu 2.5kW Cooling | 3.2kW Heating capacity.
Reverse Cycle Inverter Split System
High Energy efficiency on Cooling and Heating.
Specifications:
Model No.
Indoor Unit
ASTH09KNCA
Outdoor Unit
AOTH09KNCA
Power Source
V/ Ph / Hz
220-240 / 1 / 50
Capacity
Cooling
kW
2.5
Heating
kW
3.2
Input Power
Cooling/Heating
kW
0.59
EER
Cooling
kW/kW
4.24
COP
Heating
4.16
Star Rating
Cooling: Hot/Average/Cold
5 / 4.5 / 4.5
Heating: Hot/Average/Cold
3.5 / 3 /2.5
Max. Operating Current
A
9
Recommended Breaker Size
A
1 5
Sound Pressure Level
Indoor (Cooling)
Quiet/High
dBA
22 1 46
Indoor (Heating)
Quiet/High
27 1 46
Outdoor (Cooling / Heating)
High
49 1 51
Sound Power Level
Outdoor
High
62
Airflow Rate
Indoor (Cooling)
Quiet/High
m3/h
240 / 630
Indoor (Heating)
Quiet/High
260 / 630
Dimensions (H x W x D)
Indoor
mm
270 x 784 x 224
Outdoor
541 x 663 x 290
Net Weight
Indoor
kg
8
Outdoor
25
Connection Pipe Diameter (Liquid / Gas)
mm
6.35 / 9.52
Drain Hose Diameter (I.D./O.D.)
13.0 / 15.0 to 16.8
Max Pipe Length (Pre-Charge)
m
20 (15)
Max Height Difference
1 5
Operation Range
Outdoor
Cooling
OCDB
-10 to 50
Heating
-15 to 24
Refrigerant
Type (Global Warming Potential)
R32
Charge
kg
590
