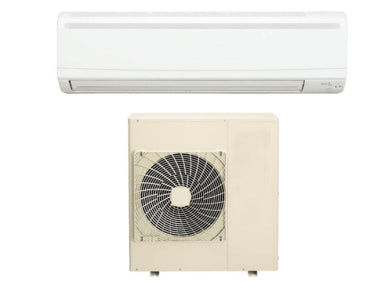

DAIKIN SKY AIR FTXC100A-AV 10kW Reverse Cycle Split System Air Conditioner | 1 Phase

Compact & Sophisticated Design
Flaps neatly close When not in use.
Fresh white colour.
Comfort
Auto swing (up and down) and wide-angle louvers (left and right by hand) facilitate even room temperature.
Wide-angle louvers (by hand) Soft material louver bends airflow over a wider area
An air discharge modes ensure comfortable air distribution across the entire room
Comfort even on the far side of the room
To carry air to the far side of long rooms, extra-high airflow adds 10% more fan speed the “high” setting. Air discharge strength is selected from the remote controller by the fieldsetting.
Switchable fan speed: 3 steps and Auto – “Auto” is applicable when a wired remote controller is used.
Programme “Dry” – Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature.
Design and Installation Flexibility
6-direction refrigerant piping offers greater installation flexibility
Maintenance possible from the front of the unit
Drain pump kit is available as option – Drain pump kit can be installed on either left and right side of the indoor unit.
Interlock control
As an energy saving feature, the air conditioner can be interlocked with the key card system. Using a 3rd-party building management system,air conditioning and lighting can be interlocked.
DIII-NET communication standard
Connection to a centralised control system is available without need for an optional adaptor.
Easy Cleaning
Removable and washable grille
Flat panel, easy to wipe dust off
Non-flocking flaps
Condensation does not easily form and dirt does not cling to non-flocking flaps. It is easy to clean
Shop with Confidence
Brand new Australian StockNo Factory SecondsFull Australian Manufacturer’s WarrantyAuthorised Genuine DealerSecure Online Payments
Specification


Model Name
Indoor unit
FTXC100AV1A
Outdoor unit
RXC100AV1A
Power supply
1 Phase, 220-240V, 50Hz
Cooling capacity1,3 Rated (Min. – Max.)


kW
10.0

(5.0-11.2)
Heating capacity2,3 Rated (Min. – Max.)


kW
11.2

(5.1-12.5)
Power consumption
Cooling1
kW
3.11
Heating2
kW
3.48
EER
Cooling
kW/kW
3.22
COP
Heating
kW/kW
3.22
AEER
Cooling
3.17
ACOP
Heating
3.17
TCSPF (Cooling) Commercial / Residential
Hot
5.03 / 4.63
Average
5.13 / 4.18
Cold
5.49 / 4.33
HSPF (Heating) Commercial / Residential
Hot
4.66 / 4.64
Average
4.25 / 3.95
Cold
3.77 / 3.42
Indoor unit
Colour
Fresh white
Airflow rate (H / M / L)
/s
433 / 383 / 317
m3/min
26.0 / 23.0 / 19.0
Sound pressure level4 (H / M / L)
dB(A)
49.0 / 45.0 / 41.0
Sound power level (H / M / L)
dB(A)
65 / 62 / 58
Dimensions (HXWXD)
mm
340X1,200X240
Machine weight
kg
17
Certified operation range
Cooling
°CWB
14 to 25
Heating
°CDB
15 to 27
Outdoor
Colour
Ivory White
unit
Compressor
Type
Hermetically sealed swing type
Motor output
kW
3.3
Refrigerant charge (R-32)


kg
3.75

(Charged for 30 m)
Sound pressure level 4
Cooling / Heating
dB(A)
51 / 53
Night quiet mode
dB(A)
47
Sound power level
dB(A)
70
Dimensions (HXWXD)
mm
1,430X940X320
Machine weight
kg
93
Certified operation range
Cooling
°CDB
-5 to 50
Heating
°CWB
-15 to 15.5
Piping connections
Liquid (Flare)
mm
o/ 9.5
Gas (Flare)
mm
o/ 15.9
Drain
Indoor unit
mm
VP13 (I.D.o/ 13XO.D. o/ 18)
Outdoor unit
mm
o/ 26.0 (Hole)
Max. interunit piping length
m
75 (Equivalent length 90)
Max. installation height difference
m
30
Heat insulation
Both liquid and gas piping
