DAIKIN FFA35B-CE2V 3.5kW Compact Cassette – Single Phase (R32)

3.5 kW Cooling4.2 kW Heating

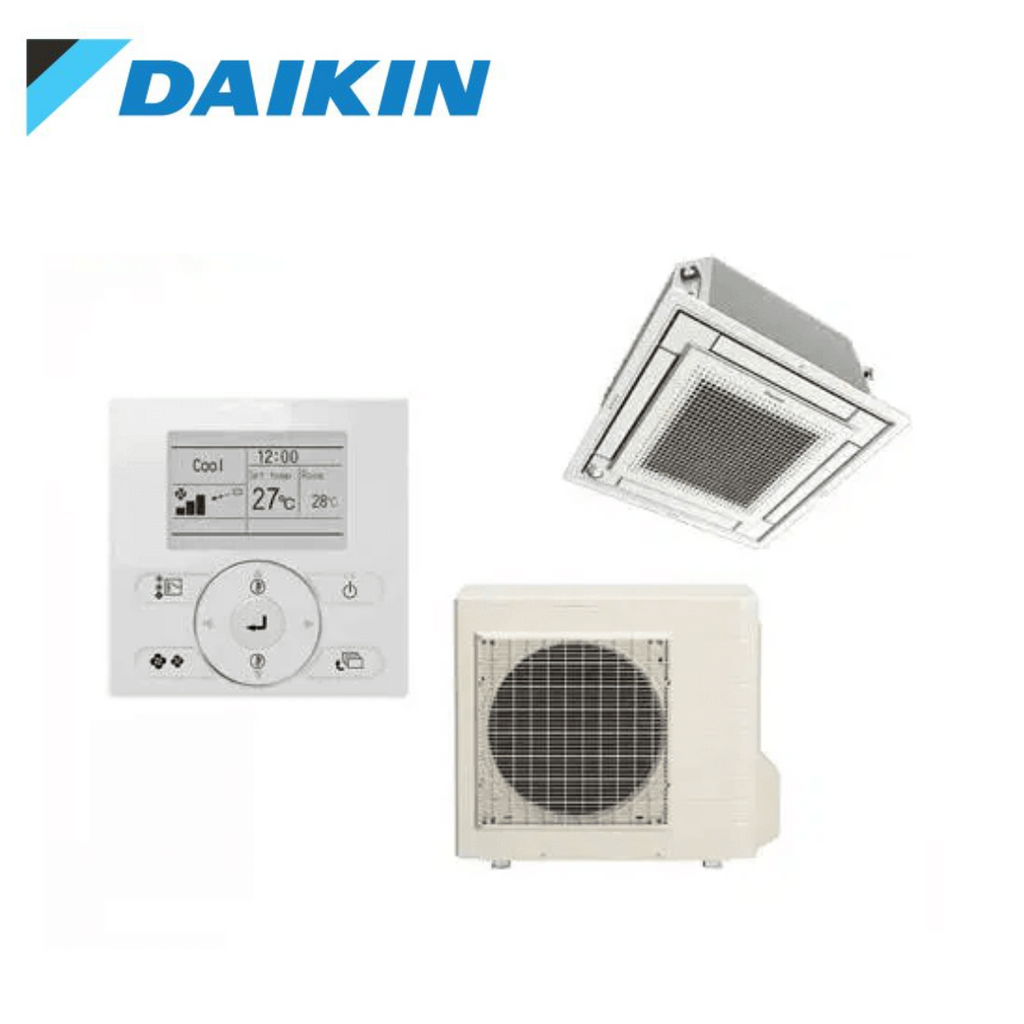

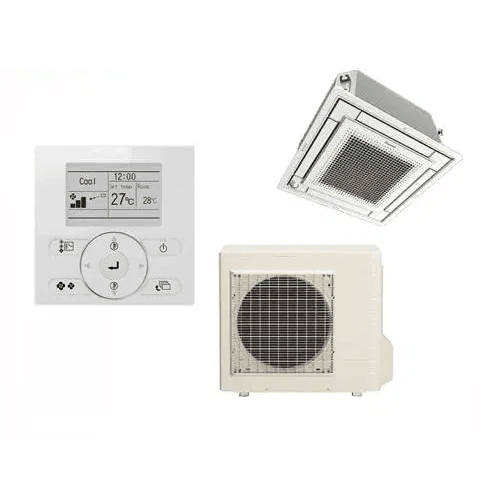

DAIKIN FFA35B-CE2V 3.5kW Compact Cassette Air Conditioner System
Includes:
Indoor: FFA35BVM
Outdoor: RZAC35E2VMFascia: BYFQ60CAW
BRC1E63 Controller
Features
Fully flat cassette, a remarkable blend of iconic design and engineering excellence.
Fully Flat with the CeilingFully-flat integration in standard architectural ceiling tiles, leaving only 8 mm.
Fits Architectual Ceiling Tiles PerfectlyThe newly designed panel integrates fully within one ceiling tile enabling lights, speakers and sprinklers to be installed in the adjoining ceiling tiles.
Compact
Sized to fit inside 600mm wide ceiling grids
Sensing technology
Dual sensors (Option)An optional presence and floor sensor kit can be fitted to the cassette for draft prevention, energy-saving operation, and to provide optimal control of airflow.
Direct air, Draft prevention (default: OFF)*2*2. Applicable when BRC1E63 is used.When human presence is detected, air direction is set to “Swing (narrow)” to deliver cool air to users, or drafts are prevented by making the flap horizontal.
Sensing sensor low / stop mode (default: OFF)*3*3. Applicable when BRC1E63 or BRC1H62W(K) is used.When there are no people in a room, the set temperature is shifted or the system stops automatically for energy saving.
Individual airflow direction control *3Airflow direction can be individually adjusted for each air discharge outlet to deliver optimal air distribution.
Comfort
Fan speed: 3 steps and Auto
Suitable for high ceilingsEven in spaces with high ceilings, a comfortable airflow is carried down to the floor level.*Field setting with remote controller.
Optimal comfort and convenience
Selectable airflow pattern
