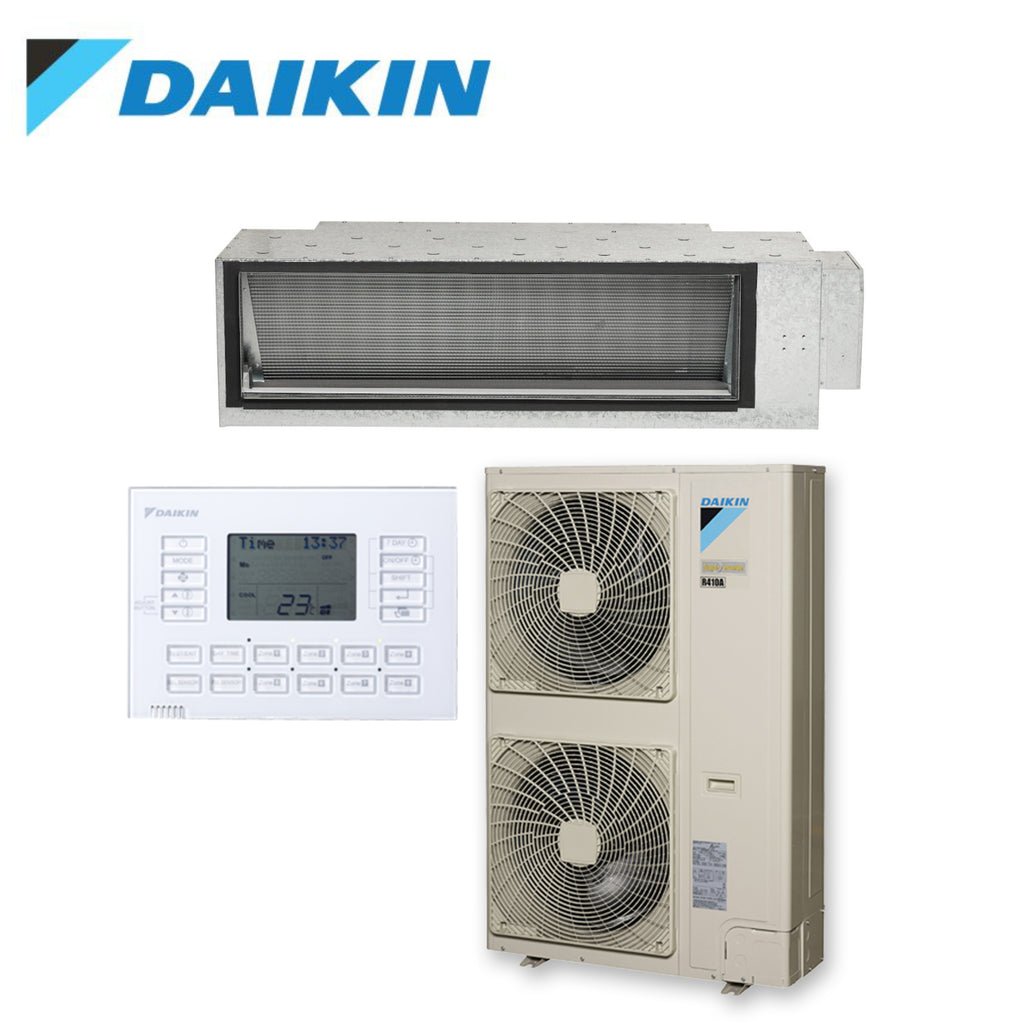

DAIKIN FDYUAN160AV1 / RZA160C2V1 16kW Premium Inverter Underfloor Ducted System 8 Zones (with Zone Controller)

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian Stock
No Factory Seconds
Full Australian Manufacturer’s Warranty
Authorized Genuine Dealer
Secure Online Payment
Features
15.5  Cooling18.0 Heating
R32 | SUPERIOR ENERGY PERFORMANCE
Specifications1Phase
Specification
FDYUAN160AV1
Indoor Unit
FDYUAN160AV1
Outdoor Unit
RZA160C2V1
Rated Capacity
Cool (kW)
15.5
Heat (kW)
18
Capacity Range
Cool (kW)
7.3-16.3
Heat (kW)
7.3-18.2
Power Input (Rated)
Cool (kW)
4.95
Heat (kW)
4.90
E.E.R/C.O.P
Cool/Heat
3.13/3.67
TCSPF (Residential)
Hot/Average/Cold
4.05/3.76/3.86
HSPF (Residential)
Hot/Average/Cold
3.87/3.53/3.12
Airflow Rate (Nominal/Max)
l/s
950/1120
Indoor Sound Level (H) @ 1.5m
dBA (C/H)
47.9/50.7
Piping Length
m
50
Indoor Fan Speeds
H/M/L
Dimensions (HxWxD)
mm
Indoor
360x1520x935
Outdoor
1430x940x320
Weight
kg
Indoor
56
Outdoor
99
Power Supply
V/Hz
1 Phase, 220-240V, 50Hz
Compressor Type
Hermetically Sealed Swing Type
Refrigerant
R32
Pipe Sizes
mm
Liquid
9.5 (Flared)
Gas
15.9 (Flared)
Drain
ID 25 / OD 32
Supply Air Opening
mm (HxW, Flange)
245×1152
Return Air Opening
mm
2×400 (Oval)
Outdoor Operating Range
Cool (°CDB)
-5 to 46
Heat (°CWB)
-15 to 16
EPA Sound Power Level
dBA
75
Outdoor Sound Level (H) @ 1m
Pressure dBA (C/H)
56/58

3 Phase:
Specification
FDYUAN160AV1
Indoor Unit
FDYUAN160AV1
Outdoor Unit
RZA160C2Y1
Rated Capacity
Cool (kW)
15.5
Heat (kW)
18
Capacity Range
Cool (kW)
7.3-16.3
Heat (kW)
7.3-18.2
Power Input (Rated)
Cool (kW)
4.95
Heat (kW)
4.90
E.E.R/C.O.P
Cool/Heat
3.13/3.67
TCSPF (Residential)
Hot/Average/Cold
4.05/3.76/3.86
HSPF (Residential)
Hot/Average/Cold
3.87/3.53/3.12
Airflow Rate (Nominal/Max)
l/s
950/1120
Indoor Sound Level (H) @ 1.5m
dBA (C/H)
47.9/50.7
Piping Length
m
50
Indoor Fan Speeds
H/M/L
Dimensions (HxWxD)
mm
Indoor
360x1520x935
Outdoor
1430x940x320
Weight
kg
Indoor
56
Outdoor
99
Power Supply
V/Hz
3 Phase, 380-415V, 50Hz
Compressor Type
Hermetically Sealed Swing Type
Refrigerant
R32
Pipe Sizes
mm
Liquid
9.5 (Flared)
Gas
15.9 (Flared)
Drain
ID 25 / OD 32
Supply Air Opening
mm (HxW, Flange)
245×1152
Return Air Opening
mm
2×400 (Oval)
Outdoor Operating Range
Cool (°CDB)
-5 to 46
Heat (°CWB)
-15 to 16
EPA Sound Power Level
dBA
75
Outdoor Sound Level (H) @ 1m
Pressure dBA (C/H)
56/58
