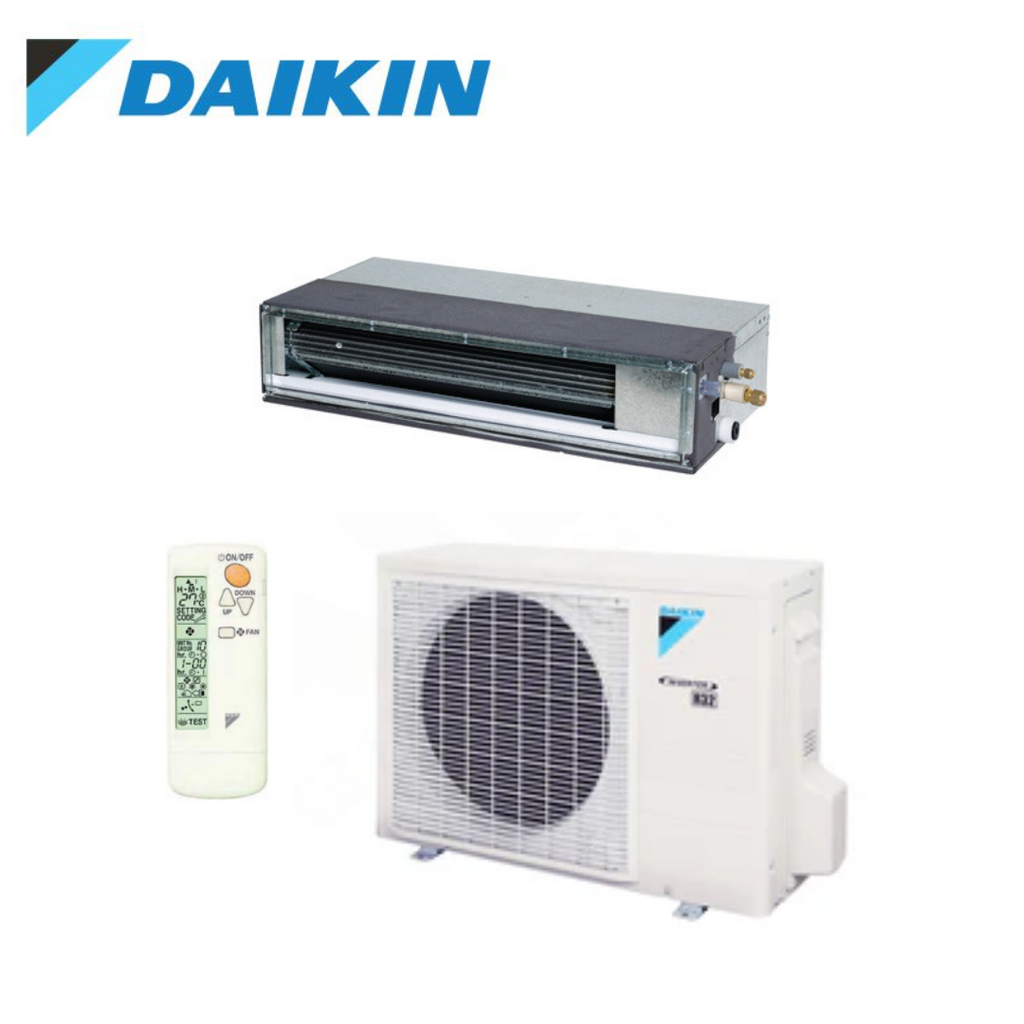

DAIKIN FDYBA35A-G2V 3.5kW Inverter Bulkhead System | 1 Phase
Ultra Compact Compact form factor – measuring at 200mm (H) and 620mm (D), makes it suitable for a variety of applications. Whisper-Quiet Noise levels are truly discrete and whisper quiet at 35dBA (25 Class Model). Auto-Fan-Speed An optimal fan speed is automatically selected to suit the set temperature for a more efficient operation. Flexible Return Air Option of a rear or bottom suction return allows for greater installation flexibility. Night Set Mode Temperatures are gently adjusted to prevent excessive cooling/heating for a more pleasant night’s sleep. Standby Power Function Automatically reduces energy consumption when the system is not in use.
Shop with Confidence
Brand new Australian Stock
No Factory Seconds
Full Australian Manufacturer’s Warranty
Authorized Genuine Dealer
Secure Online Payments
Specifications

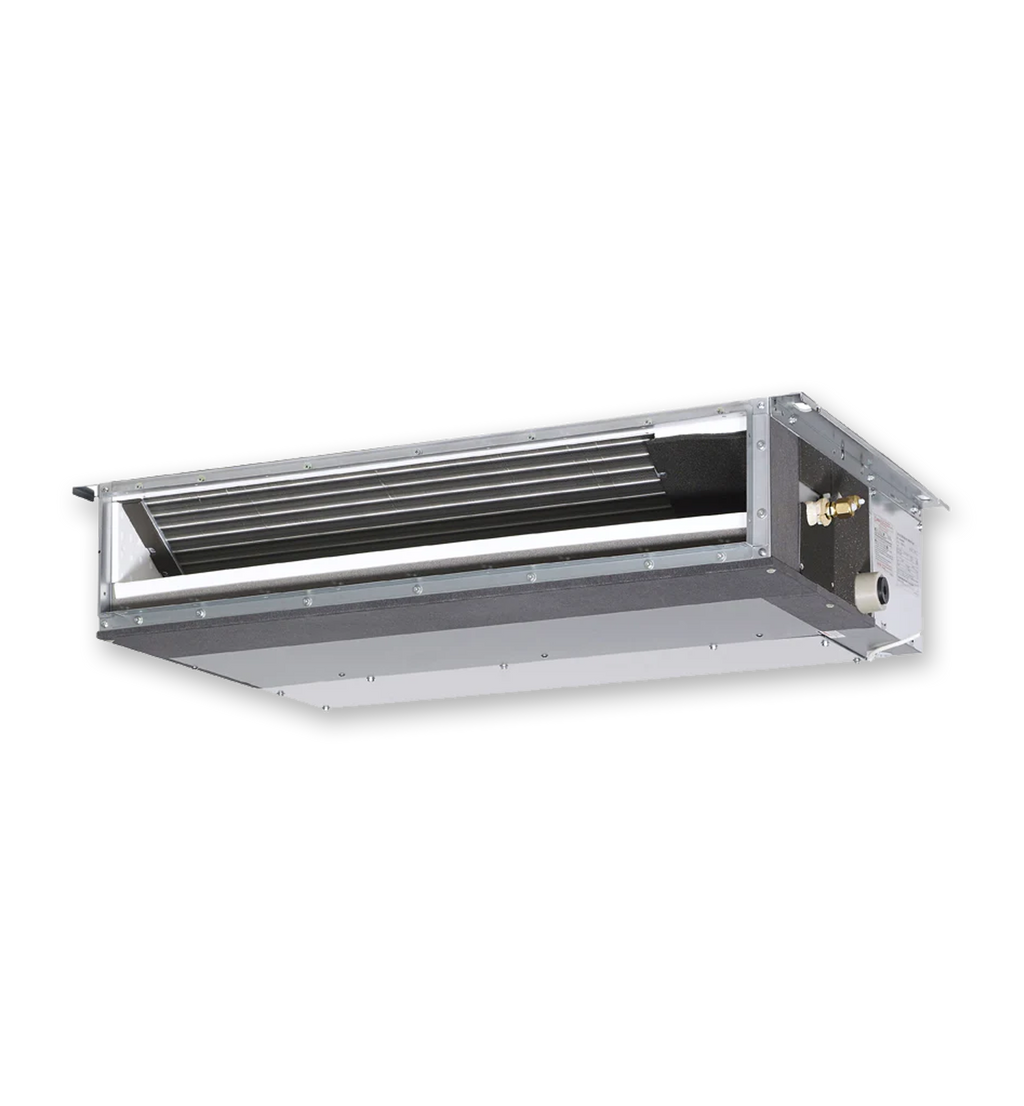

INDOOR UNIT
FDYBA35AV1

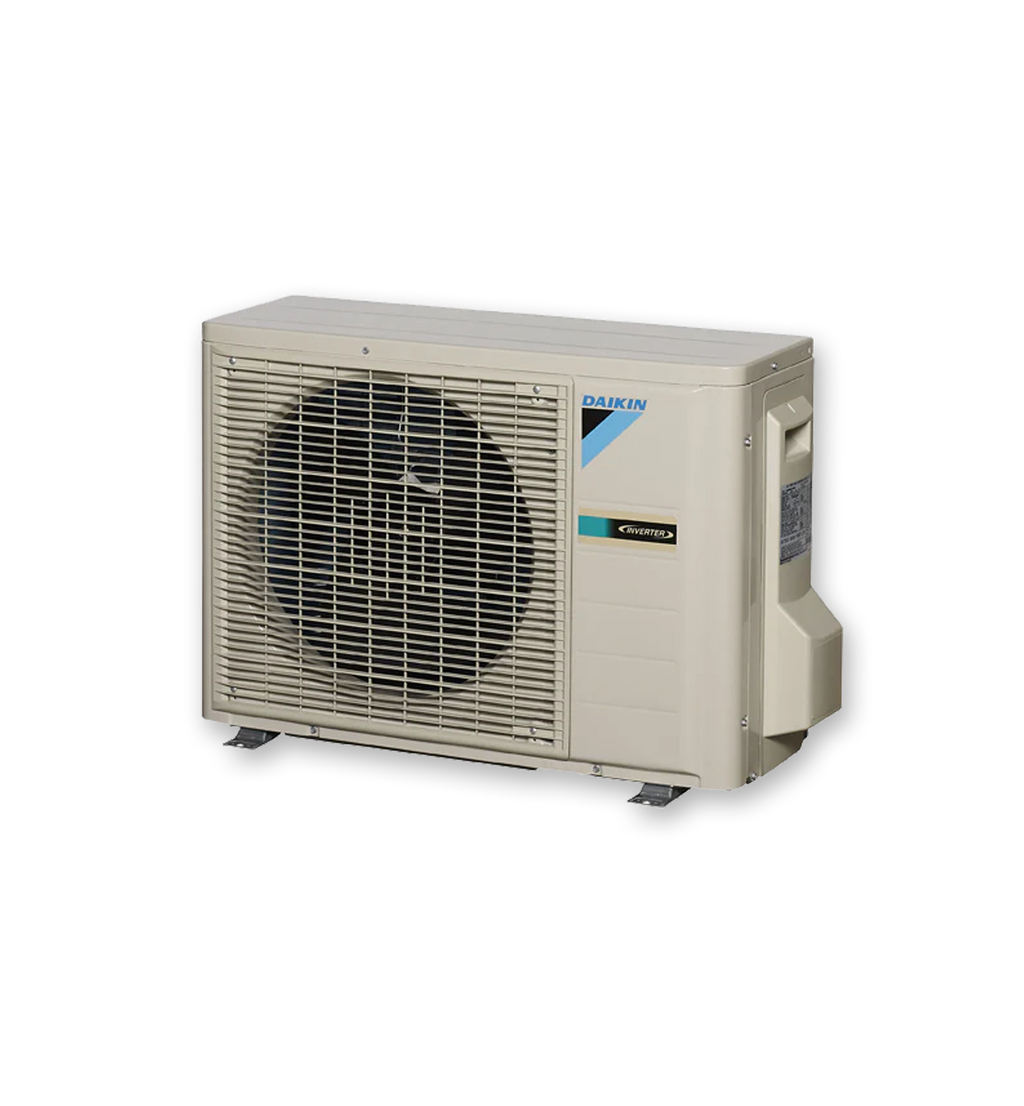

OUTDOOR UNIT
RZAC35G2V1
Rated Capacity
Cool (kW)
3.50
Heat (kW)
4.00
Capacity Range
Cool (kW)
0.8-4.0
Heat (kW)
1.0-4.3
Power Input (Rated)
Cool (kW)
1.00
Heat (kW)
1.10
E.E.R/C.O.P
C/H
3.5/3.64
TCSPF (Residential)
Hot/Average/Cold
4.39/3.94/3.99
HSPF (Residential)
Hot/Average/Cold
4.53/4.06/3.69
Airflow Rate (Rated)
l/s
195
Indoor Sound Level (H) @ 1.5m
Discharge (dBA)
43.1
Suction (dBA)
38.9
Casing Breakout (dBA)
31.6
Piping Length
m
20
Indoor Fan Speeds
5 Steps, Quiet and Automatic
Dimensions (HxWxD)
Indoor (mm)
200x900x450
Outdoor (mm)
550x675x284
Weight
Indoor (kg)
21
Outdoor (kg)
28
Power Supply
V/Hz
1 Phase 220-240V, 50Hz
Compressor Type
Hermetically Sealed Swing Type
Refrigerant
R32
Pipe Sizes
Liquid (mm)
6.4 (Flared)
Gas (mm)
9.5 (Flared)
Drain (mm)
ID 20 / OD 26
Supply Air Opening
mm (HxW, Flange)
153×860
Return Air Opening
mm (HxW, Flange)
163×775
Outdoor Operating Range
Cool (°CDB)
-10 to 50
Heat (°CWB)
-15 to 18
EPA Sound Power Level
dBA
60
Outdoor Sound Level (H) @ 1m
Pressure dBA (C/H)
47/48
Model/SKU: FDYBA35A-G2VIncludes:
Indoor Unit : FDYBA35AV1Outdoor Unit : RZAC35G2V1 (Old System Number: RZAC35GV1)Controller : BRC4C65
