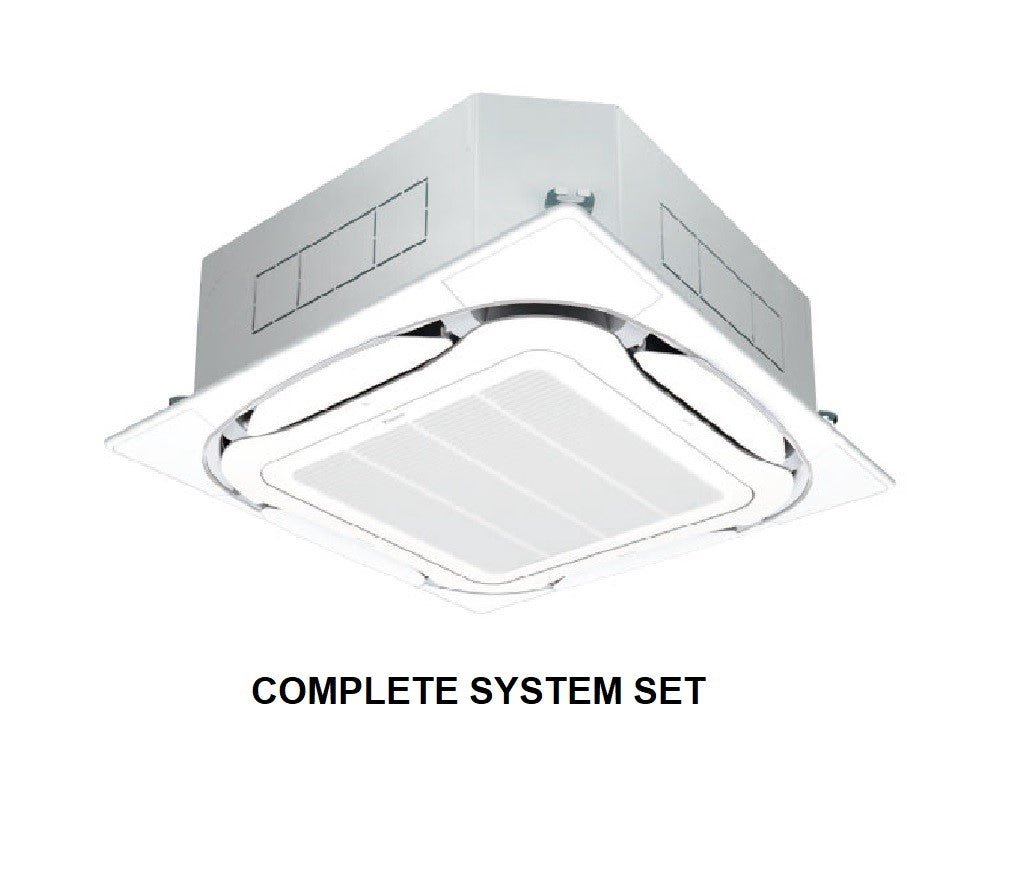

DAIKIN FCA60CA-VC2V 6.0kW Premium Inverter Reverse Cycle Cassette System | 1 Phase

6.0 kW Cooling 7.0 kW Heating
DAIKIN FCA60CA-VC2V 6kW Premium Inverter Reverse Cycle Cassette System -Single Phase
Includes Indoor FCA60CAVMA | Outdoor RZAV60C2V1
Fascia –  BYCQ125EAF
Controller – BRC1E63
Specifications
Indoor Unit
FCA60CAVMA
Outdoor Unit
RZAV60C2V1
Power Supply
ø / V / Hz
1 Phase, 240V, 50 Hz
Cooling Capacity
Rated (Min – Max)
kW
6.0 (1.4 – 7.1)
Heating Capacity
Rated (Min – Max)
kW
7.1 (1.4 – 8.0)
Power Consumption
Cooling
kW
1.43
Heating
kW
1.54
Enery Efficiency
EER
kW
4.21
COP
kW
4.61
Indoor Unit
Colour
Unit
–
Decoration Panel
Fresh White
Airflow Rate (H / HM / M / ML / L)
L/s
383 / 350 / 308 / 267 / 225
m³/min
23.0 / 21.0 / 18.5 / 16.0 / 13.5
Sound Level (H/M/L)
dB(A)
37.0 / 36.0 / 34.0 / 31.0 / 27.5
Dimensions (HxWxD)
Unit
mm
256 x 840 x 840
Decoration Panel
mm
50 x 950 x 950
Machine Weight
Unit
kg
22
Decoration Panel
kg
5.5
Certified Operation Range
Cooling
°CWB
14 to 25
Heating
°CDB
15 to 27
Outdoor Unit
Colour
Ivory white
Compresser
Type
Hermetically sealed swing type
Motor output
kW
1.3
Refrigerant Charge (R410a)
kg
1.35 (charged for 30m)
Sound Level
Cooling / Heating
dB(A)
48 / 51
Night quiet mode
dB(A)
44
Sound Power Level (H/L)
dB(A)
68
Dimensions (HxWxD)
mm
595 x 845 x 300
Machine Weight
kg
45
Certified Operation range
Cooling
°CDB
-5 to 50
Heating
°CWB
-15 to 15.5
Piping Connections
Liquid (Flare)
mm
ø6.4
Gas (Flare)
mm
ø12.7
Drain
Indoor Unit
mm
I.D. ø25 x O.D ø32
Outdoor Unit
mm
ø26.0 (Hole)
Refrigerant
R32
Max, interunit piping length
m
50 (Equivalent length 70)
Max. Installation level difference
m
30
Heat insulation
Both liquid and gas piping
