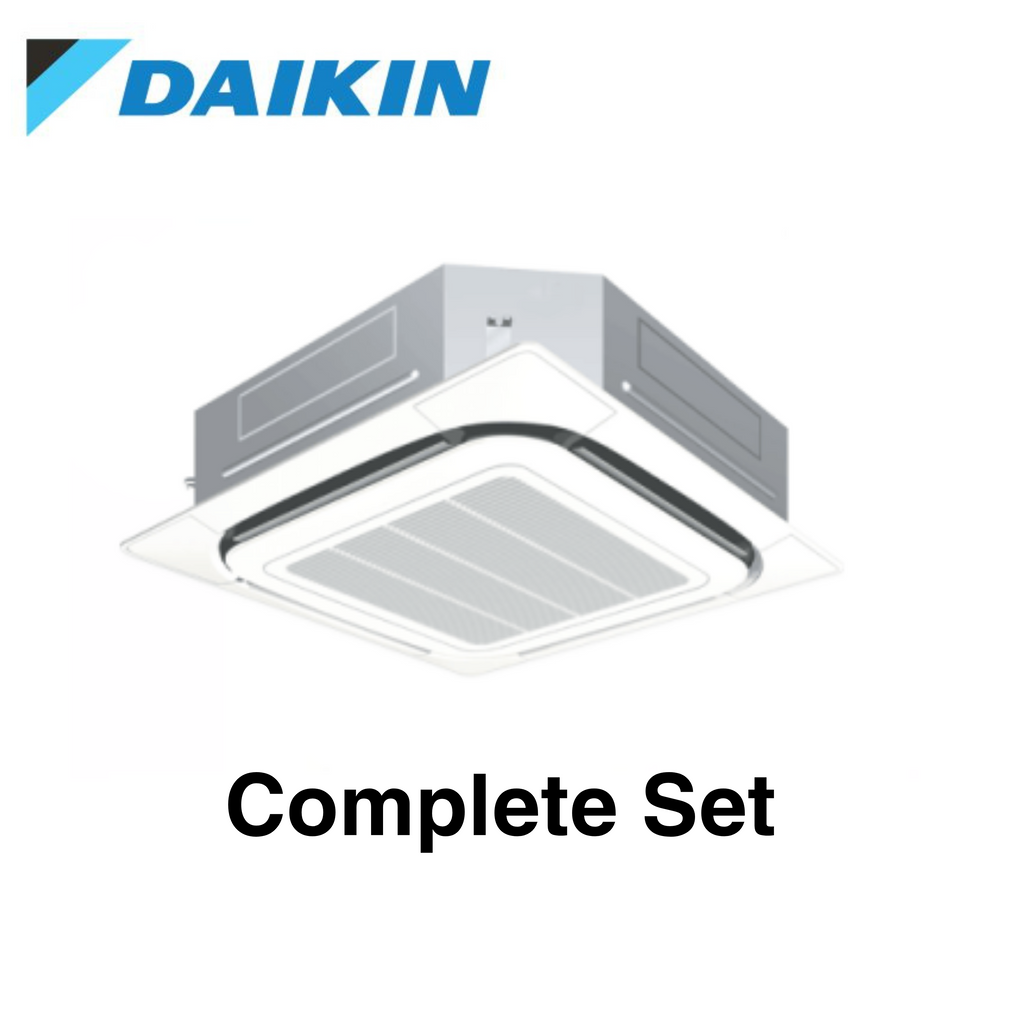

Daikin FCA140C-CF2V 14kW Inverter Cassette (R32) System – 1 Phase

13.6 kW Cooling16.0 kW Heating
DAIKIN FCA140C-CF2V 14kW Standard Inverter Reverse Cycle Cassette System | 1 PhaseIncludes: Indoor – FCA140CVMA Outdoor – RZAC140C2V1Fascia – BYCQ125EAFWired Controller – BRC1E63
Sky Air Brochure
Specifications
Indoor Unit
FCA140CVMA
Outdoor Unit
RZAC140C2V1
Power Supply
ø / V / Hz
1 Phase, 220-240V, 50 Hz
Cooling Capacity
Rated (Min – Max)
kW
14.0 (5.0 – 16.0)
Heating Capacity
Rated (Min – Max)
kW
16.0 (5.1 – 18.0)
Power Consumption
Cooling
kW
4.18
Heating
kW
4.32
Enery Efficiency
EER
kW
3.35
COP
kW
3.70
Indoor Unit
Colour
Unit
–
Decoration Panel
Fresh White
Airflow Rate (H / HM / M / ML / L)
L/s
608 / 558 / 500 / 442 / 383
m³/min
36.5 / 33.5 / 30.0 / 26.5 / 23.0
Sound Pressure Level (H / HM / M / ML / L)
dB(A)
46.0 / 43.5 / 41.0 / 38.5 / 36.0
Dimensions (HxWxD)
Unit
mm
298 x 840 x 840
Decoration Panel
mm
50 x 950 x 950
Machine Weight
Unit
kg
26
Decoration Panel
kg
5.5
Certified Operation Range
Cooling
°CWB
14 to 25
Heating
°CDB
15 to 27
Outdoor Unit
Colour
Ivory white
Compresser
Type
Hermetically sealed swing type
Motor output
kW
3.3
Refrigerant Charge (R410a)
kg
3.75 (charged for 30m)
Sound Level
Cooling / Heating
dB(A)
54 / 56
Night quiet mode
dB(A)
50
Sound Power Level (H/L)
dB(A)
–
Dimensions (HxWxD)
mm
1430 x 940 x 320
Machine Weight
kg
93
Certified Operation range
Cooling
°CDB
-5 to 46
Heating
°CWB
-15 to 15.5
Piping Connections
Liquid (Flare)
mm
ø9.5
Gas (Flare)
mm
ø15.9
Drain
Indoor Unit
mm
I.D. ø25 x O.D ø32
Outdoor Unit
mm
ø26.0 (Hole)
Refrigerant
R32
Max, interunit piping length
m
50 (Equivalent length 70)
Max. Installation level difference
m
30
Heat insulation
Both liquid and gas piping
