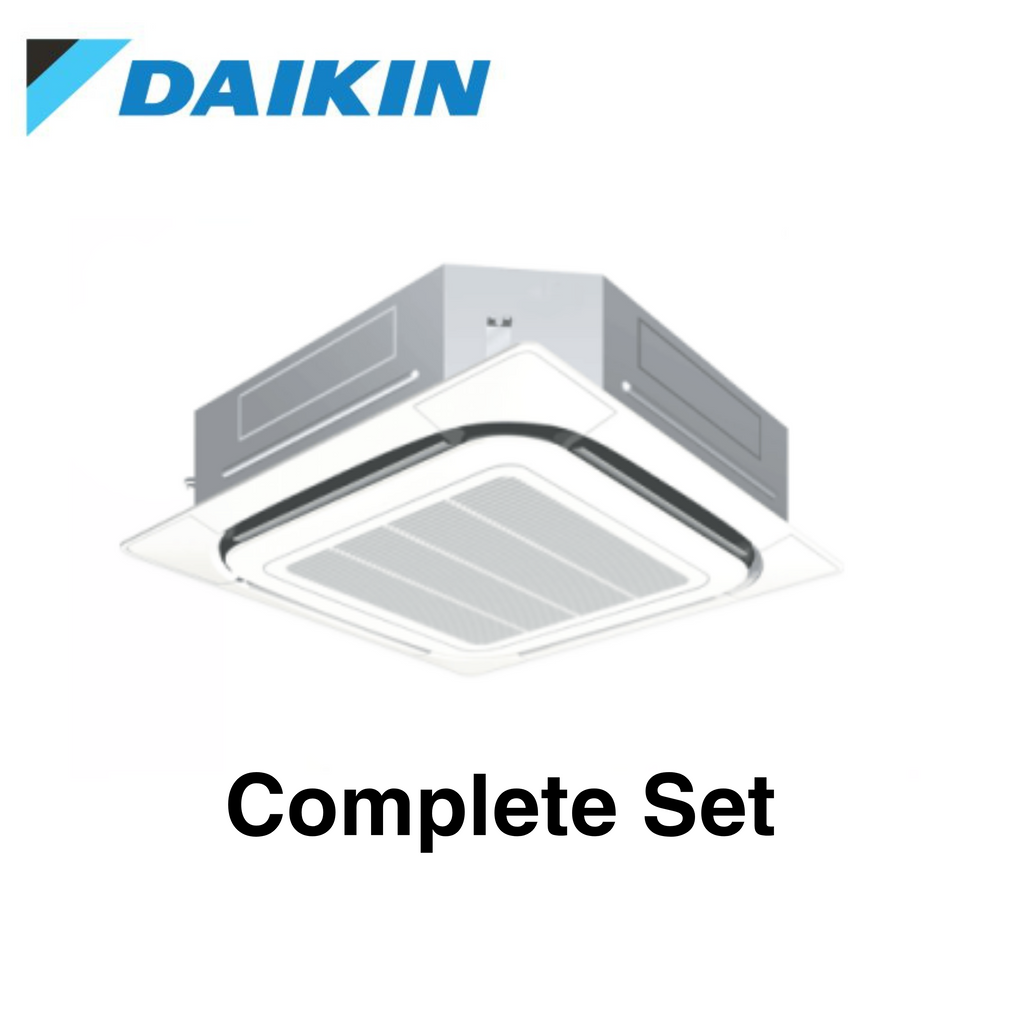

Daikin FCA100C-CC2Y 10kW Inverter Cassette (R32) System – 3 Phase

10.0 kW Cooling11.2 kW Heating
DAIKIN FCA100C-CC2Y 10.0kW Standard Inverter Reverse Cycle Cassette System 3 PhaseIncludes Indoor – FCA100CVMA Outdoor – RZAC100C2Y1Fascia – BYCQ125EAFWired Controller – BRC1E63
Sky Air Brochure
Specifications
Indoor Unit
FCA100CVMA
Outdoor Unit
RZAC100C2Y1
Power Supply
ø / V / Hz
3 Phase, 380-415V, 50 Hz
Cooling Capacity
Rated (Min – Max)
kW
10.0 (3.2 – 11.2)
Heating Capacity
Rated (Min – Max)
kW
11.2 (3.5 – 12.5)
Power Consumption
Cooling
kW
2.67
Heating
kW
2.74
Enery Efficiency
EER
kW
3.74
COP
kW
4.09
Indoor Unit
Colour
Unit
–
Decoration Panel
Fresh White
Airflow Rate (H / HM / M / ML / L)
L/s
575 / 517 / 458 / 400 / 333
m³/min
34.5 / 31.0 / 27.5 / 24.0 / 20.0
Sound Pressure Level (H / HM / M / ML / L)
dB(A)
45.0 / 42.0 / 39.0 / 36.5 / 34.0
Dimensions (HxWxD)
Unit
mm
298 x 840 x 840
Decoration Panel
mm
50 x 950 x 950
Machine Weight
Unit
kg
26
Decoration Panel
kg
5.5
Certified Operation Range
Cooling
°CWB
14 to 25
Heating
°CDB
15 to 27
Outdoor Unit
Colour
Ivory white
Compresser
Type
Hermetically sealed swing type
Motor output
kW
2.4
Refrigerant Charge (R410a)
kg
2.6 (charged for 30m)
Sound Level
Cooling / Heating
dB(A)
52 / 54
Night quiet mode
dB(A)
48
Sound Power Level (H/L)
dB(A)
71
Dimensions (HxWxD)
mm
990 x 940 x 320
Machine Weight
kg
69
Certified Operation range
Cooling
°CDB
-5 to 46
Heating
°CWB
-15 to 15.5
Piping Connections
Liquid (Flare)
mm
ø9.5
Gas (Flare)
mm
ø15.9
Drain
Indoor Unit
mm
I.D. ø25 x O.D ø32
Outdoor Unit
mm
ø26.0 (Hole)
Refrigerant
R32
Max, interunit piping length
m
50 (Equivalent length 70)
Max. Installation level difference
m
30
Heat insulation
Both liquid and gas piping
