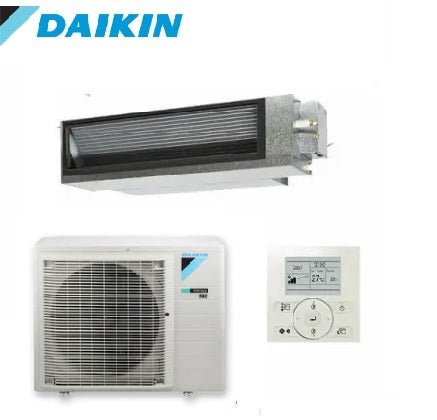

DAIKIN FBA60BA-VC2V 6.0kW Premium Inverter Slimline Ducted System | 1 Phase

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian Stock
No Factory Seconds
Full Australian Manufacturer’s Warranty
Authorized Genuine Dealer
Secure Online Payments
Specifications
FBA60BA-VC2V
Specification
Details

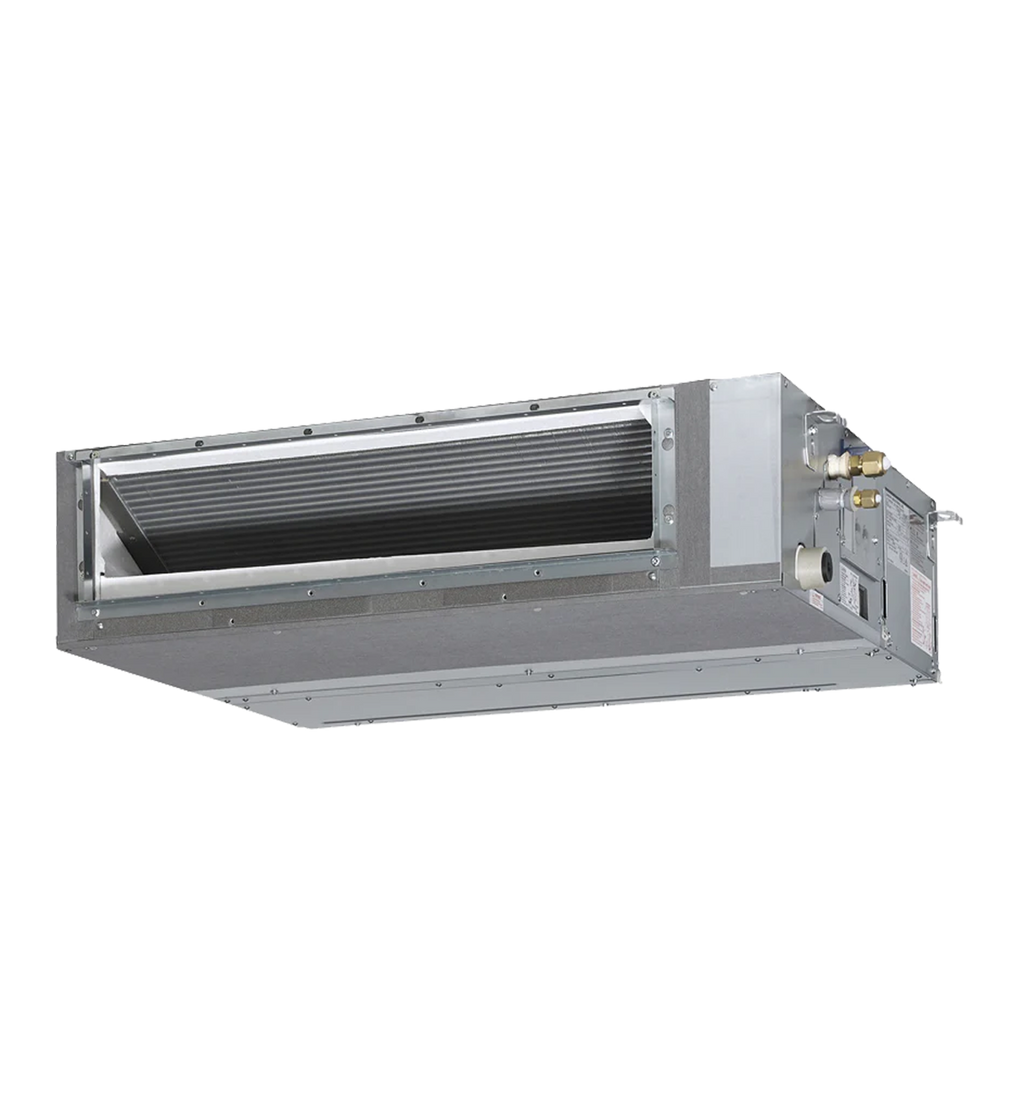

Indoor Unit
FBA60BAVMA

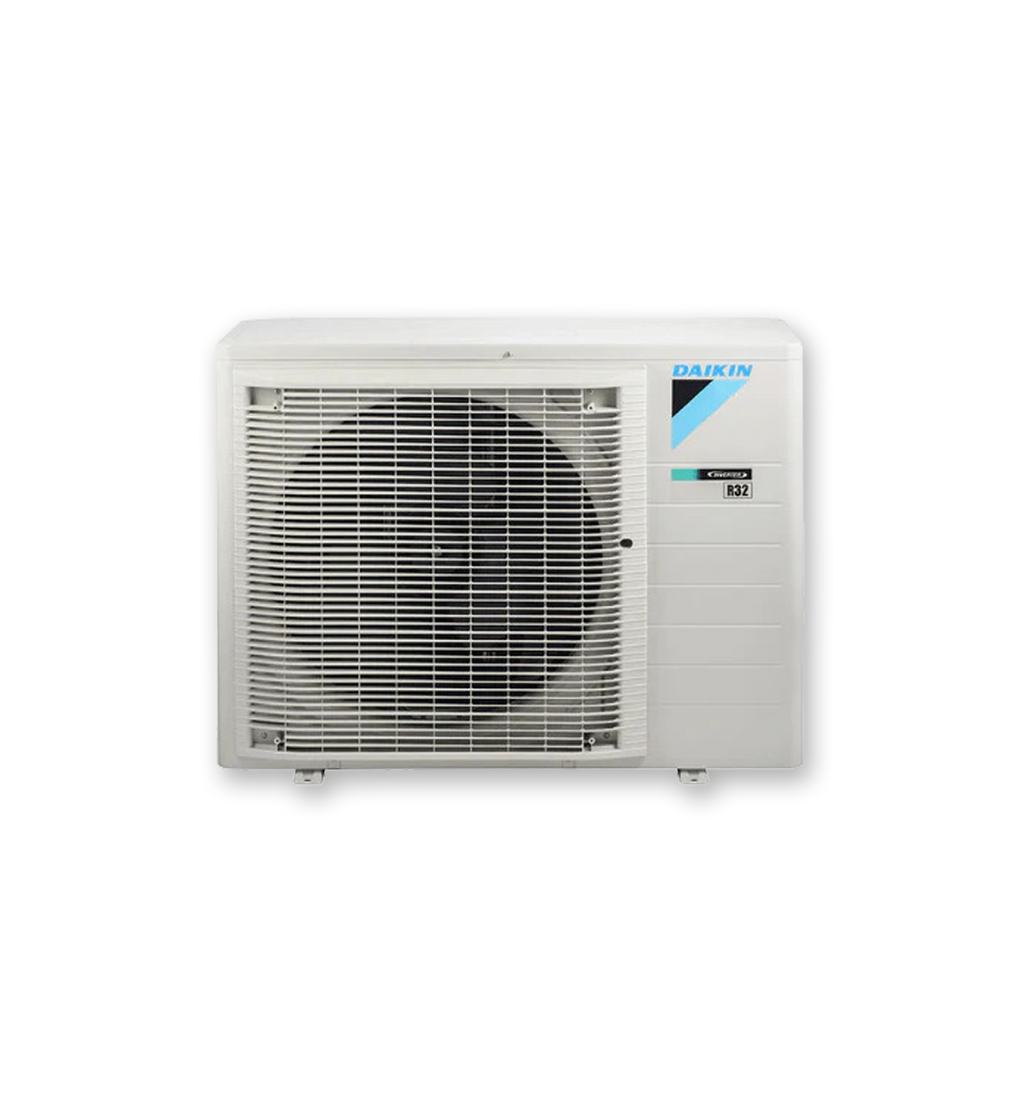

Outdoor Unit
RZAV60C2V1
Rated Cooling Capacity (kW)
6.0
Rated Heating Capacity (kW)
7.1
Cooling Capacity Range (kW)
1.4-7.1
Heating Capacity Range (kW)
1.4-8.0
Power Input (Cooling) (kW)
1.67
Power Input (Heating) (kW)
1.71
E.E.R / C.O.P (Cooling / Heating)
3.59 / 4.15
TCSPF (Residential)
4.58 / 3.92 / 3.91
HSPF (Residential)
4.94 / 4.47 / 3.96
Airflow Rate (Nominal) (l/s)
300
Indoor Sound Level (H) @1.5m (dBA)
35
Piping Length (m)
75
Indoor Dimensions (H x W x D) (mm)
245 x 1400 x 800
Outdoor Dimensions (H x W x D) (mm)
990 x 940 x 320
Indoor Weight (kg)
37
Outdoor Weight (kg)
45
Power Supply
1 Phase, 220-240V, 50Hz
Compressor Type
Hermetically Sealed Swing Type
Refrigerant
R32
Pipe Sizes (Liquid / Gas)
9.5 / 15.9 mm (Flared)
Drain Pipe Size (ID / OD)
25 / 32 mm
Supply Air Opening (HxW, Flange) (mm)
176 x 1192
Return Air Opening (HxW, Flange) (mm)
208 x 1352
Outdoor Operating Range (Cool / Heat) (ºC)
-5 to 46 / -15 to 16
EPA Sound Power Level (dBA)
68
Outdoor Sound Level (H) @1m (dBA)
48 / 51
Download Brochure here
