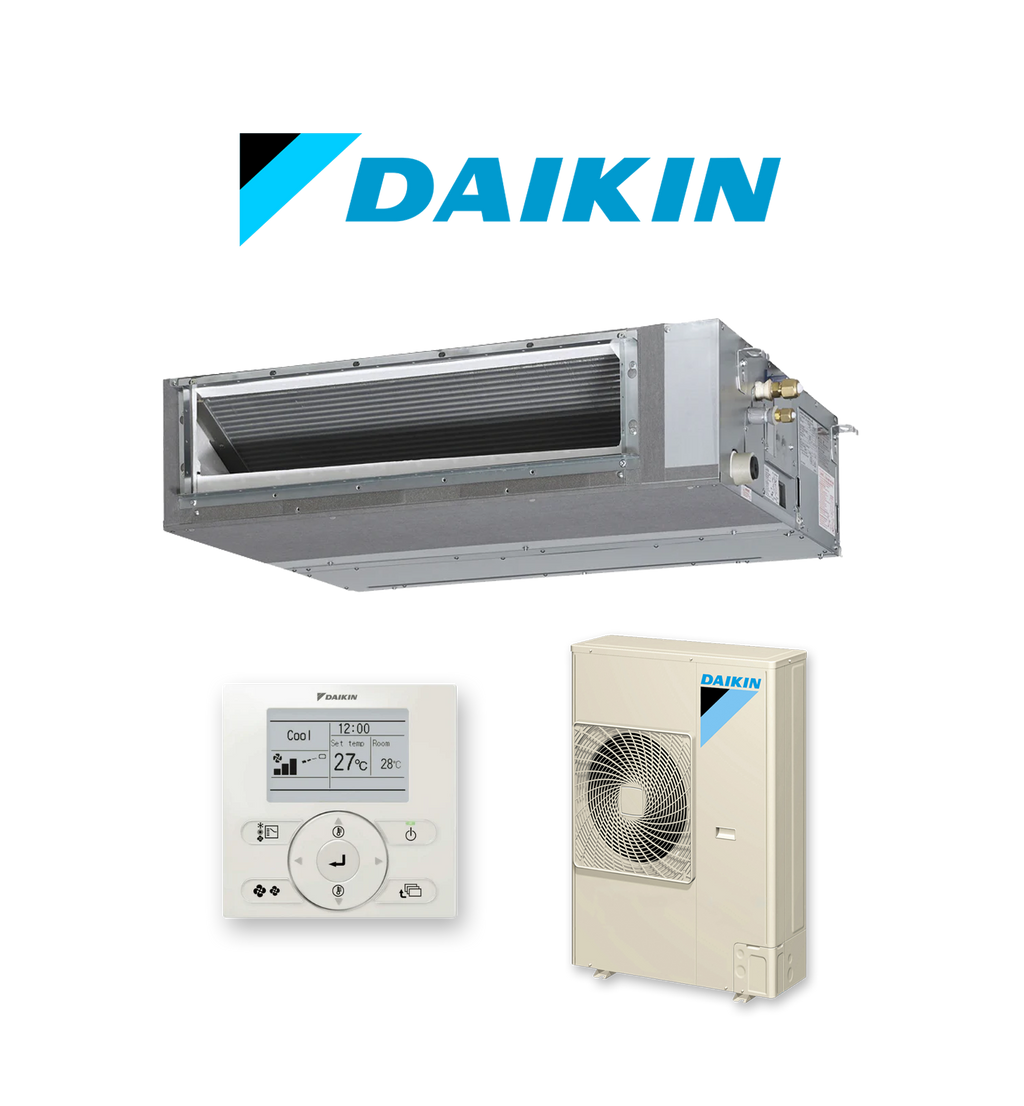

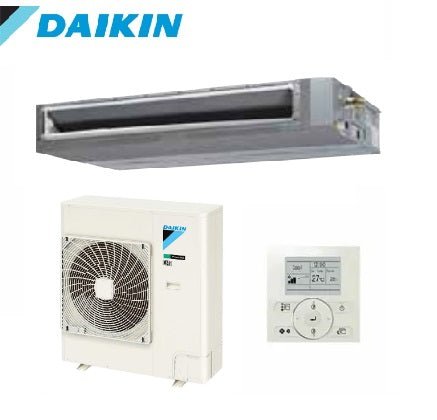

DAIKIN FBA125B-VF2V 12.5kW Premium Inverter Slimline Ducted System | 1 Phase

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian Stock
No Factory Seconds
Full Australian Manufacturer’s Warranty
Authorized Genuine Dealer
Secure Online Payments
Specifications
FBA125B-VF2V
Specification
FBA125BVMA

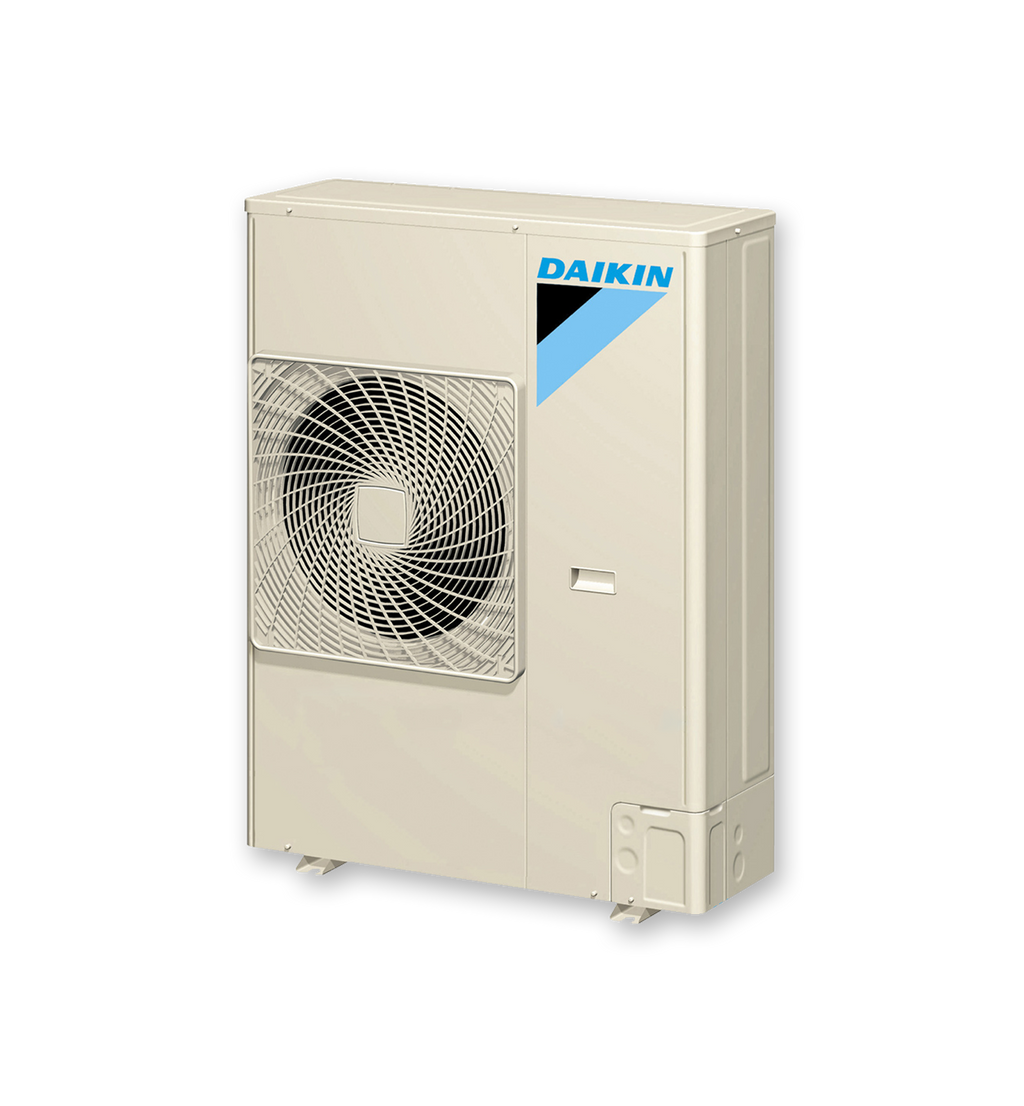

Outdoor Unit
RZAV125F2V1
Rated Cooling Capacity (kW)
12.5
Rated Heating Capacity (kW)
15.0
Capacity Range Cool (kW)
3.5-14.0
Capacity Range Heat (kW)
3.5-16.5
Power Input (Rated) Cool (kW)
3.68
Power Input (Rated) Heat (kW)
3.88
E.E.R / C.O.P (C/H)
3.40 / 3.87
T.C.S.P.F (Residential) Hot/Average/Cold
5.03 / 4.62 / 4.76
H.S.P.F (Residential) Hot/Average/Cold
5.32 / 4.49 / 3.88
Airflow Rate (Nominal) (l/s)
600
Indoor Sound Level (H) @1.5m (dBA)
40
Piping Length (m)
50
Indoor Fan Speeds
H/M/L
Indoor Dimensions (H x W x D) (mm)
245 x 1400 x 800
Outdoor Dimensions (H x W x D) (mm)
990 x 940 x 320
Indoor Weight (kg)
47
Outdoor Weight (kg)
95
Power Supply
1 Phase, 220-240V, 50Hz
Compressor Type
Hermetically Sealed Swing Type
Refrigerant
R32
Pipe Sizes Liquid (mm)
6.4 (Flared)
Pipe Sizes Gas (mm)
12.7 (Flared)
Pipe Sizes Drain (mm)
ID 25 / OD 32
Supply Air Opening (mm HxW, Flange)
176 x 1192
Return Air Opening (mm HxW, Flange)
208 x 1352
Outdoor Operating Range Cool (ºCDB)
-5 to 46
Outdoor Operating Range Heat (ºCWB)
-15 to 16
EPA Sound Power Level (dBA)
69
Outdoor Sound Level (H) @1m Pressure (dBA)
50 / 51
