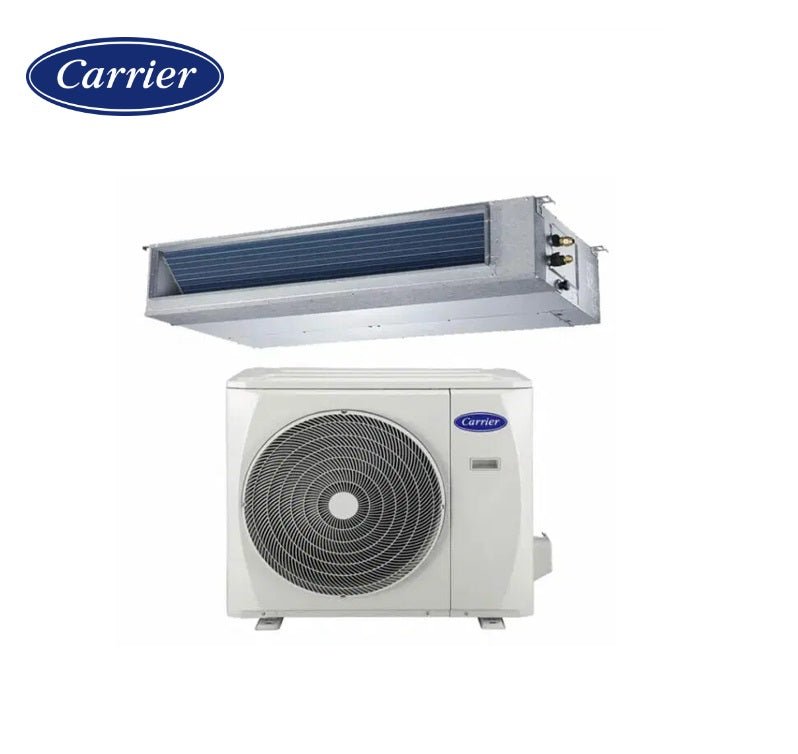

Carrier 42QSM105D8S / 38QSM105D8S 10.2kW Inverter Slim Ducted System

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian Stock
No Factory Seconds
Full Australian Manufacturer’s Warranty
Authorized Genuine Dealer
Secure Online Payments
Specifications
INDOOR
42QSM105D8S
OUTDOOR
38QSM105D8S
Refrigerant type
R32
Power supply (Volts-Phase-Hz)
220-240V

/1/50Hz




COOLING
Capacity – rated
kW
10.15
Capacity – range (min

~ max)


kW


2.95 ~ 12.05
Efficiency (rated)
EER
3.14
Operating current (rated)


A


13.79




HEATING
Capacity – rated
kW
10.87
Capacity – range (min

~ max)


kW


2.43 ~12.82
Efficiency (rated)
COP
3.79
Operating current (rated)


A


12.40



INDOOR UNIT
Dimension (WxDxH)
mm
1360x774x249
Net weight
kg
39.9
Airflow volume (H/M/L)


m3/h


2213/1761/1173
ESP Rated / max
Pa
37 / 160





OUTDOOR UNIT
Dimension (WxDxH)
mm
946x410x810
Net weight
kg
70
Operating noise (sound power) (H)
dBA (@ swl)


67
Cooling usable temperature range
˚C
0~50
Heating usable temperature range
˚C
-20~24






PIPE SIZE
Liquid line Ø
(mm)
9.52
Gas line Ø
(mm)
15.9
Coupler style
–
flare
Drain (inside diameter) Ø


mm


21
Maximum length
m
75
Chargeless length
m
15
Maximum height difference


m


30
