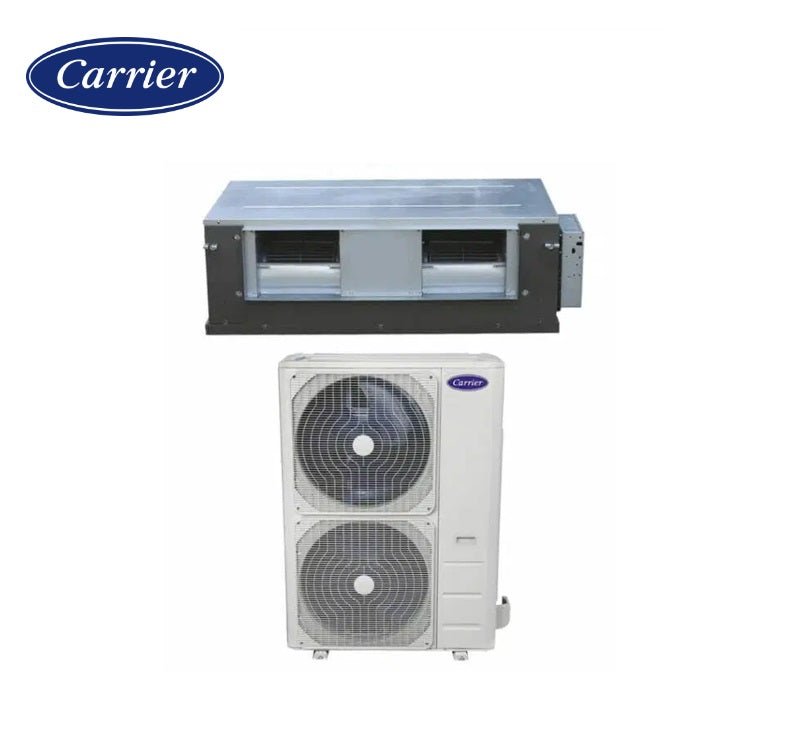

Carrier 42QSH170D8S / 38QSH170D8S 16.2kW Inverter High Static Ducted Air Conditioner

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian Stock
No Factory Seconds
Full Australian Manufacturer’s Warranty
Authorized Genuine Dealer
Secure Online Payments
Specifications
INDOOR
42QSH170D8S
OUTDOOR
38QSH170D8S
Refrigerant type
R32
Power supply (Volts-Phase-Hz)
220-240V /1 /50Hz
Max input current
A
31
COOLING
Capacity – rated
kW
16.2
Capacity – range (min max)
kW
3.52 – 20.80
Efficiency (rated)
EER
3.29
Operating current (rated)
A
22.5
HEATING
Capacity – rated
kW
17
Capacity – range (min max)
kW
2.93 ~ 21.10
Efficiency (rated)
COP
3.91
Operating current (rated)
A
19.5
INDOOR UNIT
Dimension (WxDxH)
mm
1400x858x440
Net weight
kg
81.1
Airflow volume (H/M/L)
l/s
1056/833/635
ESP Rated / max
pa
50/200
Air inlet duct flange
mm
1188 / 385
Air outlet duct flange
mm
1188 / 385
OUTDOOR UNIT
Dimension (WxDxH)
mm
952x415x1333
Net weight
kg
97.7
Operating noise (sound power) (H)
dBA (@ swl)
71
Cooling usable temperature range
oc
0 – 50
Heating usable temperature range
oc
 -20 – 24
PIPE SIZE
Liquid line Ø
(m m)
9.52
Gas line Ø
(m m)
19
Coupler style
–
flare
Drain (inside diameter) Ø
mm
21
Maximum length
m
75
Pre-charged length
m
15
Maximum height difference
m
30
Description
Indoor – 42QSH170D8SOutdoor – 38QSH170D8S (Includes Wired Controller)
