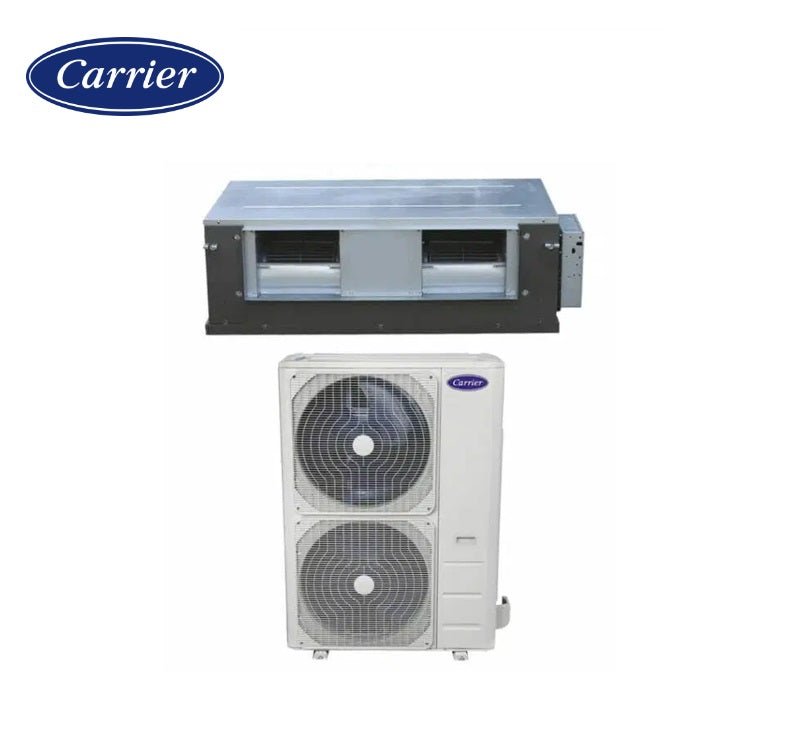

Carrier 42QSH090D8S / 38QSH090D8S 8.6kW Inverter High Static Ducted Air Conditioner

Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer’s Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock – never a factory second in sight!
Shop with Confidence
Brand new Australian Stock
No Factory Seconds
Full Australian Manufacturer’s Warranty
Authorized Genuine Dealer
Secure Online Payments
Specifications
INDOOR
42QSH090D8S
OUTDOOR
38QSH090D8S
Refrigerant type
R32
Power supply (Volts-Phase-Hz)
220-240V /1/50Hz




COOLING
Capacity – rated
kW
8.60
Capacity – range (min ~ max)
kW
2.40 ~ 11.70
Efficiency (rated)
EER
3.37
Operating current (rated)
A
11.07




HEATING
Capacity – rated
kW
9.14
Capacity – range (min ~ max)
kW
2.09 ~ 12.49
Efficiency (rated)
COP
3.94
Operating current (rated)
A
10.10



INDOOR UNIT
Dimension (WxDxH)
mm
1200x625x380
Net weight
kg
54
Airflow volume (H/M/L)
m3/h
2357/1753/1198
ESP Rated / max
Pa
37 / 200





OUTDOOR UNIT
Dimension (WxDxH)
mm
946x410x810
Net weight
kg
70
Operating noise (sound power) (H)
dBA (@swl)


67
Cooling usable temperature range
˚C
0~50
Heating usable temperature range
˚C
-20~24







PIPE SIZE
Liquid line Ø
(mm)
9.52
Gas line Ø
(mm)
15.9
Coupler style
–
flare
Drain (inside diameter) Ø
mm
21
Maximum length
m
75
Chargeless length
m
15
Maximum height difference
m
30
Description
Indoor – 42QSH090D8SOutdoor – 38QSH090D8S(Includes Wired Controller)
